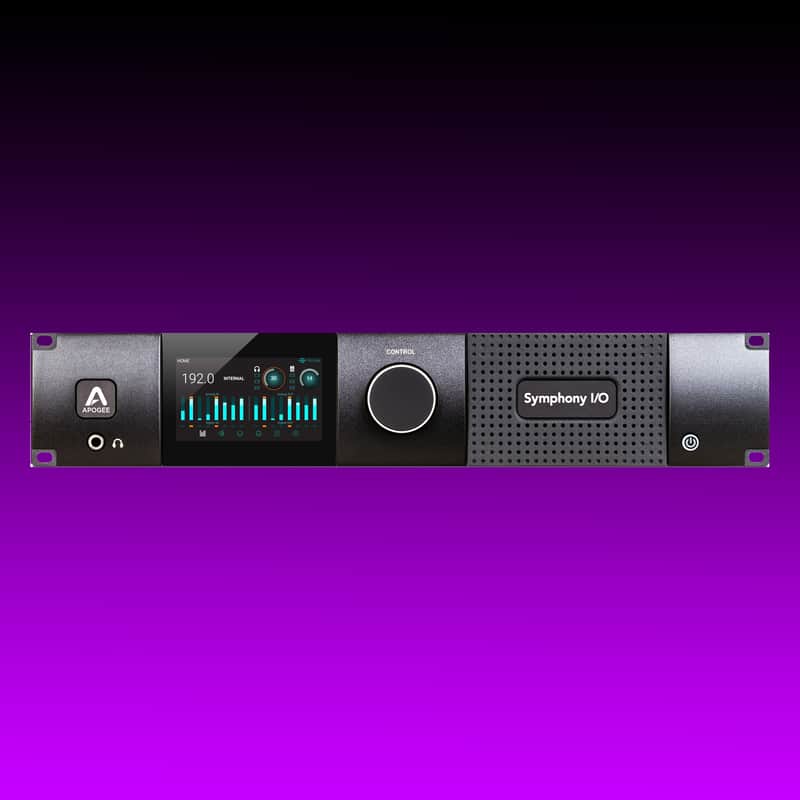

Apogee Symphony I/O MK II 8x8+MP Thunderbolt Audio Interface • Authorized Dealer • FREE S/H
Brand new in the box. Feel free to contact us with any questions!
Night Sky Sound has been using Apogee interfaces for more than 20 years. Let our knowledge base on these amazing products get you the most out of your purchase.

Why buy from us?

Night Sky Sound. A higher standard:

√ FAST FREE SHIPPING!
√ DOUBLE WARRANTY!
√ 30 years of industry backed product knowledge.
√ Authorized service for many lines.
√ We are an Independent dealer. Help support small business and indy dealers.


BUY WITH CONFIDENCE.
THANK YOU FOR SUPPORTING US INDEPENDENT DEALERS!

Product Description:
INPUTS
  • Analog Inputs
    • 8 built-in mic preamps
    • Digitally controlled, 85dB microphone preamps
    • 4 Hi-Z 1/4” instrument inputs capable of handling high level instruments
    • Selectable 48v phantom power, Soft Limit and phase invert
    • 8 balanced inputs on 1 DSUB 25-pin connector

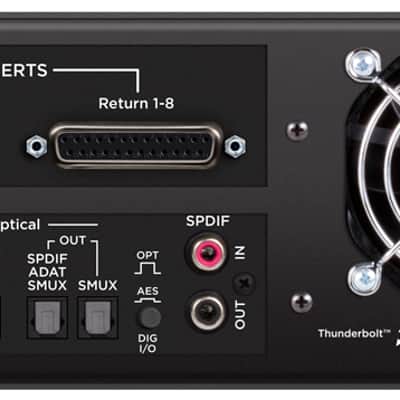

  • Inserts
    • 8 balanced software assignable analog insert points
    • Return 1-8 on 1 DSUB 25-pin connector
  • Digital Inputs
    • *AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector
    • *Optical IN: Supports ADAT, SMUX & S/PDIF
      • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
      • SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
      • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
    • Coax IN: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
OUTPUTS
  • Analog Outputs
    • 8 balanced outputs on 1 DSUB 25-pin connector
  • Inserts
    • 8 balanced software assignable analog insert points
    • Send 1-8 on 1 DSUB 25-pin connector
  • Digital Outputs
    • *AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
    • *Optical OUT: Supports ADAT, SMUX & S/PDIF
      • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
      • SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
      • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
    • Coax OUT: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector

*Dig I/O hardware switch selects AES or Optical digital I/O format


Connection:

  • Thunderbolt cable (Sold separately)

Performance:

  • 44.1kHz – 192kHz
  • Latency: 1.35 ms with Logic Pro X (96 kHz / 32 buffer)

Computer:

  • Thunderbolt-enabled Mac computer, including Mac Pro, MacBook Pro, Mac mini, iMac & MacBook Air
  • Operating System: Mac OS 10.9.5 or greater

Control:

  • Maestro app (included in software installer) and front panel touchscreen

Compatible Software:

  • Logic Pro X
  • Any Core Audio application on Mac

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • Symphony I/O MKII 8x8+8MP Thunderbolt Audio Interface
Finish
  • Black
Categories
Year
  • 2010s
Sample Rate
  • 192 khz
Bus-Powered
  • No
Digital Input Format
  • AES/EBU
  • S/PIDF
  • ADAT/Optical
Electronics
  • Digital
  • Analog
  • Solid State
Digital Output Format
  • ADAT/Optical
  • AES/EBU
  • S/PIDF
Compatibility
  • macOS
Bit Depth
  • 24-bit
Computer Connectivity
  • Thunderbolt
Format
  • 19-inch Rackmount
Simultaneous I/O
  • 16 x 16
Number of Digital Outputs
  • 18
Number of Digital Inputs
  • 18
Number of Analog Inputs
  • 8
Number of Channels
  • 32
Number of Headphone Outputs
  • 1
Number of MIDI Outputs
  • 0
Number of MIDI Inputs
  • 0
Number of Analog Outputs
  • 8
Number of Mic Preamps
  • 8
