Joe Gagan WAH drop-in kit for dunlop, preMODDED/truebypass, LED version

incredible mod kit for dunlop wah !

This one has LED built in.

buy it, try it ~~find out why over ONE MILLION * buyers have LOVED this kit since the 2013 launch.

our best mods in a full drop-in harness, all you do is swap your guts and you are in wah wah heaven.

NOW, no soldering or wondering if you are doing the mods correctly.
we put the basic ' tone essentials' into one easy to install package.

features:
-dunlop red fasel inductor , specially revoiced for fatter tone and better harmonics. Reinforced mounting ( top and bottom), reduced microphonics. (differs from photos)

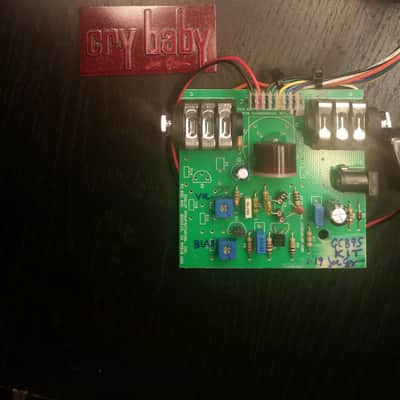

-all new parts, except recycled/tested PCB with the 3 jacks.

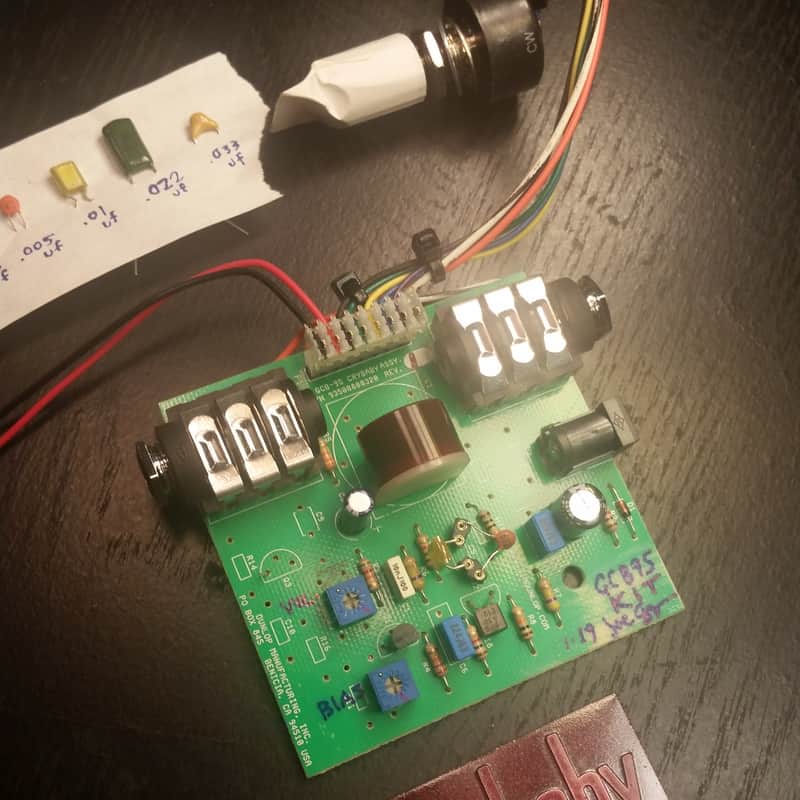

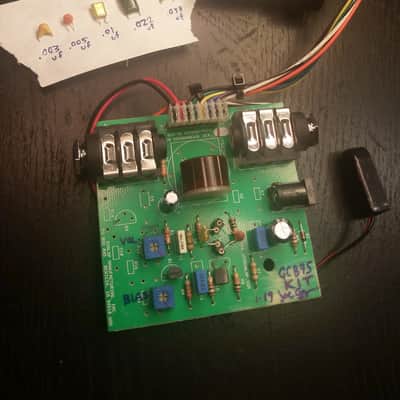

 -tru-bypass wire carefully woven into the stock harness, looks like dunlop made it this way. Our new switch wiring includes grounded wah input in bypass for reduced popping possibility ( as with all hardwire bypass, some slight pop may occur in certain situations ).

-mini 3pdt bypass switch, the best quality we've found for wah.
-dunlop hotpotz, the most durable wah pot in history.(some kits may be shipped with the post-2018 square body "new style" hotpotz as seen in mini crybaby and others)

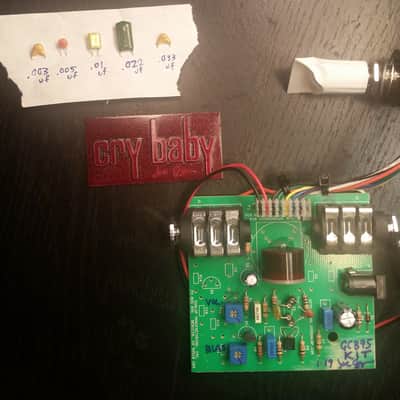

-special ' two per side" sockets allow flexible tuning, taking the voice deeper or higher, included are multiple extra caps to give the range of the dunlop bass wah, jerry cantrell, 535Q, slash, zakk wylde, etc etc. you can re-voice the sweep, very easy!
for buyers - see note on using the cap kit below*

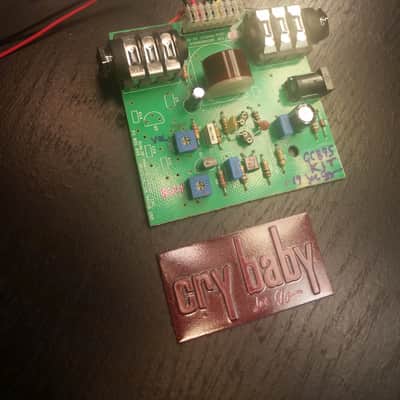

new! special front badge- hand signed by gagan & colorized, to let the world know this is no 'normal' crybaby. 2-sided tape applied.

-buffer is removed, not needed with our bypass circuit. gets the sound back to its original 60s unbuffered 'pure' wah tone. people are amazed at the reduced hiss and 'bigger' wah tone.

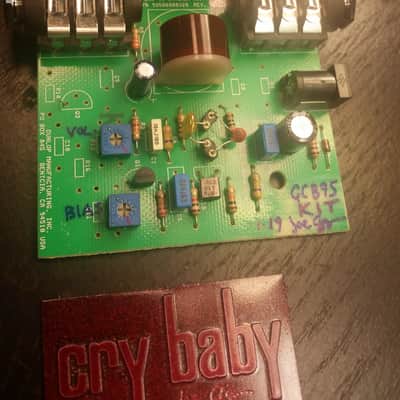

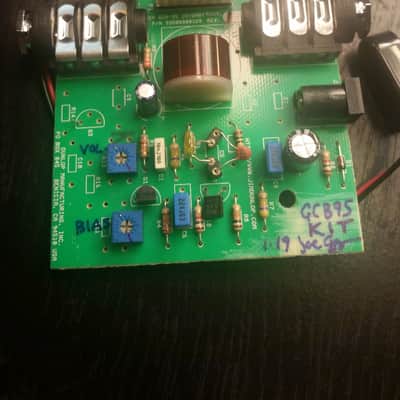

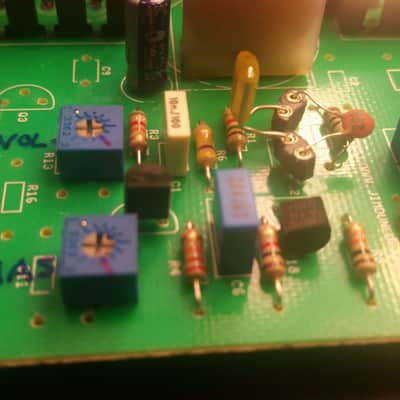

 WOW! TWO trimmers for great tuning ability!

- bias trim, First transistor can be re-biased HOTTER for those growly tones - all tune-able in tandem with the input volume - as little or as much growl as you want.
-input volume trimmer for volume matching and HOTrodded wah tones!

- special online instructions and tech help by phone or reverb message system.

BOTTOM LINE - GET BOUTIQUE TYPE TONE AT A VERY SWEET PRICE. NO SOLDERING.
! ~~ you must drill a 1/8" or 3mm hole in front of switch if you would like to see the LED shining.

fits all dunlop wahs with the board mounted jacks, plus many others :

VOX! this kit will fit '80s, '90s, '2000s dunlop made vox v847s, we have successfully done this for our customers.
you have two options:
1. YOU CAN ADD the power supply HOLE to use the standard on-board power jack--- when ordering just let us know, we have special instructions for these. we supply a drilling template, you simply have to drill one 5/16" hole, instructions included. or,
2. if you prefer you can leave the wah with no hole, the power jack will still be on board but is not affected if not accessed, and the PCB still fits fine.

chinese voxes, v845 , v847a from 2006 and newer: (additional $15 install kit / tech assist required, message at time of checkout to receive separate invoice for this option) special instructions apply, not recommended unless you have advanced shop skills. drilling and other modding required.

no risk trial, return for a full refund less shipping. no hard feelings, we do not want you to keep it if you don't LOVE it. even if you've installed it, we accept returns , as long as nothing is wrecked.

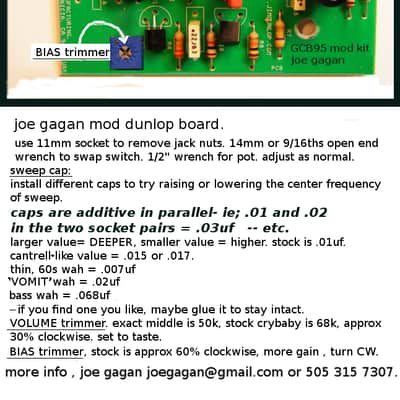

*notes on the caps,-- remember, caps are additive in parallel, so for example if you put two .01ufs in the sockets you get .02uf and so on. you will find a nice assortment of caps , you can mix & match for many different values. stock crybaby is .01uf, jerry cantell wah is .022uf, bass wah is .068 uf and so on., some boutique wah makers like .015uf to 018uf for a deeper bottom without being too woofy, and for a cool 70s wacka wacka funk , try a .007uf in there - very nice!

below are some of the comments we have received - thanks to all of you!:

"Amazing mod best wah ive owned drops straight in and ready highly recommended :) " -- passenger***

" The drop in kit is so easy and sounds awesome. It has replaced my keeley." -- m*cm**ce

"Does amazing work, good communication and friendly. Don't buy from anywhere else" - metalhelper ( rewire of customer's wah)

"best thing I ever bought" -agent862XXXX - buyer of the drop in wah kit-

"great service, thanks" - onemorerebel - buyer of the drop in wah kit-

"Absolutely fantastic! The mod sounds awesome!" -- jdrag***, purchased april 2014

"Brilliant product, drop in upgrade, sounds fantastic, easy to fit and mod" -- ba***, purchased august 2014

SPECIAL NOTE::: we pride ourselves on our customer service, please read the many great notes in our feedback.
we are 100% here for you to make sure your install goes smoothly.

PLEASE NOTE - the PCB in the kit you receive may be green or tan.

*one million is a bit exaggerated. Hope you have a sense of humor. It’s more like 650+ happy buyers. Maybe half a million will one day enjoy this lovely, powerful wah kit.
