G-Storm Electro 2xADSR Dual Envelope DIY Panel/PCB
This gear has sold
See similar gear from other Reverb sellers
Our users rate Reverb

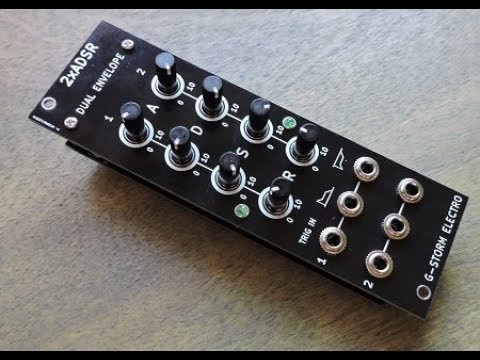

2xADSR is a dual envelope module in 8HP Eurorack format. Each envelope is an independent Attack-Decay-Sustain-Release linear contour. Each envelope takes a gate input, puts out a positive-voltage contour and a buffered negative-voltage (DC inverted) contour.

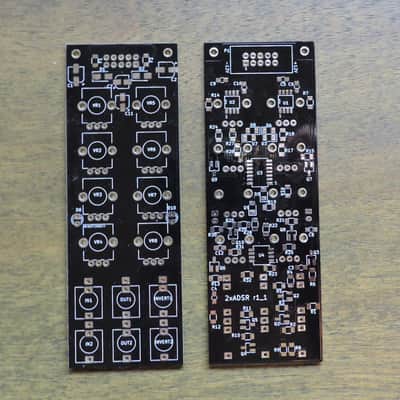

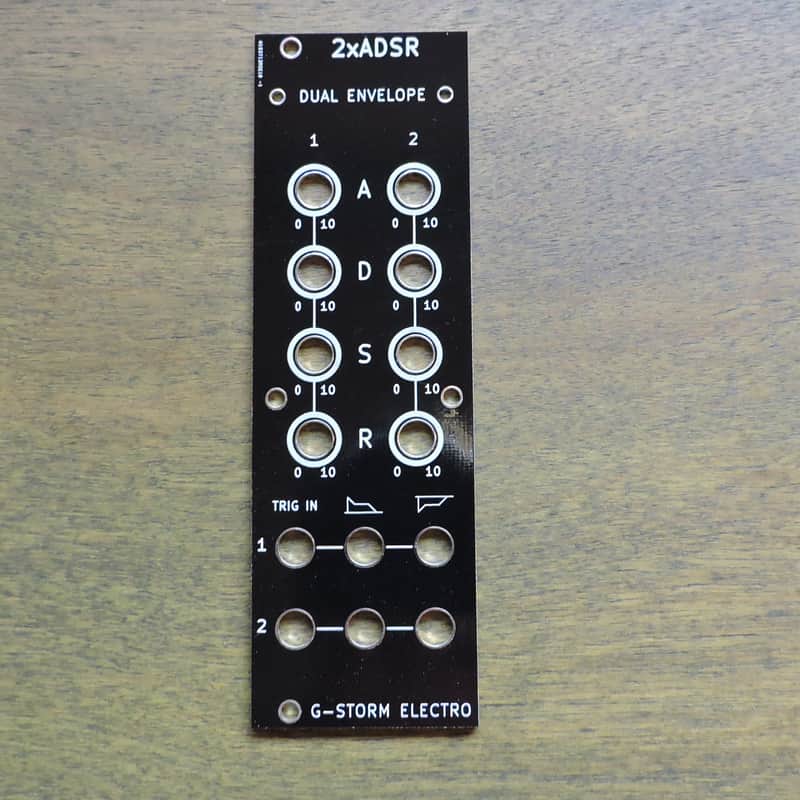

This is a DIY project, just a pcb/panel only, with surface-mount soldering required. You supply the parts components (not included), but it uses all very affordable and easy-to-find parts. I would not recommend this as your very first SMT build, maybe your 2nd or 3rd SMT build though. The BOM and Schematics for this project will be coordinated on muffwiggler, just search "2xADSR"
International Buyers - if you're ordering more than 1 PCB/Panel set save money! Please send me a message/offer to negotiate adjusted shipping. Generally it costs the same to ship 2 or 3 sets as it does to ship 1 set.
Module Depth: 22mm
Current Measurements:16mA/+12V, 2mA-12V, 0mA/+5V (not used)
