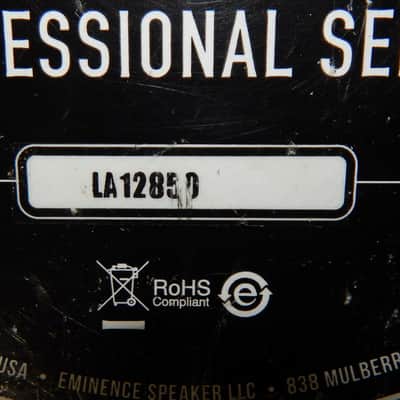

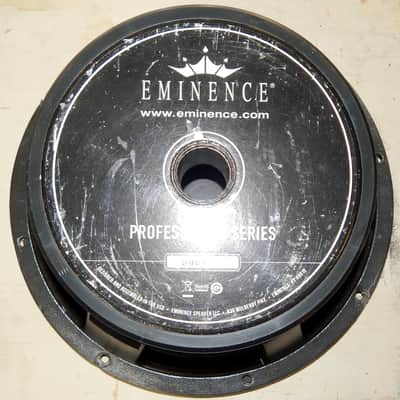

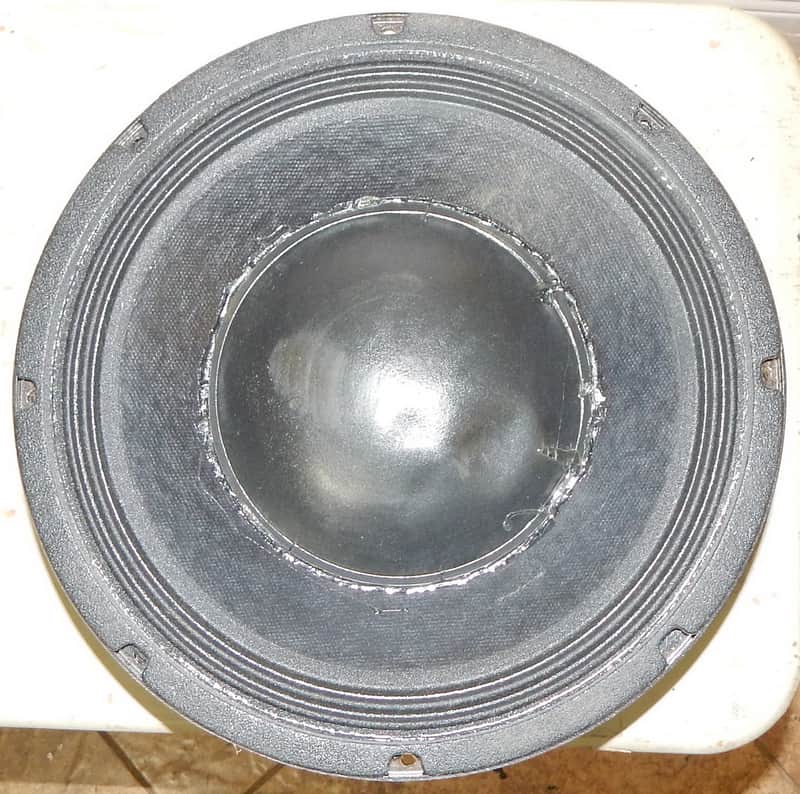

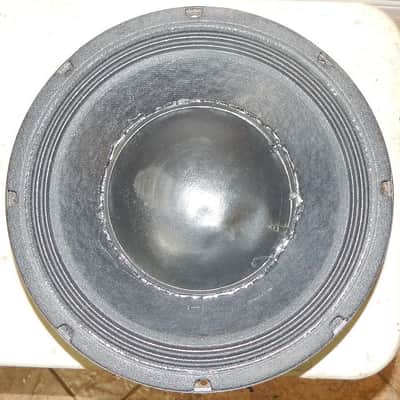

Eminence LA12850 12" high power woofer mid-bass speaker
This seller has not set a shipping cost for Hungary. Please contact them to ask about shipping.
Our users rate Reverb

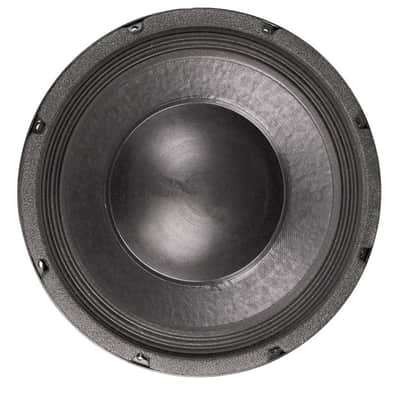

Eminence LA12850 12" Professional Woofer 8 Ohm
Providing clean low mids and tight punchy bass, Eminence's 800 watt 12” LA12850 woofer features a shallow, cast aluminum frame and a Thiele-Small parameter set that allows it to work in ultra-compact vented systems.
Very tight packaging for line arrays, or other systems where overall depth is limited, is enabled by a mounting depth that measures less than 5". The LA12850’s super-stiff paper cone is driven by a 4" voice coil and a powerful vented ceramic motor assembly.
Product Specifications
- Nominal Diameter12"
- Power Handling (RMS)800 Watts
- Power Handling (max)1,600 Watts
- Impedance8 ohms
- Frequency Response63 to 2,100 Hz
- Sensitivity95.9 dB 2.83V/1m
- Voice Coil Diameter4"
- Magnet Weight109 oz.
- Resonant Frequency (Fs)46 Hz
- DC Resistance (Re)5.87 ohms
- Voice Coil Inductance (Le)0.96 mH
- Mechanical Q (Qms)12.73
- Electromagnetic Q (Qes)0.32
- Total Q (Qts)0.32
- Compliance Equivalent Volume (Vas)2.33 ft.³
- BL Product (BL)19.51 Tm
- Diaphragm Mass Inc. Airload (Mms)73g
- Maximum Linear Excursion (Xmax)5 mm
- Surface Area of Cone (Sd)545.4 cm²
- Cone MaterialTreated Paper
- Surround MaterialCloth
- Voice Coil Wire MaterialCopper
- Voice Coil FormerKapton® / Polyimide
- Basket / Frame MaterialCast Aluminum
- Magnet MaterialFerrite
- Overall Outside Diameter12.32"
- Baffle Cutout Diameter11.08"
- Depth4.70"
- Bolt Circle Diameter11.69"
- # Mounting Holes8
- Sealed Volume0.42 ft.³
- Sealed F3117 Hz
- Vented Volume1.1 ft.³
- Vented F374 Hz
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | 8 years ago |
|---|---|
| Condition | Fair (Used) Fair condition gear should function but will show noticeable cosmetic damage or other issues.Learn more |
