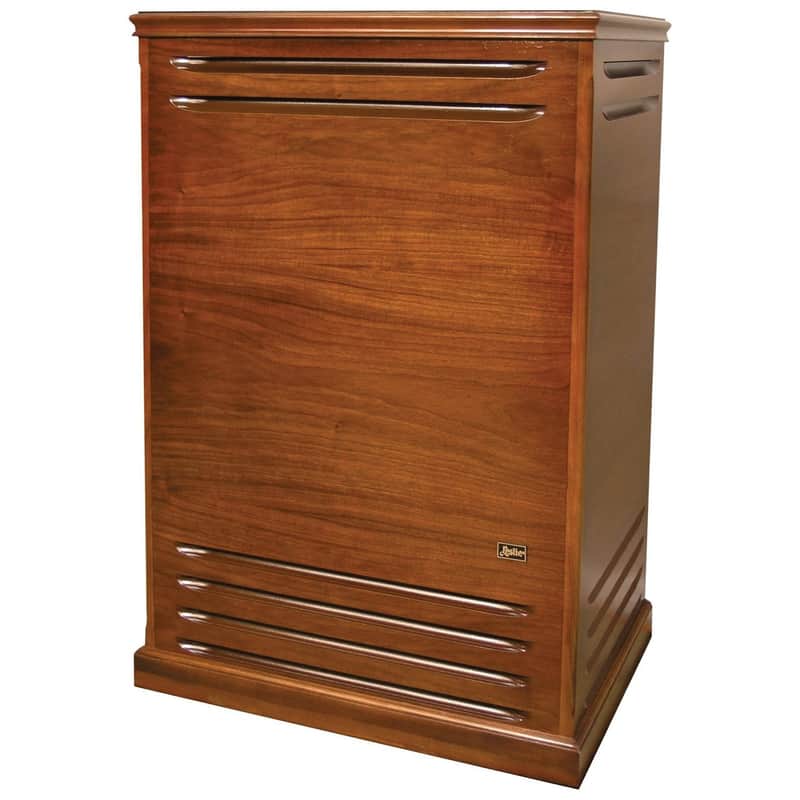

Leslie 122XB Rotary Speaker Combo Amplifier - Red Walnut

The Classic Leslie 122XB Speaker, made to Don Leslie’s “Original Recipe”, same as it has been since 1941. This two-speed speaker uses a traditional tube amplifier with a heavy duty driver in the horn and special design 15” woofer for the bass rotor. Connections are made via the 11-pin plug found on all modern Hammonds, and certain clones. For older Hammond models, adapter kits are available. This optional interface panel is available with a ¼” “guitar cord” input, and a jack for a footswitch; thus eliminating the need for a bulky cable and “preamp box”.

Leslie 122XB Features & Specs

• Single-Channel Input: Designed for single-channel organs whose pedal range extends down to the lower frequencies
• Two-speed horn and bass rotor: The sound is “seperated” with the highs reproduced by a horn rotor and the lows reproduced by a bass rotor. Both the horn and bass rotors can be operated at two speeds: Fast (tremolo) and Slow (chorale)
• Amplifier: Handcrafted 40-Watt RMS vacuum tube amplifier
• Speakers: Massive 15″ woofer, High power horn driver
• Inputs: 11-pin Leslie connector (standard), ¼” line input jack and foot switch jack (available with optional Leslie Interface Panel)
• Controls: Master volume and Power On/Off switch
• Dimensions: 29 1/4″(W) x 20 5/8″(D) x 41 5/8″(H)
• Weight: 149 lbs
