Motu Track16 W/ Audio Desk

Listing Sold
Shipped From
Matthew's Shop
Clovis, CA, United States

About This Listing

RELIST: wasn't able to contact buyer before

Selling my Motu Track16 because I got a new interface I took great care of it still looks mint was in a smoke free studio. Sounds great and is very sturdy. It looks brand new and all cables, the manual, and disc is included.

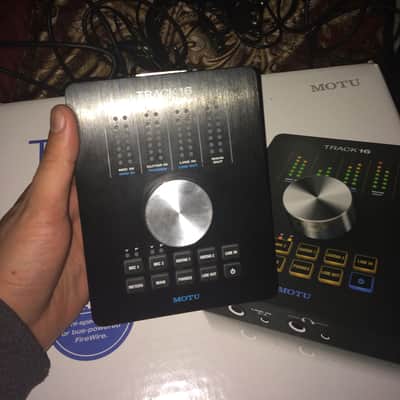

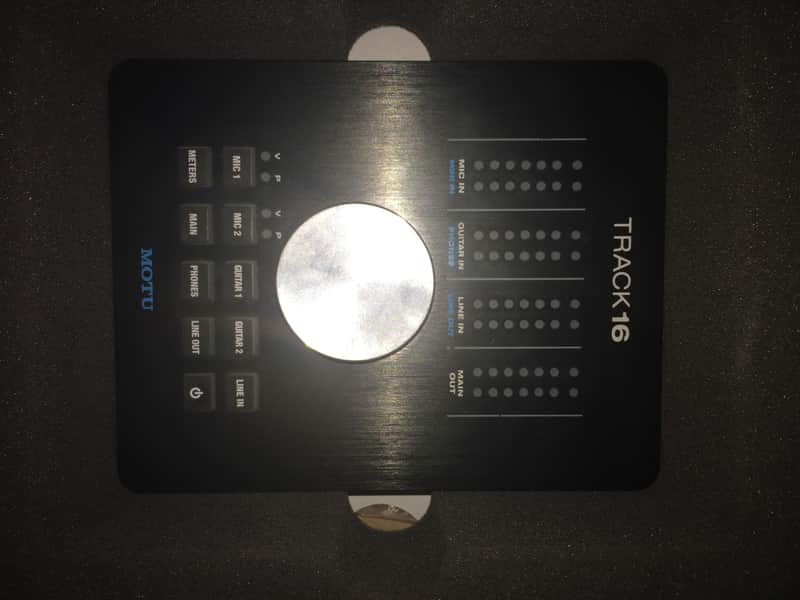

MOTU Track16

Simple operation. Clean design. Studio-grade sound quality. Track16 exhibits these design principles through and through. And don't let its compact size deceive you. There's plenty of I/O available for a well-equipped personal studio, ready for multi-player recording sessions. Track16's pristine mic preamps, balanced line-level audio connections, and renowned MOTU engineering deliver world-class audio quality.

An astonishing array of inputs and outputs
Record two mics, two guitars, a keyboard, a sound module, and eight optical channels simultaneously

How can such a compact unit offer 16 channels of input and 14 channels of output, simultaneously, with mixing? The short answer: Track16 truly is an engineering achievement, packing the same quantity and quality of audio channels as other interfaces that cost hundreds more.

Two mic inputs with individual preamps
Record two separate mics or a matched pair
Track16's mic inputs are equipped with pristine, transparent preamps and offer individually adjustable 48V phantom power and -20 dB pad. All settings can be adjusted directly using the MIC 1 and MIC 2 buttons, or from Track16's CueMix software running on your computer. Mic inputs can be operated individually or in stereo pairs, as needed.

Two guitar inputs
Hi-Z guitar inputs deliver true guitar sound
Without proper impedance levels, direct "DI" guitar input won't sound right when you run it through your guitar amp plug-ins and virtual stomp boxes. Track16's two guitar jacks provide high-impedance load characteristics suitable for passive and active pickups alike, to deliver proper guitar tone to your host software. For even more authentic feel and response when using virtual guitar amp and cabinet plug-ins, use a ZBox guitar impedance adapter.

Two pairs of line inputs
Connect a keyboard and your iPad
Track16 analog inputs are designed to be flexible, so that you can address a wide range of recording situations. The balanced quarter-inch line inputs provide proper level matching for keyboards, analog mixers, effects processors, or other gear with either -10 dB or +4 dB reference level input. The stereo eighth-inch "mini" input is great for an iPad or other consumer devices.

Main outs and line outs
Four analog outputs
Connect a pair of powered studio monitors to the main outs. The line outs can be used for a variety of purposes, either mirroring the main outs (perhaps for a 2nd set of studio monitors) or acting as a completely independent output pair (for a separate mix going to a mixing board or stage wedges, for example). Because they can be programmed, the line outs offer tremendous flexibility.

Connect your MIDI gear directly
Track16 provides MIDI input and output featuring sample-accurate timing with supporting software. Connect a MIDI keyboard, sound module or control surface, and you are ready to go. The FireWire or USB connection to the computer carries both MIDI and audio so you don't need to connect an additional USB cable for MIDI.

Flexible power
Run Track16 bus-powered or stand-alone

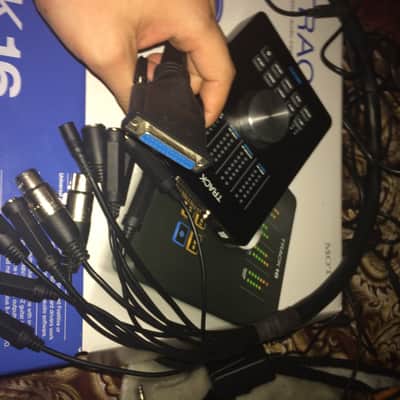

For mobile laptop operation, Track16 can run on bus power from its FireWire connection to the computer. For USB 2.0 or stand-alone operation (without a computer), simply connect the included power adapter to the power port on the breakout cable. Track16's custom-designed breakout cable provides ultimate shielding and protection. If you are using Track16's option breakout box, connect the power adapter to the breakout box, just like all the other breakout connections.

Two headphone jacks
Work with others, free from noise restrictions
Can't find your headphone adapter? No problem. Both quarter-inch and eighth-inch jacks are provided. Or connect two pairs of phones simultaneously. A second phone jack can be a life-saver when you need to finish the mix with your colleague in close proximity to neighbors or loved ones you don't want to disturb. The phones can mirror the main outs, with independent volume control, or they can mirror any other Track16 output pair.

Digitally controlled analog trim
Analog quality with digital precision
Track16's preamps deliver clean sound, 53 dB of gain, and adjustments in approximately 1 dB increments using the front-panel trims or the on-screen CueMix software. The gain adjustment itself is smooth, and the digital control gives you both precision and the ability to save and recall trim settings. So you get the best of both worlds: analog trim with digital precision and control. Trim is adjusted at the input, before the mixer, so it applies to all mixes. Mix levels are controlled separately from trim, so you never sacrifice sound quality for a balanced mix. The optical digital inputs can be trimmed, too.

Balanced line inputs and main outs
Protect your sound from environmental noise
Track16 balanced I/O connections are well-protected against RF interference, AC hum, and other noise-producing environmental factors.

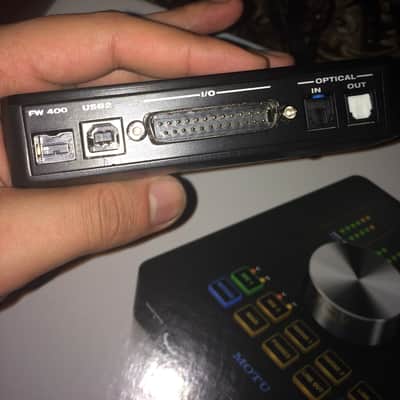

Digital input/output
Optical I/O in three standard formats
Digital transfers are an essential fact of daily studio life. Track16 supports all three industry standard optical formats: 8-channel ADAT (at 1x sample rates), 4-channel SMUX (at 2x sample rates),
and 2-channel TOSLink (optical S/PDIF) at standard sample rates up to 96 kHz.

Product Specs

Listed5 years ago
ConditionMint (Used)
Mint items are in essentially new original condition but have been opened or played.learn more
