Dragonfire Vintage Alnico PJ Bass Pickup Set ~ 4 String PJ Bass Passive A5 Pickups, 4S PJ Set, Black

Vintage AlNiCo PJ Bass Pickup Set ~ 1 Jazz Bass Bridge Pickup + 1 P Bass Split Precision Pickup Set
Matched 4 String PJ Bass Vintage Alnico Passive Pickup Set ~ Black Pickup Covers & Chrome Screw Color

Blend the benefits of the Jazz Bass Pickup with the P Bass Split Pickup for another level of performance. Layer your playing and explore the sound possibilities provided by this marriage of two great bass pickup styles.

The Dragonfire PJ Bass Pickups in this Vintage Alnico Passive Set are great for warm, round, vintage PJ-Bass performance and tone. Rich and dynamic, these excel in the mid-range while still allowing for extremely satisfying low-end forays and high-end response. Alnico 5 magnets and cloth wrapped wires mellow out your tone and help add a new dimension to your playing while flat-top pole pieces provide better balance and output across the strings. The eight-pole design on the single-coil J Bass Vintage Alnico Pickup and Split P Bass Vintage Alnico Pickups (4 each split) will work for your fretted or fretless 4-string bass. Wax potting on the pickups helps isolate sound and reduce feedback or other undesirable noise. These pickups produce roughly 6.3K output on the Jazz bridge pickup and 8.0K (approximate) output on the P pickups.

Softer and fuller than ceramic pups, these Alnico PJ pickups are great for most styles of bass play. The J Bass pickup comes wired with a colored (hot) wire and black (ground) wire. The precision-style pickups are single-coil split for two distinct pickups wound opposite from each other and come wired with a white (hot) wire and black (ground) wire plus red pickup connection wire (roughly 6” in length). This design allows for more even tonal capability and balanced sound along with reduced hum. This matched set is collaborative and the pickups will work in conjunction with one another for best possible performance. These are solid pups for big, substantial playing styles with the thickness and thump you need while still providing tons of versatility to push the boundaries of your play.

Bass pickup dimensions have varied over time so be sure to check your cavity and available space with the approximate measurements for these pickups provided below.

~~Product Details~~
*Vintage Alnico PJ-Bass Passive Pickups
*1 Vintage ALN Jazz Bass Bridge Pickup
*1 P Bass Split Precision Pickup Set
*4-String Bass Guitar Style (Fretted or Fretless)
*Flat Top Pole Style
*Alnico V Magnet Style
*Wax Potted Pickups
*Cloth-Wrapped Wires

~~Approximate Measurements~~
*Output: 6.3K (J Bass Bridge) & 8K (Split P Bass Pickups)
*Flat Top Polepiece Spacing: 58.5mm (J Bass Bridge) & 30.6mm (Split P Bass Pickups)
*P Bass Pickup Pad Measurements: 39.5mm x 18.2mm x 13.5mm
*J Bass Pickup Pad Measurements: 64mm x 14mm x 13mm
*Screw Dimensions: 4.2mm (Head Diameter) & 37.5mm (Length)
*Jazz Bass Bridge Pickup Dimensions
-Overall Pickup Length: 94.8mm
-Overall Pickup Width: 30mm (18.6mm excluding screw flanges)
-Overall Pickup Depth/Height: 23.6mm
-Bridge Pickup Screw Flange Spacing: 24mm x 40mm
*P Bass Split Pickup Dimensions
-Overall Pickup Length: 72mm (57mm excluding screw flanges)
-Overall Pickup Width: 27.6mm
-Overall Pickup Depth/Height: 14.4mm
-Pickup Screw Flange Spacing: 65mm
Measurements provided are approximations; variability is to be expected.

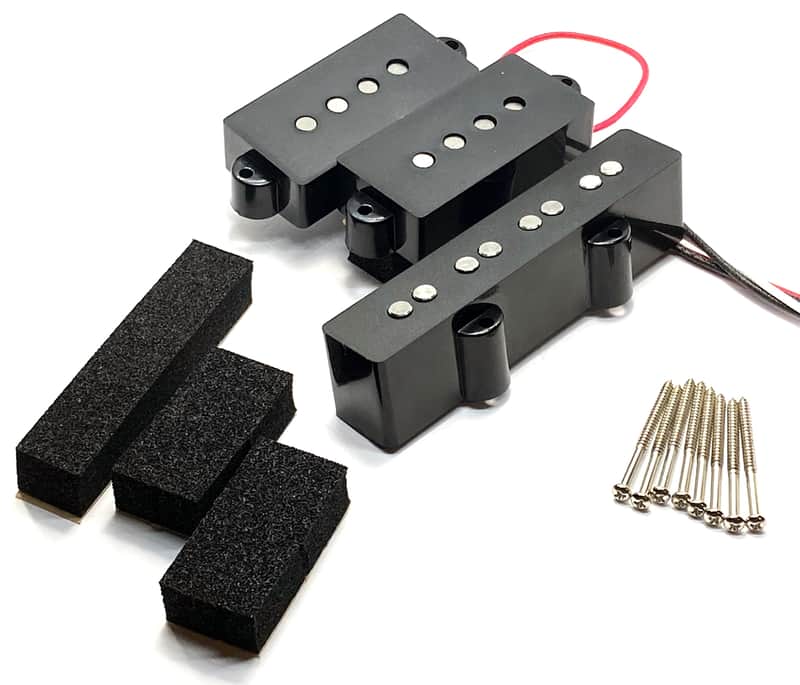

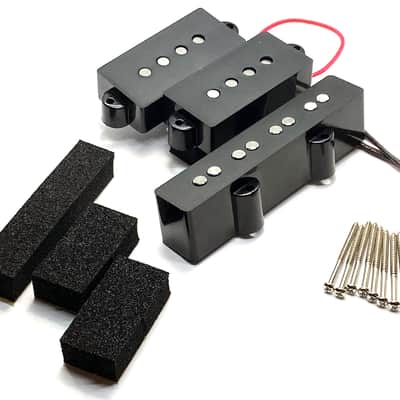

~~What’s Included~~
*1 Jazz Bass Bridge Pickup
*1 P Bass Split Pickup Set
*3 Foam Pickup Pads
*8 Pickup Mounting Screws
Nothing else is included. Any extra images are provided for additional reference and comparison purposes only.

~~Purchase Notes~~
Please ask any questions before you buy.

Buyers assume all risk of use; sales are only offered to those competent to safely and lawfully purchase and use items. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material.

Instructions for installation are not included. Due to the vast and varied nature of possible set-ups, we do not provide specific information or diagrams for installation. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations. If you require additional length, contact us prior to purchase to see if we can accommodate your needs. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.

Inspect your order upon receipt. We will address any issues PRIOR to installation. If everything is in order, simply install carefully to enjoy.
