AJH Synth MiniMod Dual LFO + VCA - 10HP (Black)
This piece of gear has sold
View similar gear from other sellers on Reverb
Watch this gear and we'll notify you if it becomes available again.

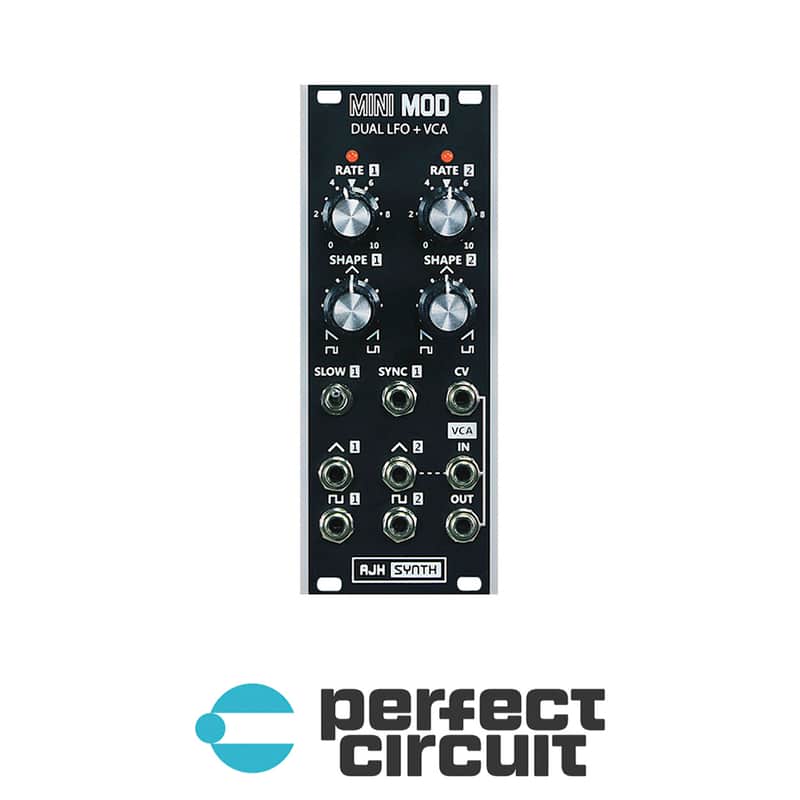

The MiniMod Dual LFO and VCA is a compact 10HP wide Eurorack format module. It comprises two independent LFO's with variable wave shapes and a DC coupled VCA. In addition LFO1 includes an extra low range and a Sync (reset) input.
The onboard VCA is normalized to the Triangle output of LFO 2 and this makes it a simple, one module solution for adding variable depth modulation to VCO's, VCF's etc. as the modulation amplitude (level) can be controlled by applying a control voltage (CV) of between 0 and +5 Volts to the VCA CV Input.
The VCA can also be used independently from the two onboard LFO's, and it responds to CV voltages in a linear manner.
The "Triangle" output wave shape can be continuously varied from Sawtooth (Shape control fully anti clockwise) to triangle (Shape control at 12 o'clock) through to Ramp (Shape control fully clockwise).
Features
- Dual LFO
- Built in utility VCA
- DC Coupled, works great with CV as well as audio
- Normalized Jacks for saving patch cables
- VCA can also be used independently
- LFOs have Ramp - Tri - Saw waveshaping
- Pulse width modulation
- LFO Sync input
