IGS Audio Panzer 500 - 10-slot 500-series module power supply
Price€840.95
Incl. VAT
Free Shipping
Free Shipping
from Rivas Vaciamadrid, Spain
Only 1 left
Grab it before it's gone
Listed:over a month ago
Views:3,674
Saves:72
Offers:18
Rivas Vaciamadrid, Spain
Our users rate Reverb
Brand new - Closed Box
We are IGS Audio distributors, among 100 other excellent brands. Note: For specific shipping rates outside Europe please message us before buying.
Note: We sell without taxes anywhere outside Europe and to valid VAT ID companies inside Europe. Please ask us your price without Tax in those cases.

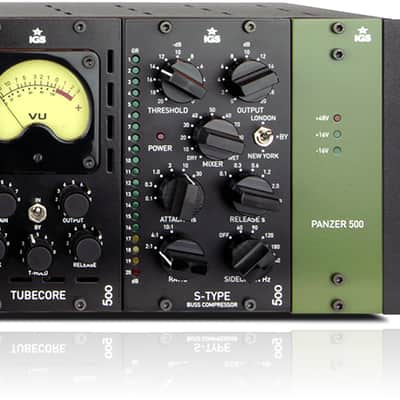

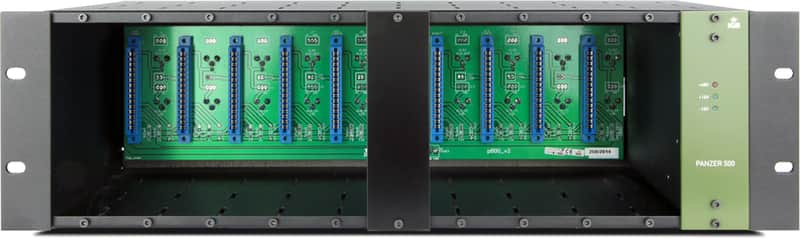

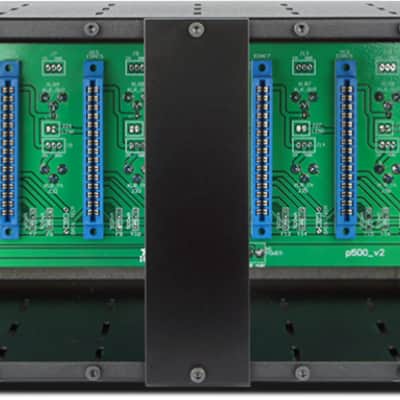

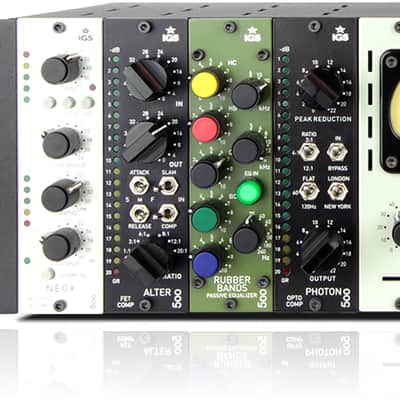

The IGS Panzer 500 is a 10-slot enclosure for 500-series modules. It will allow you to configure your favourite set of tools for studio or field recording, as well as small home recording setup. It doesn't matter if you're going to fill it up with your favourite microphone preamps, EQs or compressors. You can even add 500-series D/A-A/D converters to your set! In each situation, the Panzer 500 will deliver an efficient power source for your gear, protection and comfort of using either modern or vintage modules!
Extended possibilities.
The Panzer 500 comes with the external power supply unit (PSU). That allows us to minimize the power supply noise leaking into the signal path of your studio gear, but also to use bigger power transformer and exceed the standard API 500-series specification in terms of the output current. The Panzer 500 will provide up to 420 mA per slot, so it can be used even with the most "hungry" tube units, like our LA500 and Tubecore500 compressors.
SPECS
BASIC FEATURESStereo LinkYes (via PCB jumper)Number of slots10Current420mA per slot (200mA @ +16V, 200mA @ -16V, 20mA @ +48V)Overload and shortcut protectionYes, global and for individual slotINPUT & OUTPUTPhantom PowerYesFRONT PANELVoltage presence indicatorsYes, 3 x LEDPOWERVoltage115/230V, 60/50HzPower consumption160W max under heavy loadPower supplyexternal, linearPACKING BOXDimensions20x40x50 cmShipping weight8kg
We are IGS Audio distributors, among 100 other excellent brands. Note: For specific shipping rates outside Europe please message us before buying.
Note: We sell without taxes anywhere outside Europe and to valid VAT ID companies inside Europe. Please ask us your price without Tax in those cases.
Note 3: This product is custom ordered. Please allow 7/10 days for shipping.
The IGS Panzer 500 is a 10-slot enclosure for 500-series modules. It will allow you to configure your favourite set of tools for studio or field recording, as well as small home recording setup. It doesn't matter if you're going to fill it up with your favourite microphone preamps, EQs or compressors. You can even add 500-series D/A-A/D converters to your set! In each situation, the Panzer 500 will deliver an efficient power source for your gear, protection and comfort of using either modern or vintage modules!
Extended possibilities.
The Panzer 500 comes with the external power supply unit (PSU). That allows us to minimize the power supply noise leaking into the signal path of your studio gear, but also to use bigger power transformer and exceed the standard API 500-series specification in terms of the output current. The Panzer 500 will provide up to 420 mA per slot, so it can be used even with the most "hungry" tube units, like our LA500 and Tubecore500 compressors.
SPECS
BASIC FEATURESStereo LinkYes (via PCB jumper)Number of slots10Current420mA per slot (200mA @ +16V, 200mA @ -16V, 20mA @ +48V)Overload and shortcut protectionYes, global and for individual slotINPUT & OUTPUTPhantom PowerYesFRONT PANELVoltage presence indicatorsYes, 3 x LEDPOWERVoltage115/230V, 60/50HzPower consumption160W max under heavy loadPower supplyexternal, linearPACKING BOXDimensions20x40x50 cmShipping weight8kg
