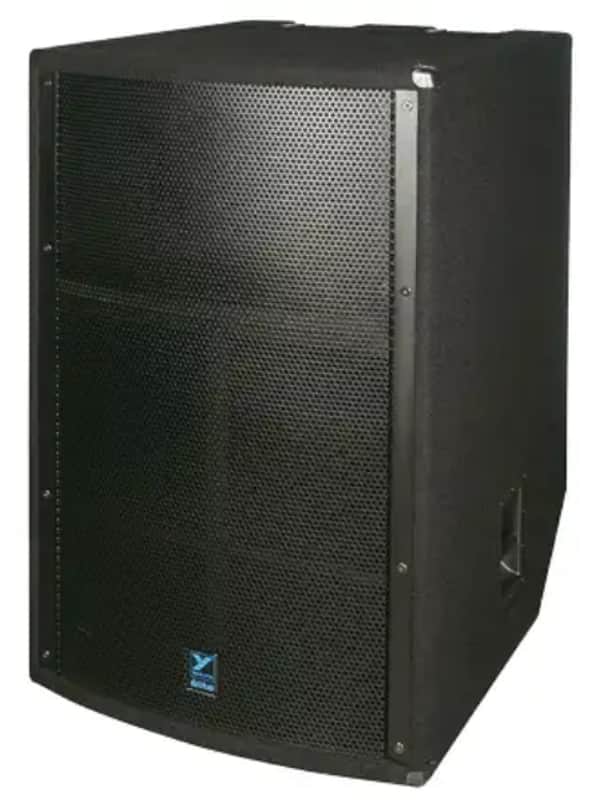

Yorkville LS1004
2000 watt subwoofer - 4 ohms - 1/18" horn loaded – wheels/handles – 15mm birch plywood/carpet

Overview
All élite subwoofers are suitable for touring or fixed installations. The enclosures are constructed of 15mm birch plywood with heavy
internal bracing for reduced resonance and better durability, and covered in black carpet covering. They incorporate metal corner
protectors, rugged curved anti-resonant metal grilles, and ¼" or Speakon™ input connectors. Additionally, the passive models feature Speakon™ connectors and a configuration switch that allows instant reversal of Speakon™ jack pinouts for easy single wire hook-up using optional four wire Speakon™ cables. All élite passive subwoofers (except LS608) now feature rear mounted wheels and handles for easy transport.

Additional research has developed a woofer with significantly higher power handling than any other speaker that we currently use, making the LS1004 one of the highest output subwoofers available at any price. Performance, packaging, and overall value make the LS1208 a benchmark.

Suitable for touring or fixed installations, the cabinets are constructed of 15mm 11-ply Baltic Birch with heavy internal bracing for reduced resonance and better durability. The enclosure is covered in a black carpet covering and incorporates metal corner protectors, rugged curved anti-resonant metal grilles, and 1/4" or Speakon™ input connectors. An optional finish of black ultrathane paint (LS1004) is also available. Additionally, the Speakon™ connectors feature a configuration switch which allows instant reversal of Speakon™ jack pinouts for easy single wire hook-up using optional four wire Speakon™ cables. The LS1004 includes tilt-back wheels and top/rear mounted corner handles for better maneuverability and stacking.

Features

• 4000 Watt 18-inch Subwoofer (2000 Watts Program)

• Max SPL 139dB Peak (136dB Continuous)

• Horn-Loaded Bass-Pipe Cabinet Design

• 4 Ohm Design for Easy Amplifier Configuration

• 35Hz - 200Hz Frequency Response

• 2 x Speakon™ and 2 x 1/4-inch Parallel Inputs

• Solid 5/8-inch (15mm) Birch Plywood Construction

• Made in Canada


Specs

• System Type: Horn Loaded Subwoofer

• Active or Passive: Passive

• Program Power (Watts): 2000 Watts (4000 Peak / 1000 Continuous)

• Nominal Impedance (Ohms): 4

• Sensitivity (dB @1Watt/1m): 105

• Max SPL (dB): 139dB Peak (136dB Continuous)

• Frequency Response (Hz +/- 3dB): 35 - 200

• Driver Configuration :18-inch Ceramic Magnet w/4-inch Voicecoil

• Inputs: 1/4" Jacks 2

• Inputs: Speakon 4-pin 2

• Other Controls / Features: Speakon™ connectors feature a configuration switch which allows instant reversal of Speakon™ jack pinouts for easy single wire hook-up using optional four wire Speakon™ cables.

• Corners: Black Steel

• Wheels: 2 Rear

• Bar Handles: 2 Top, 2 Side

• Enclosure Materials :15mm (5/8inch) 11-ply Russian Birch

• Grille: Heavy gauge perforated metal

• Covering / Finish: Black Ozite (Carpet)

• Dimensions (DWH xbackW, inches): 33 x 28 x 43.5

• Dimensions (DWH xbackW, cm): 83.8 x 71 x 110.5

• Weight (lbs/kg): 181.7 / 82.4


Specifications subject to change without notice
