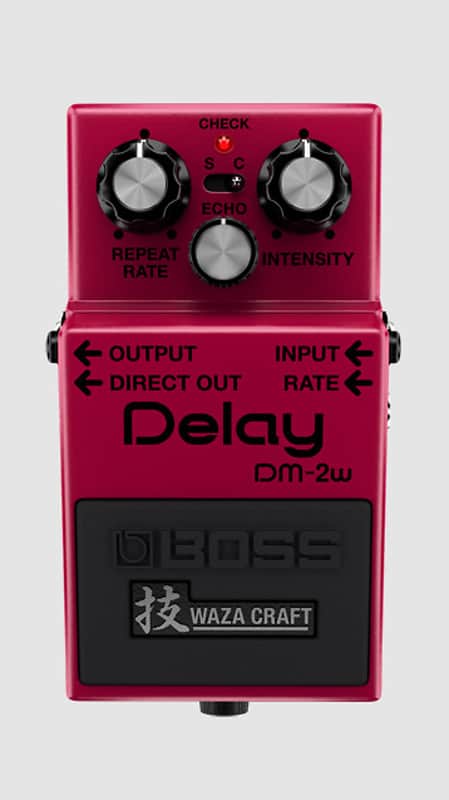

Ever since being discontinued way back in 1984, the BOSS DM-2 Delay pedal has remained highly sought after by players everywhere for its warm, “bucket brigade” analog delay tone. Now, the DM is back! With the Waza Craft DM-2W, the coveted stomp has been reborn with switchable sound modes and greater versatility for today’s music styles. Using 100-percent analog circuitry, the DM-2W’s Standard mode nails the lush sound and 20-300 ms delay range of the original DM-2. Flipping into Custom mode instantly changes the sound character to a cleaner analog tone with over twice the available delay time.

SPECIFICATIONS

Nominal Input Level: -20 dBu

Input Impedance: 1 M ohm

Nominal Output Level: -20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance: 10 k ohms or greater

Delay Time: Standard Mode (20 ms to 300ms), Custom Mode (40 ms to 800ms)

Controls: Pedal switch, REPEAT RATE knob, INTENSITY knob, ECHO knob, Mode switch

Indicators: CHECK indicator (Used for indication of check battery)

Connectors: INPUT jack (1/4"), OUTPUT jack (1/4"), DIRECT OUT jack (1/4"), RATE jack (1/4"), DC IN jack

Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9V, 6LR61), AC adaptor (soldseparately)

Current Draw: 35 mA

Expected battery life under continuous use: Carbon, Approx. 5 hrs; Alkaline, Approx. 15 hrs

Accessories: Owner's Manual, Leaflet ("USING THE UNITSAFELY," "IMPORTANT NOTES," and "Information"), Carbon-zinc battery (9V, 6F22)

Option (sold separately): AC adaptor (PSA series), Expression pedal (Roland EV-5)

SIZE AND WEIGHT

Width: 73 mm, 2-7/8 inches

Depth: 129 mm, 5-1/8 inches

Height: 59 mm, 2-3/8 inches

Weight (including battery): 460 g, 1.0625 lb
