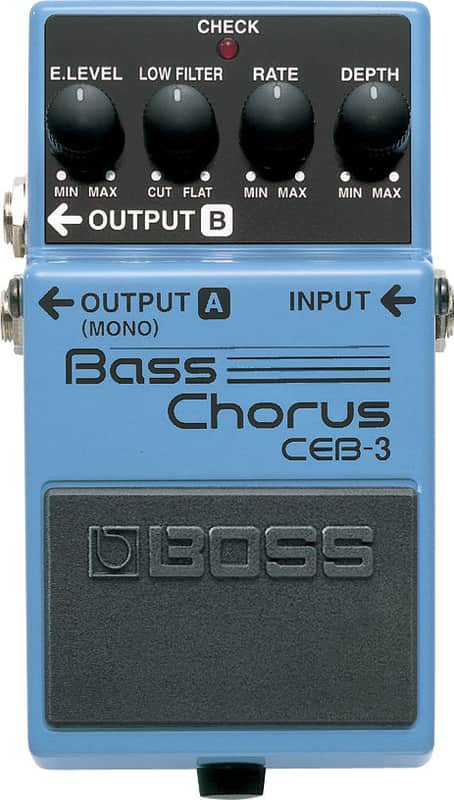

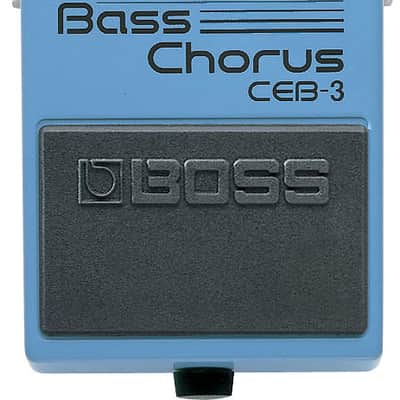

A CHORUS PEDAL WITH BUILT-IN CROSSOVER

The CEB-3 Bass Chorus pedal offers a split-frequency choruseffect capable of applying warm, rich chorusing to the higher frequencieswithout muddying up the lows. It's the perfect chorus pedal for bassists.

Compact chorus pedal especially designed for bass guitar

Applies chorus sound to the high frequencies withoutaltering low frequencies

Effect Level, Low Filter, Rate and Depth knobs permitprecise tonal shaping

BOSS five-year warranty

Nominal Input Level: -20 dBu

Input Impedance: 1 M ohm

Nominal Output Level: -20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance: 10 k ohms or greater

Bypass: Buffered bypass

Controls: DEPTH (Modulation depth) knob, RATE (Modulationrate) knob, LOW FILTER knob, E.LEVEL knob, Pedal switch

Indicator: CHECK indicator (Used for indication of checkbattery)

Connectors: INPUT jack: 1/4-inch phone type, OUTPUT A (MONO)jack: 1/4-inch phone type, OUTPUT B jack: 1/4-inch phone type, DC IN jack

Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkalinebattery (9 V, 6LR61), AC adaptor (PSA series: sold separately)

Current Draw: 22 mA

Expected battery life under continuous use: Carbon: Approx.24 hours, Alkaline: Approx. 43 hours
*These figures will vary depending on the actual conditions of use.

Accessories: Owner's manual, Leaflet ("USING THE UNITSAFELY," "IMPORTANT NOTES," and "Information"), Carbon-zincbattery (9 V, 6F22), Options (sold separately), AC adaptor: PSA series

SIZE AND WEIGHT

Width: 73 mm 2-7/8 inches

Depth: 129 mm 5-1/8 inches

Height: 59 mm 2-3/8 inches

Weight(including battery): 450 g 1 lb
