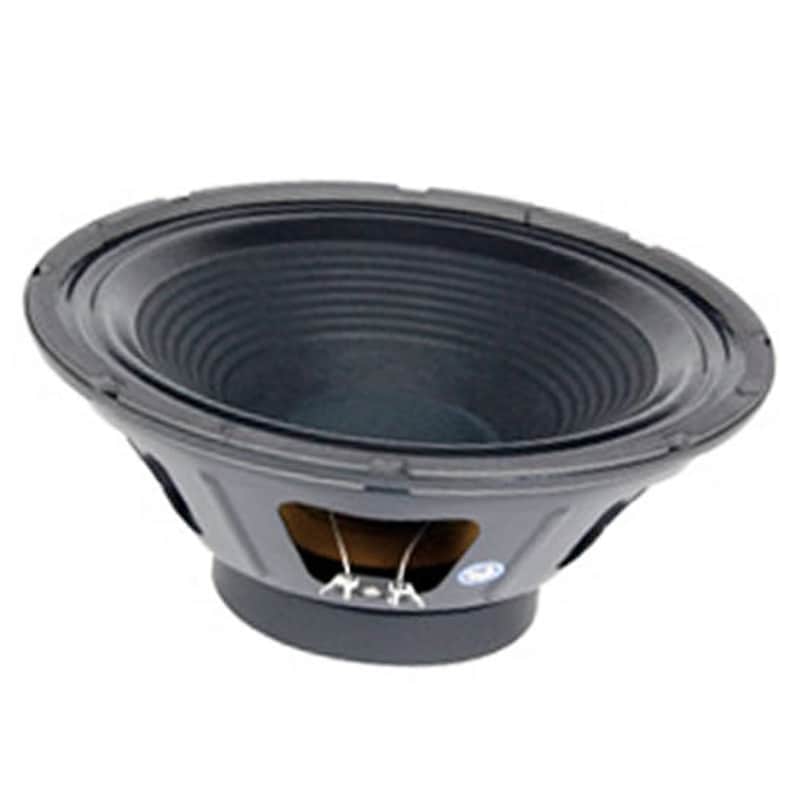

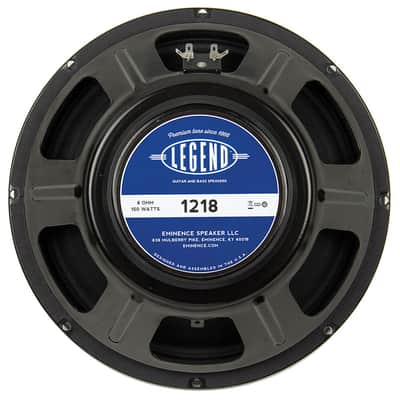

The Eminence Legend 1218 guitar speaker brings tone to the masses. Very balanced, fat, round, punchy lows and warm, smooth mids and lows, very clean and articulate. Aces.
- Nominal Basket Diameter 12"
- Nominal Impedance: 8 ohms
- Watts: 35W
- Music Program: N/A
- Resonance: 95Hz
- Usable Frequency Range: 100Hz - 5.5kHz
- Sensitivity***: 97.4dB
- Magnet Weight: 6 oz.
- Gap Height: 0.25", 6.2mm
- Voice Coil Diameter: 1", 25.4mm
- Resonant Frequency (fs): 95Hz
- DC Resistance (Re): 5.8
- Coil Inductance (Le): 0.51mH
- Mechanical Q (Qms): 17.96
- Electromagnetic Q (Qes): 1.61
- Total Q (Qts): 1.47
- Compliance Equivalent Volume (Vas): 31.5 liters / 1.1 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 72cc
- Mechanical Compliance of Suspension (Cms): 0.19mm/N
- BL Product (BL) 5.7 T-M
- Diaphragm Mass Inc. Airload (MMs): 15 grams
- Efficiency Bandwidth Product (EBP): 59
- Maximum Linear Excursion (Xmax): 2.1mm
- Surface Area of Cone (Sd): 344.9 cm2
- Maximum Mechanical Limit (Xlim) N/A
- Sealed: Acceptable
- Vented: Acceptable
- Driver Volume Displaced: 46.7 cu.in. / 0.77 liters
- Overall Diameter: 10.11", 256.8mm
- Baffle Hole Diameter: 9.05", 229.9mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: N/A
- Mounting Holes Diameter: 0.22", 5.6mm
- Mounting Holes B.C.D.: 9.6", 243.8mm
- Depth: 4.8", 122mm
- Net Weight: 4.9 lbs, 1.3 kg
- Shipping Weight: 4 lbs, 1.8 kgs
- Coil Construction: Copper voice coil
- Coil Former: Polyimide former
- Magnet Composition: Alnico magnet
- Core Details: Non-vented core
- Basket Materials: Pressed steel basket
- Cone Composition: Paper Cone
- Cone Edge Composition: Paper cone edge
- Dust Cap Composition: Solid composition felt dust cap
