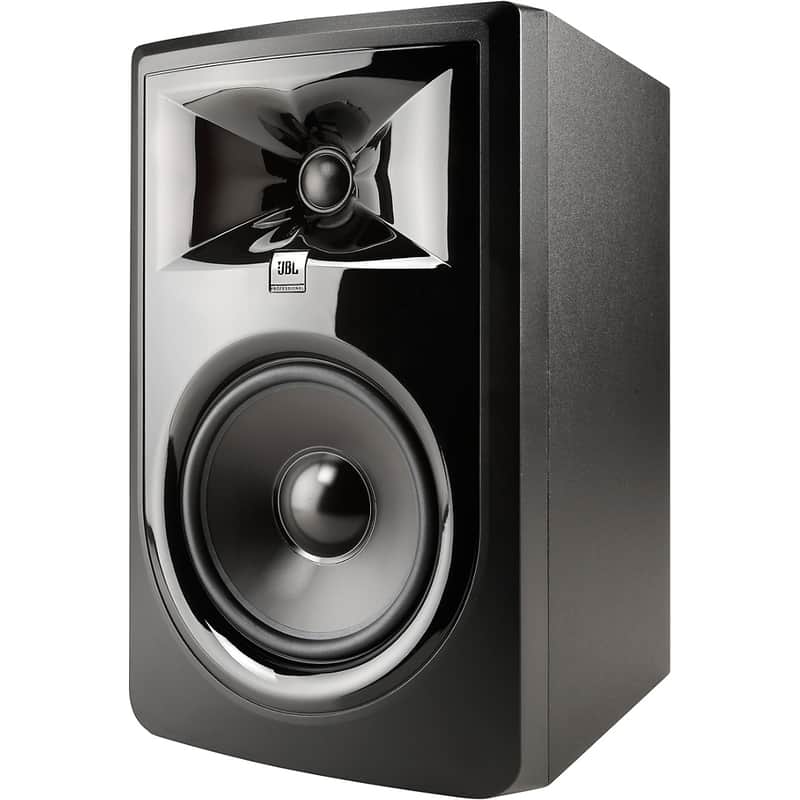

JBL 306P MKII Studio Monitor (6.5" Powered)
Powered 6" Two-Way Studio Monitor

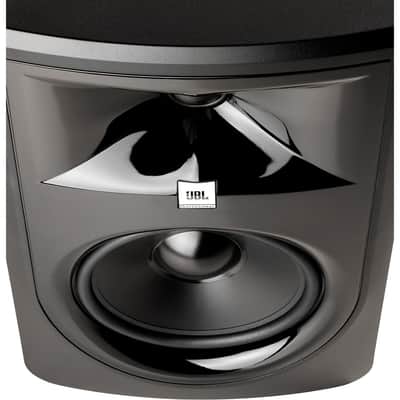

Patented Image Control Waveguide - For detailed imaging and a broad, room-friendly sweet spot. Next-generation JBL transducers - For optimized transient response and improved linearity. New Boundary EQ settings - Compensate for low frequency variants introduced by the environment. 3-position HF Trim switch - Adjusts high-frequency output to room acoustics or personal preferences. Patented Slip Stream™ low-frequency port - For superior bass performance at all playback levels. Dual integrated, custom Class-D amplifiers. Flexible connectivity - With balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control. Engineered to JBL Linear Spatial Reference design criteria - For outstanding accuracy in any working space. Sleek, modern design - Provides a visual upgrade to any studio.

SPECIFICATIONS

• LF Driver Size: 165 mm (6.5")
• HF Driver Size: 25 mm (1")
• HF Driver Type: Soft dome
• Crossover: 1425Hz 4th order acoustic Linkwitz-Riley
• Power Configuration: Bi-amplified
• HF Driver Power Amp: 56 W Class D
• LF Driver Power Amp: 56 W Class D
• Frequency Response: 47Hz - 20kHz (+/-3 dB)
• Frequency Range: 43Hz - 20kHz (-10 dB)
• Low Frequency Extension: 39Hz (-10 dB)
• Maximum Continuous SPL: 92 dB
• Maximum Peak SPL: 110 dB
• Maximum Peak Input Level: +6dBV / +20.3dBu (-10dBV / +4dBu)
• System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
• Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
• Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
• Coverage Pattern: 120 degrees x 90 degrees (horizontal x vertical)
• HF Trim Control: -2dB, 0dB, +2dB
• Boundary EQ: LF Shelf @ 50Hz
• AC Input Voltage: 100 - 240VAC (+/-10%), 50 / 60Hz
• Height: 361 mm (14.2")
• Width: 224 mm (8.8")
• Depth: 282 mm (11.1")
• Net Weight: 6.1 kg (13.42 lbs)
• Enclosure Type: Ported
• Enclosure Construction: 15mm MDF
• Enclosure Finish: Matte black PVC
• Baffle Construction: Injection-molded structural ABS

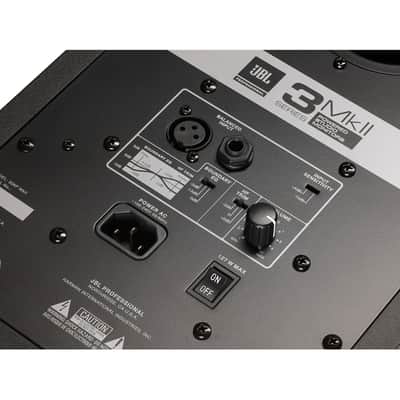

• Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
• Input Sensitivity: 92dB / 1m (-10dBV Input)

What's in the Box?

• 1 x 306P MkII studio monitor
• 1 x Power cord
• 1 x Quick setup guide
• 4 x Peel-off rubber pads
