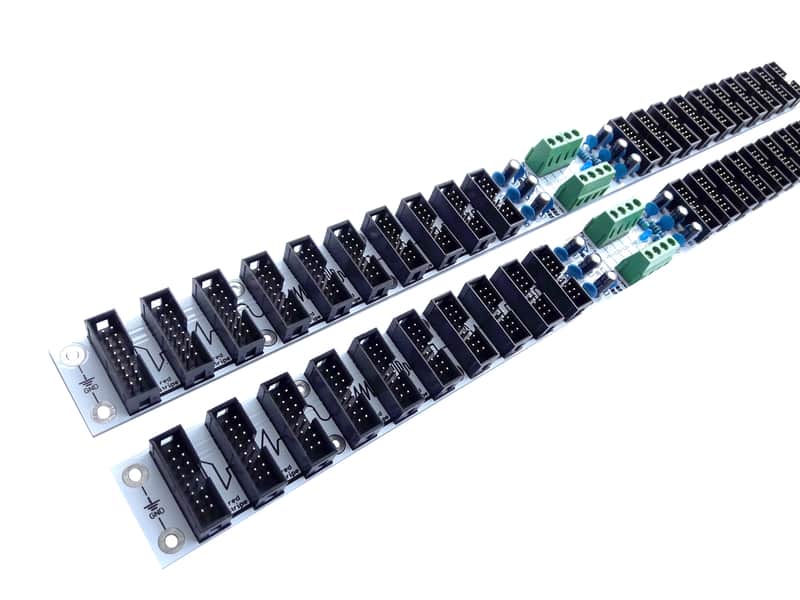

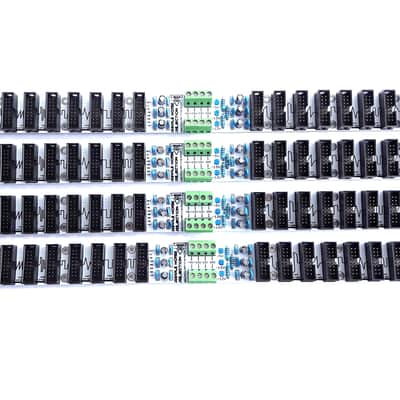

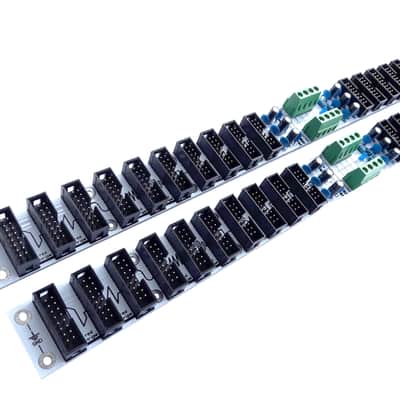

2x Busboard for Eurorack Case, Modular Synthersizer, Eurorack Busboard, Ripple Noise Rejection

### With this listing you will purchase 2pcs busboards ###

Ripple Noise Rejection Busboard - perfect solution for every eurorack case.

Our busboard has been designed especially to cooperate with modern switching power supplies - capacitor filter banks are designed to minimize voltage fluctuations caused by the AC signal that may ride over DC signal causing noise.
Network of bypass capacitors at every power rail is used to filter the noise of wide range of frequencies and helps to prevent the unwanted "module to module" disturbances caused by modules sharing the same power source.

Details & Features:
- Busboards come as fully assembled product
- Dimentions: 410mm x 30mm (16,4" x 1,18")
- 2x bypass capacitors filter bank to filter ripple & noise of mid, high and low frequencies
- 20x safety shrouded 16 pin eurorack power connectors
- 2x power supply cables screw terminal (+12V, -12V, +5V, GND) for easy "daisy-chain" connection of more bus boards together
- power supply cables screw terminals located in the middle of the bus board to reduce circuit inductance and distribute voltage evenly through the whole board
- 3x LED indicators on every power rail
- 2x2 grounded mounting holes at both ends of bus board for easy case/rails grounding
- Bus board can be cut to desired length - cut anywhere between 16 pin connectors

Eurorack case builders and retailers are very welcome! - please contact me for special price offers.
