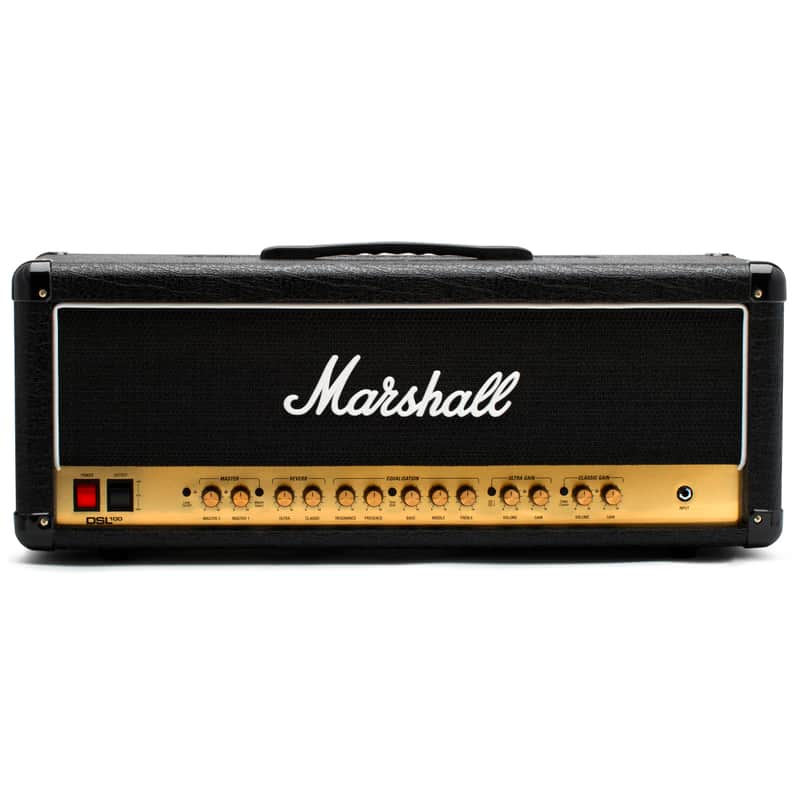

DSL100H 100 Watt Tube Guitar Amplifier Head

DSL

The versatile DSL series delivers legendary all valve Marshall tone suitable for all playing environments. From shimmering cleans to punchy distorted overdrives, the DSL allows you to easily flex the sound to your playing styles.

DSL offers a diverse range of features across the entire series including power reduction, studio quality reverb and two footswitchable channels. Combined this means that no matter your environment, you can really experiment and release your alter ego.

DSL100H

The DSL100H has two gain channels to produce that legendary Marshall sound with rich functionality for those who require flexibility and unquestionable quality. The amp can move between two sounds within each gain channel, so that players can create and release their personality through sound.

STAND OUT ON STAGE

There are two master volume functions so you can bring your solo to the forefront.

VARY THE OUTPUT

The DSL100 can be easily taken from the bedroom, to the studio onto a gig using the five available speaker outputs, it also has the ability to record and a standby function for silent recording.

CHOOSE YOUR TONE

Using the individual reverb for the two footswitchable gain channels, FX loop and tone shift controls you can experiment with your style.

PICK YOUR ENVIRONMENT

The DSL100 can be used in many environments with confidence as the power can be reduced from 100w to 50w without affecting the quality.

MIDI COMPATIBILITY

For those more demanding players, the amps features can be controlled using any MIDI equipment, so you can play this amp and different MIDI equipment at any one time.

GENERAL

• Model: DSL100H
• Range: DSL
• Technology: Valve
• Channels: 2 (Split) "Ultra gain" and "classic gain"

ELECTRONICS

• Output wattage: 100w (with power reduction option to 50w)
• Outputs: Speaker outputs: 5 x 1/4" jack sockets (16 ohm load / 8 ohm load / 4 ohm load), 1 x 1/4" jack emulated line out
• Inputs: 1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, MIDI in, footswitch
• Controls: Loop on/off switch, master volume II, master volume I, master select switch, reverb (ultra gain channel), reverb (classic gain channel), resonance, presence, tone shift switch, bass, middle, treble, ultra gain channel (OD1/2 switch, volume, gain), classic gain channel (clean/crunch switch, volume, gain), low power option (on rear)
• Effects: Digital reverb
• Effects loop: Yes, series, send/return

VALVES

• Preamp valves: 4 x ECC83
• Power amp valves: 4 x EL34

ACCESSORIES

• Footswitch: PEDL-90012 included. Compatible with PEDL-91016 modes include: 1 - Clean (classic green) 2 - Crunch (classic red) 3 - OD1 (ultra green) 4 - OD2 (ultra red) 5 - Master 1/Master 2 (toggle) 6 - FX Loop on/off
• Cable: Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)

• Weight: 53 lbs (24.2 kg)
• Width: 29.1" (740 mm)
• Height: 10.8" (274 mm)
• Depth: 9.5" (242 mm)
