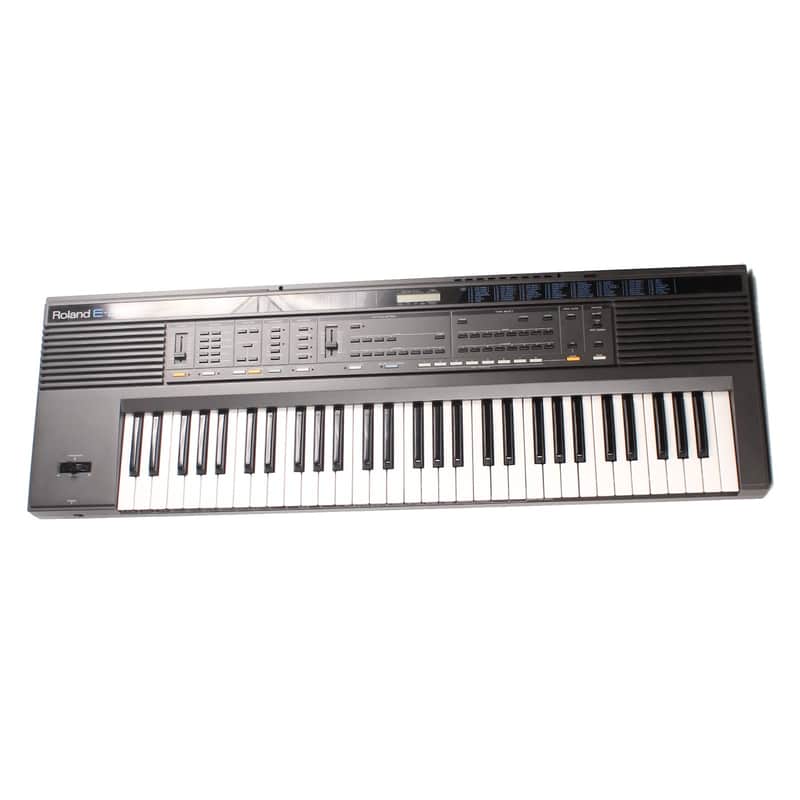

Roland E-20 Intelligent Synthesizer

KEYBOARD:
61 Keys Velocity Sensitive

SOUND SOURCE SYSTEM:
LA Digital Synthesis

BUILT-IN EFFECT:
Digital Reverb (8 types: Hall 1-2, etc.)

PANEL SWITCH/CONTROL

VOLUME:
Master Control Volume

BALANCE:
Upper, Lower, Accomp., Bass, Drums

FUNCTION:
Multi Function Footswitch (6 Modes)
MIDI – 9 Instrumental Sections, MIDI channel changeable
Transpose/Master Tune/Pitch Bend Range

COMPOSER:
Record and Play (Upper and/or Lower Track) 3 Songs
(1 song: approx. 200 measures)

ARRANGER:
On/Off, Chord Intelligence, Memory, Sync Start.

RHYTHM SECTION:
Bank 1-4, Number 1-8, Card, Tempo Slider, Variation for each Rhythm

TONE SELECT:
Upper, Lower, Bass, Bank 1-8, Number 1-8

MEMORY CARD:
From Card, To Card

REVERB:
On/Off, Part Assign (Yes/No), Type (8 Types)

REAL TIME SWITCHES:
Manual Drum, Split 1/2, Fill-In (To Variation , To Original), Intro/Ending, Arranger 1/2, Start/Stop, Melody Intelligence, User Program 1-8, Write, Demo, Pitch Bender/Modulation Lever.

DISPLAY:
16 Characters x 2 lines (LCD back lit)

REAR PANEL TERMINAL:
AUX IN (Right, Left/Mono)
AUX OUT (Right/Mono, Left)
MIDI (OUT, THRU, IN)
Pedal Footswitch

FRONT PANEL TERMINAL:
Headphones

BUILT-IN SPEAKERS:
120 mm x 2
