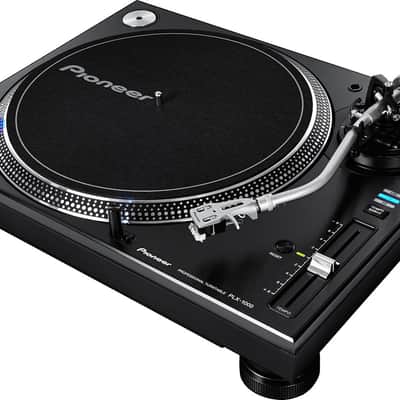

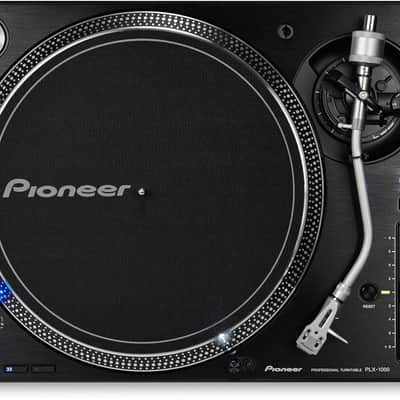

Pioneer PLX-1000 High-torque direct drive professional turntable (black)

Beyond your standard effector

A reborn classic The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It’s solidly built for excellent vibration damping and ultra-precise, high-grade audio playback.

Simply add your choice of cartridge and stylus to the PLX-1000 (not included) and combine with your mixer for an ideal setup for turntablists. An ideal match for DJs is the handmade PC-X10 (sold separately).

• Turn the tables

  The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33? rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).

• Excellent sound design

  The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.

• Pick up the pace

  Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.

• Flexible connectivity

  Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.

Main Fatures

Included Accessories

• Turntable sheet

• Slip mat and sheet

• Dust cover

• Head shell

• Balance, sub and shell weights

• Audio cable

• Ground wire

Specifications

 Width

• 17.83 in

 Height

• 6.26 in

 Depth

• 13.9 in

 Weight

• 32.19 lb

Tuntables

  Drive Method

• Quartz lock, servo-type, direct drive

  Platter

• Aluminium, die-casting diameter: 332 mm

  Motor

• 3-phase, brushless DC motor

  Braking System

• Electronic brake

  Rotation Speed

• 33?-45 rpm

  Rotation Adjustment Range

• ±8, ±16, ±50 %

  Wow and Flutter

• < 0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)

  Signal-to-Noise Ratio

• 70 dB

  Starting Torque

• > 4.5 kgf?cm

  Start Time

• Within 0.3 sec (at 33? rpm)

Tone Arm

Arm Type

• Universal type S-shape tone arm
• Gimbal-supported type bearing structure
• Static balance type

  Overhang

• 0.59 in

  Effective Length

• 9.06 in

  Tracking Error

• Within 3°

  Height Adjustment Range

• 0.24 in

  Stylus Pressure Variable Range

• 0-4 g (1 scale 0.1 g)

  Cartridge Weight Single

• 3.5-13 g

Terminals

  Outputs

• 1 ANALOGUE (RCA)
