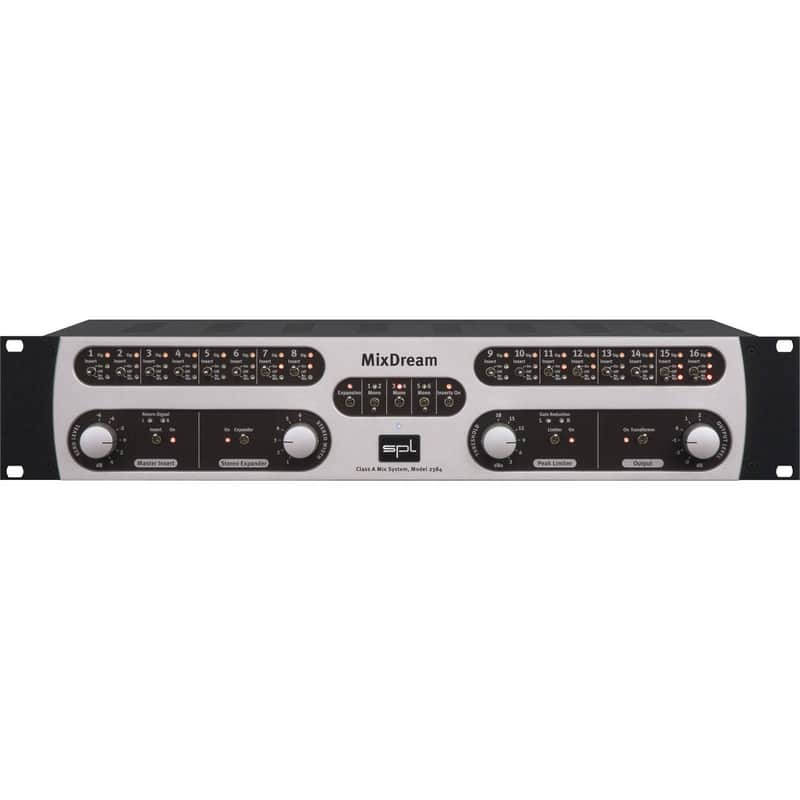

The MixDream design plan provides for the integration of analog equipment in digital production environments and stereo mixdown at the analog level. This concept offers high-grade analog summing without panorama and fader controls, in turn allowing an engineer to retain the entire scope of his computer automation. One MixDream can sum up to 16 audio tracks to a stereo signal, and should the need arise for more than 16 tracks, several MixDreams may be linked together. The MixDream discrete class A technology is based on a 60-volt rail (+/-30V). Newly developed circuitry, based on the most modern analog components, guarantees an extremely high slew rate, a low noise level of -97dBu (A-weighted, all channels active) and a dynamic level of over 125 dB. Thus the MixDream easily realizes the technical level of the best analog consoles.

• High-grade analog summing on just 2U rack space no analog mixing console necessary
• Optimal integration of analog effects in DAW environments
• No loss of computer automation
• Lower DAW processor utilization rates
• The most efficient possible re-sampling of individual tracks with latency free monitoring
• Surround capable (from up to 3 MixDream units)
• Channel capacity expandable through linked units

• Freq. Response: ‹1Hz-220kHz (+/- 3dB)
• THD+N Ratio: -104dB (20Hz-22kHz, Input +10dBu, all channels active)
• Noise Level: -97dBu (20Hz-22kHz, A-weigted, all channels active)
• Max Input Level: +28dBu (@1kHz)
• Max Output Level: +28dBu (@1kHz/THD+N -95dBu)
• Dynamic Range: 125dB (20Hz-22kHz, A-weighted, all channels active)
• Crosstalk L/R: 97dB@1kHz
• CMRR:
• Input Impedance: 10kOhm(for Input 1-16, Expansion, Insert Return)
• Output Impedance: 82Ohm (for Master/Monitor Out w/o transformer, insert send)
• Output Impedance: 65Ohm (for Master/Monitor Out with transformer)
• Power consumption: 75W

• MixDream Analog Summing Mixer
• Power Cable
• Manual
• Two Year Warranty
