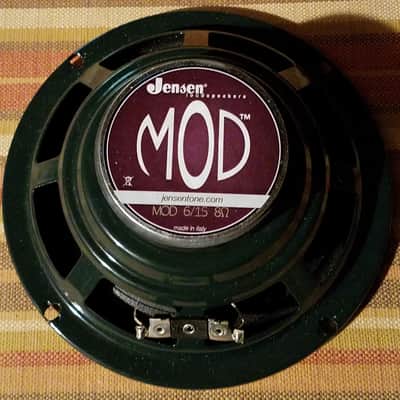

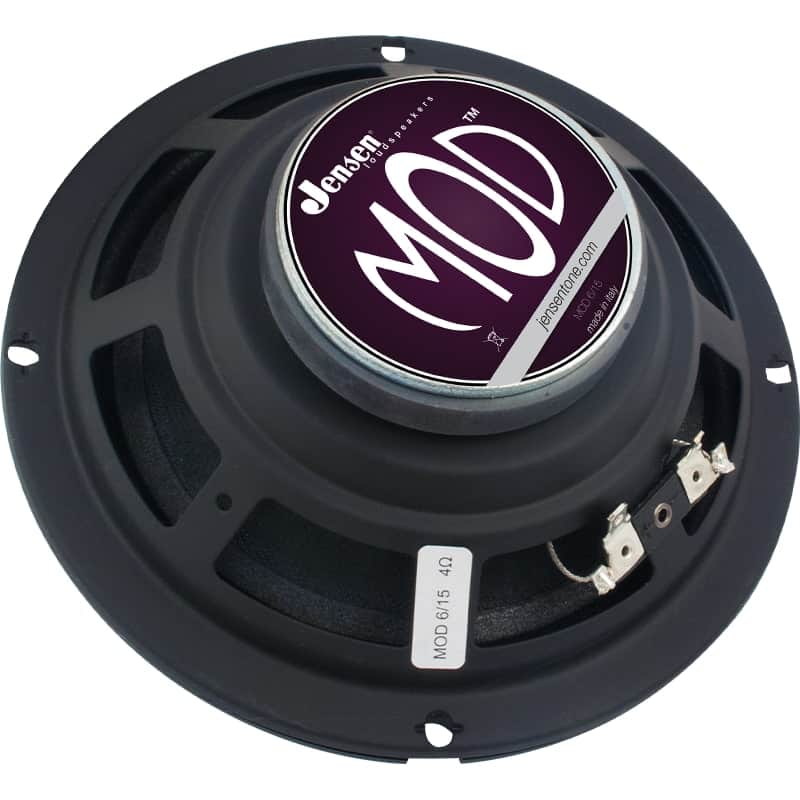

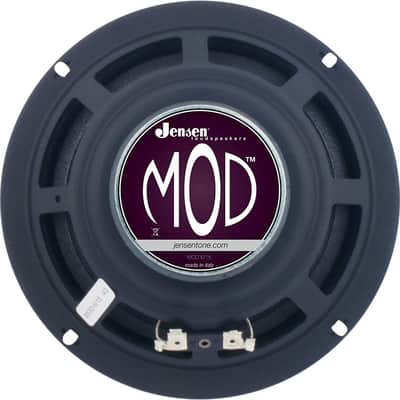

The Mod 6-15 is a 6" ferrite speaker with 15 watts of power. It is a good upgrade for small practice amps.

The MOD® Speakers lineup is a collaborative effort with MOD® Electronics that provides musicians with a classic sounding speaker voicing that doesn't shy away from new technologies and modern advancements. Unbound from the restraints of producing an authentic reissue, Jensen® and MOD® have developed a new series of speakers that carefully blends the clarity of the vintage Americans with the forward, driving tone of their vintage British counterparts. The result is an extremely versatile sound that sits well in any mix, be it classic rock, blues, jazz, or contemporary genres.

Guitarist Description: A good upgrade for small practice amps.

Product Measurements

Diameter: 6 in.
Voice Coil Diameter: 0.75 in.
Depth: 2.45 in.
Outer Diameter: 6.53 in.
Inner Diameter: 5.59 in.
Mounting Hole Bolt Circle Diameter: 6.1 in.
Magnet Assembly Diameter: 2.83 in.
Magnet Assembly Depth: 0.71 in.
Mounting Hole Diameter: 0.2 in.
Nominal Overall Diameter: 165.00 mm
Nominal Voice Coil Diameter: 20.00 mm
Flux Density: 1.10 T
Magnet Type: Ferrite
Voice Coil Winding Type: Copper
Voice Coil Former: Epotex
Cone Material: Paper
Surround Material: Foam
Dust Dome Material: Solid Paper
Basket Material: Pressed Sheet Steel
Voice Coil DC Resistance (Re): 6.64 Ω
Resonance Frequency (ƒS): 89.90 Hz
Mechanical Q Factor (QMS): 8.44
Total Q Factor (QTS): 1.23
Mechanical Moving Mass (MMS): 6.70 g
Mechanical Compliance (CMS): 465.00 µm/N
Force Factor (BxL): 4.19 Wb/m
Equivalent Acoustic Volume (VAS): 9.90 liters
Linear Displacement, maximum (XMAX): 0.50 mm
Reference Efficiency (nO): 0.48 %
Diaphragm Area (SD): 122.70 cm2
Losses Electrical Resistance (RES): 39.00 Ω
Voice Coil Inductance @ 1 kHZ (LE): 0.43 mH
Rated Power: 15.00 W
Musical Power: 30.00 W
Sensitivity @ 1W, 1m: 89.90 dB
