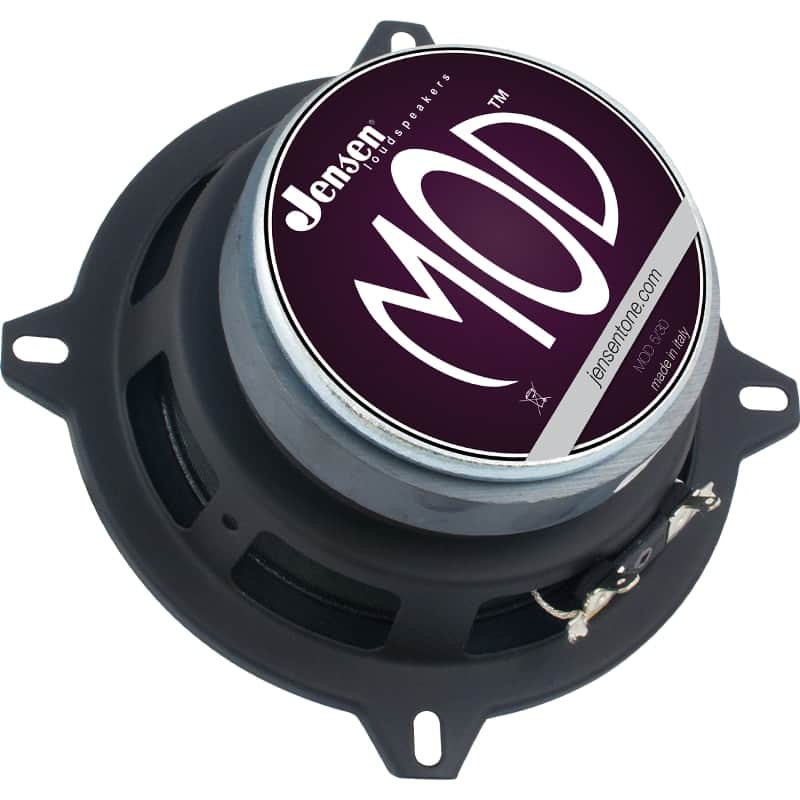

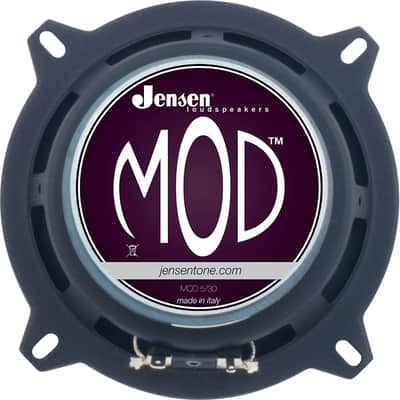

The Mod 5-30 is a 5" ferrite speaker with 30 watts of power. It is a great replacement for Trace Elliot amps.

The MOD® Speakers lineup is a collaborative effort with MOD® Electronics that provides musicians with a classic sounding speaker voicing that doesn't shy away from new technologies and modern advancements. Unbound from the restraints of producing an authentic reissue, Jensen® and MOD® have developed a new series of speakers that carefully blends the clarity of the vintage Americans with the forward, driving tone of their vintage British counterparts. The result is an extremely versatile sound that sits well in any mix, be it classic rock, blues, jazz, or contemporary genres.

Product Measurements

Voice Coil Diameter: 1 in.
Diameter: 5 in.
Depth: 2.4606 in.
Outer Diameter: 5.0787 in.
Inner Diameter: 4.4094 in.
Mounting Hole Bolt Circle Diameter: 5.433 in.
Magnet Assembly Diameter: 3.3858 in.
Magnet Assembly Depth: 1.0629 in.
Mounting Hole Diameter: 0.185 in.
Nominal Overall Diameter: 129.00 mm
Nominal Voice Coil Diameter: 25.00 mm
Flux Density: 1.10 T
Magnet Type: Ferrite
Voice Coil Winding Type: Copper
Voice Coil Former: Epotex
Cone Material: Paper
Surround Material: Treated Cloth
Dust Dome Material: Non-treated Cloth
Basket Material: Pressed Sheet Steel
Voice Coil DC Resistance (Re): 6.00 Ω
Resonance Frequency (ƒS): 125.00 Hz
Mechanical Q Factor (QMS): 7.48
Total Q Factor (QTS): 0.84
Mechanical Moving Mass (MMS): 4.30 g
Mechanical Compliance (CMS): 378.00 µm/N
Force Factor (BxL): 4.59 Wb/m
Equivalent Acoustic Volume (VAS): 3.30 liters
Linear Displacement, maximum (XMAX): 0.50 mm
Reference Efficiency (nO): 0.66 %
Diaphragm Area (SD): 78.50 cm2
Losses Electrical Resistance (RES): 47.00 Ω
Voice Coil Inductance @ 1 kHZ (LE): 0.19 mH
Rated Power: 30.00 W
Musical Power: 60.00 W
Sensitivity @ 1W, 1m: 91.50 dB
