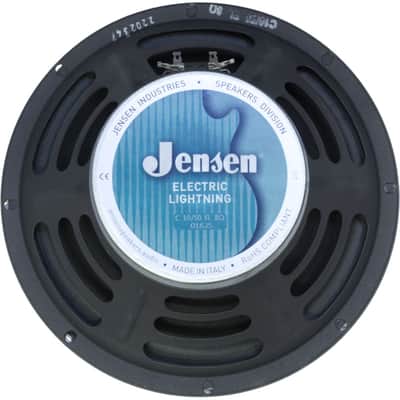

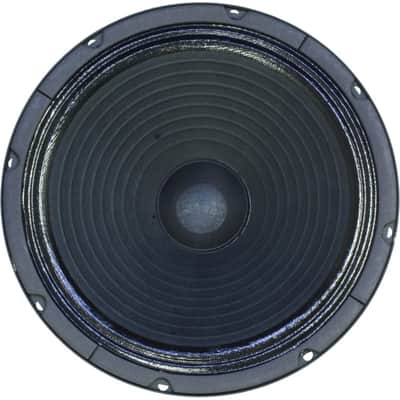

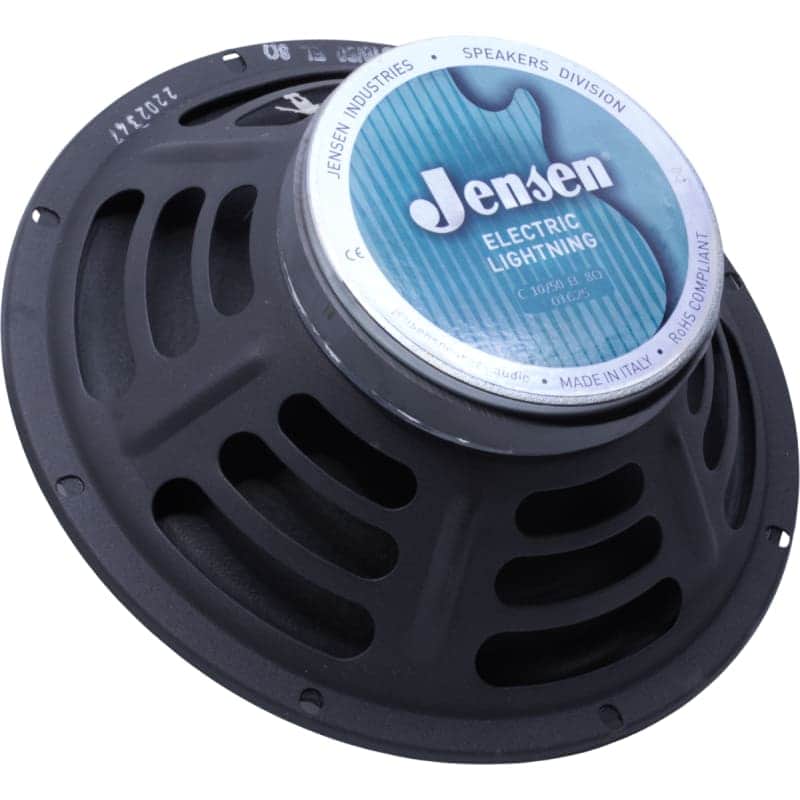

Speaker - Jensen® Jets, 10", Electric Lightning, 50W, Impedance: 16 Ω

The Electric Lightning 10 shines and shimmers with clean tones, because of its exceptional response on the upper frequencies. The midrange and bass may seem slightly subdued, yet the tonal balance is remarkably even. Capable of cutting through any mix, the Electric Lightning 10 delivers warmth, boldness and articulation.

Guitarist Description: Warm and bold with shimmering highs. Presented with overdrive distortion, it remains strong and articulate.

• Lows: Fat
• Mids: Aggressive
• Highs: Bright
• Overdrive: Crunchy

Product Measurements

Diameter: 10 in.
Voice Coil Diameter: 1.5 in.
Depth: 3.8385 in.
Outer Diameter: 10.1969 in.
Inner Diameter: 9.0944 in.
Mounting Hole Bolt Circle Diameter: 9.6456 in.
Magnet Assembly Diameter: 5.2755 in.
Mounting Hole Diameter: 0.2559 in.
Nominal Overall Diameter: 259.00 mm
Nominal Voice Coil Diameter: 38.00 mm
Flux Density: 1.15 T
Voice Coil Winding Depth: 10.00 mm
Magnetic Gap Depth: 8.00 mm
Magnet Type: Ferrite
Voice Coil Winding Type: Aluminum
Voice Coil Former: Kapton
Cone Material: Paper
Surround Material: Integrated Paper
Dust Dome Material: Non-treated Cloth
Basket Material: Pressed Sheet Steel
Surround Treatment: Yes
Voice Coil DC Resistance (Re): 12.65 Ω
Resonance Frequency (ƒS): 104.00 Hz
Mechanical Q Factor (QMS): 8.25
Total Q Factor (QTS): 0.73
Mechanical Moving Mass (MMS): 18.40 g
Mechanical Compliance (CMS): 127.00 µm/N
Force Factor (BxL): 13.73 Wb/m
Equivalent Acoustic Volume (VAS): 19.70 liters
Linear Displacement, maximum (XMAX): 1.00 mm
Reference Efficiency (nO): 2.62 %
Diaphragm Area (SD): 330.10 cm2
Losses Electrical Resistance (RES): 149.80 Ω
Voice Coil Inductance @ 1 kHZ (LE): 1.15 mH
Rated Power: 50.00 W
Musical Power: 100.00 W
Sensitivity @ 1W, 1m: 97.40 dB
