Faital Pro 6FE200-4 Omh 6" Professional Midrange Speaker 200 Watts

FaitalPro 6FE200 6" Mid-Range 260W Car Audio Speaker 4 Ohm

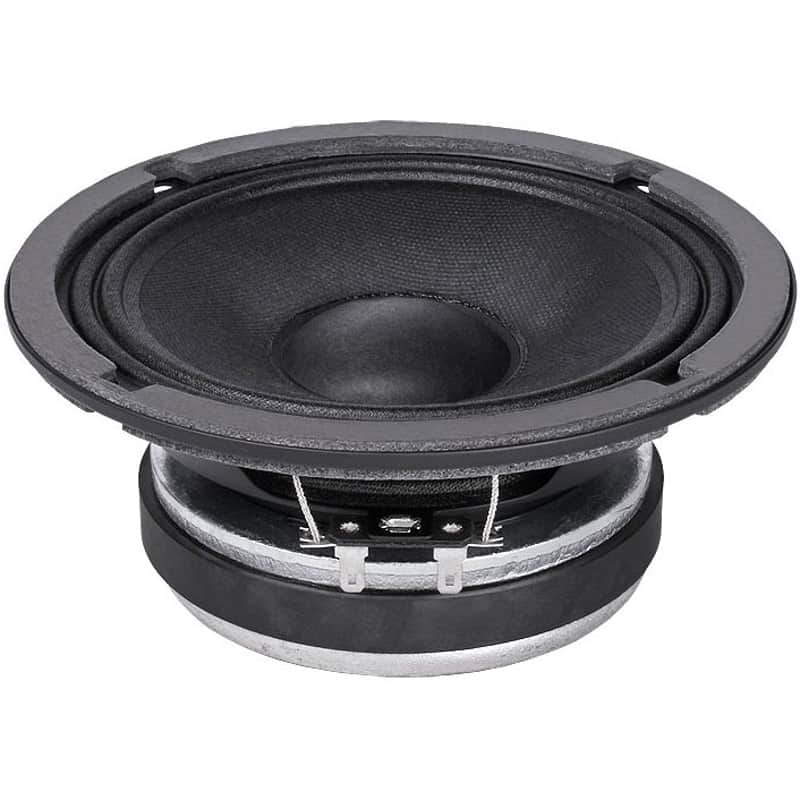

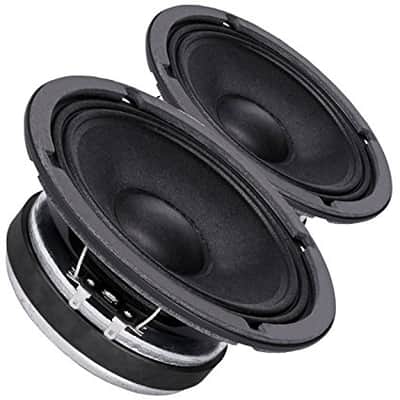

FaitalPRO's open back 6FE200 6" professional midrange speaker is purpose-built to cover the critical midrange in three-way speakers, but also works great as a door speaker in car audio applications. To ensure absolute signal fidelity, FaitalPRO built the 6FE200 with a strong ferrite ring-powered motor. Not only does this increase sensitivity, it keeps the Qts at a respectable figure of 0.67. Made in Italy.

Nominal Specifications

Nominal Diameter

• 160 mm (6 in)

Overall Diameter

• 167.4 mm (6.59 in)

Bolt Circle Diameter

• 154 mm (6.06 in)

Baffle Cutout Diameter

• 144 mm (5.67 in)

Depth

• 77 mm (3.03 in)

Flange and Gasket Thickness

• 8 mm (0.31 in)

Net Weight

• 2 Kg (4.4 lb)

Shipping Box
(Single Carton Box)

• 190 x 185 x 103 mm

(7.5 x 7.3 x 4.1 in)Shipping Weight

• 2.2 Kg (4.9 lb)

Technical Parameters

Nominal Impedance

• 4 Ohm

Minimum Impedance

• 6.8 Ohm

AES Power Handling (1)

• 130 W

Maximum Power Handling (2)

• 260 W

Sensitivity (1W/1m)95 dBFrequency Range

• 85÷6000 Hz

Voice Coil Diameter37 mm (1.46 in)Winding Material

• Al

Former Material

• Kapton

Winding Depth

• 12 mm (0.47 in)

Magnetic Gap Depth

• 8 mm (0.31 in)

Flux Density

• 1 T

Magnet

• Ferrite Ring

Basket Material

• Steel

Demodulation

• No

Cone Surround (3)

• M-Roll

NET Air Volume filled by Loudspeaker

• 0.45 dm^3 (0.016 ft^3)

Spider Profile

• 1x constant height waves

Thiele and small parameters

Fs

• 120 Hz

Re

• 5.9 Ohm

Qes

• 0.75

Qms

• 6.2

Qts

• 0.67

Vas

• 3.0 dm^3 (0.11 ft^3)

Sd

• 118 cm^2 (18.29 in^2)

Xmax (4)

• 4.67 mm

Xdamage (5)

• 10.4 mm

Mms

• 11.5 g

Bl

• 8.2 N/A

Le

• 0.4 mH

Mmd

• 11.1 g

Cms

• 0.15 mm/N

Rms

• 1.4 Kg/s

Eta Zero

• 0.67 %

EBP

• 160 Hz

(1) 2 Hours Test According to AES 2-1984 Rev. 2003(2) Maximum power is defined as 3dB greater than nominal power.(3) Treated Polycotton(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3
