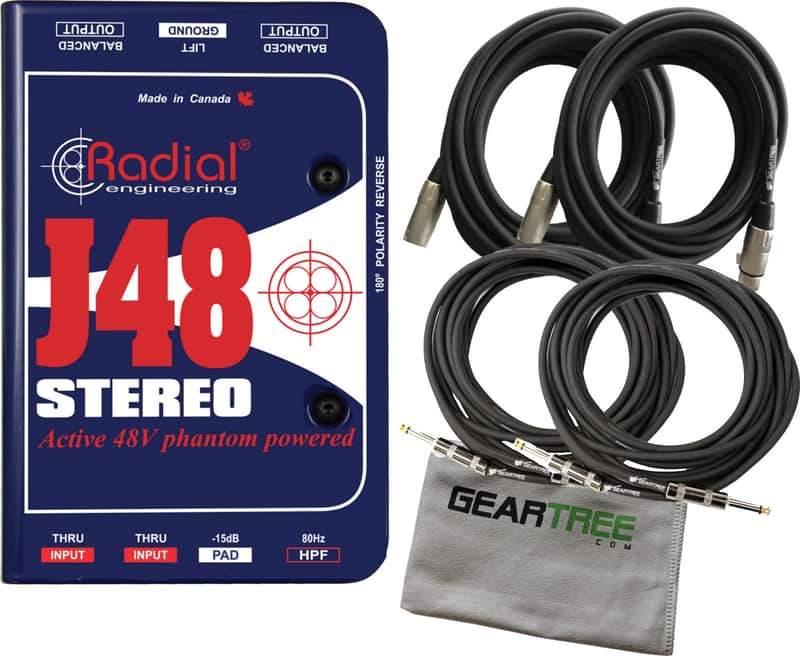

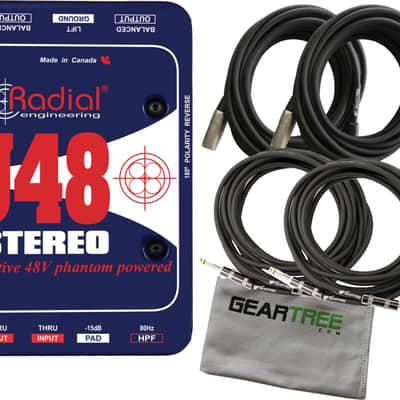

Radial J48 Stereo Active DI, stereo for guitar & bass, extra headroom & high-pass filter w/ 4 Cables

Description

The Radial J48 Stereo is a high performance active direct box designed for professional touring and studio recording. It features the same award-winning signal path that has made the single channel J48 the most specified active direct box on tour today. And with users as diverse as Paul McCartney, Tommy Emmanuel and Joe Chiccarelli, you can be sure it will meet the most demanding qualifications.The design begins with a rugged 14 gauge steel construction and a bookend design that protects sensitive switches and connectors from damage. The internal I-beam construction ensures the fragile internal PC board will not torque, which in turn could lead to cold solder joints developing and premature failure. All connectors are made from glass-filled nylon and feature extra large nickel-silver contacts that will not tarnish over time.Inside, a unique switching power supply converts the 48 volt phantom to AC, increasing the headroom for improved signal handling and lower distortion. This results in an exceptionally linear frequency response that spans from 10Hz to 40kHz while being able to handle high output instruments without choking. In addition, a -15dB pad may be engaged for extreme signal handling. This is supplemented with a high-pass filter that gently rolls off low frequencies below 80Hz to clean up mud and excessive resonance. A side-access 180 degree polarity reverse aids when using the J48 Stereo with dual element pickups to either phase align the sources or eliminate acoustic hot spots that can cause feedback on stage.A unique aspect of the power supply is the way that the J48 handles buzz and hum caused by ground loops. The traditional solution is to lift the audio ground by disconnecting pin-1 at the XLR output. When this is done, the 48 volt phantom power from the console is shut off, forcing one to introduce a battery into the equation. Unfortunately, batteries are inconsistent, and when they begin to drop power, severely affect the available voltage and resulting headroom. Instead, the J48 employs a DC to DC converter with a high frequency transformer that enables the audio ground to be lifted at the power supply. This does not shut off the phantom power and is invisible to the user.The Radial J48 Stereo - Twice as good as the world's finest phantom-powered active DI!

Product Features

• Exceptional headroom and dynamic range
• Powered by 48V phantom
• Retains instrument's natural sound
• Ultra low distortion of all types
• 1 x Radial J48 Stereo - Active Direct Box
• 2 x Strukture 10' Instrument Cable
• 2 x Strukture #SMC20 20' XLR Microphone Cable
• UPC: 607595982560

Attributes

• Color (X): Black

Technical Specifications

• Type: Electric

Included Items

[1x] Radial J48 Stereo Active Direct Box

Taking their popular J48 direct box and adapting it for stereo or dual mono sources, the J48 Stereo Phantom Powered Active Direct Box from Radial Engineering is constructed from rugged 14-gauge steel, making it at home on the stage and in the studio. Its design allows for low distortion and a very neutral sound to retain the natural tone of your instrument. A -15 dB pad and selectable high-pass filter at 80 Hz allow you to work with higher-volume sources and eliminate lower-frequency rumble if desired. The J48 Stereo requires 48V phantom power, and employs a switching power supply that uses the 48V to increase headroom and lower distortion. A polarity reverse switch enables you to correct any polarity issues, while the ground loop helps eliminate hum.

Technical Specifications

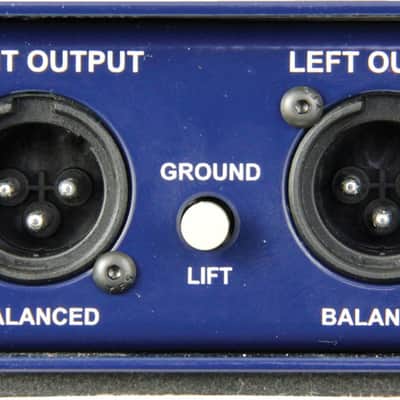

• Features: Ground Lift, Phantom Power
• Active/Passive: Active
• # of Channels: 2
• Dimensions: 2" H x 5" L x 3.3" D
• Inputs: 2 x XLR, 2 x 1/4"
• Outputs: 2 x XLR, 2 x 1/4" (Thru)
• Power Source: 48V Phantom Power

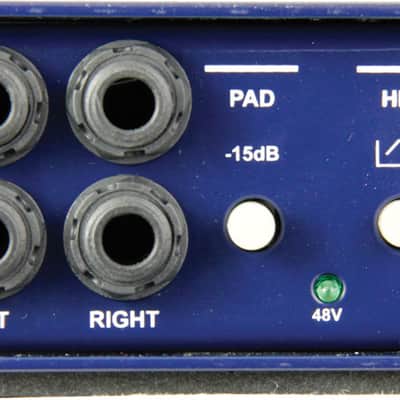

• dB Pad: -15dB

[2x] Strukture SMC20 XLR Micrphone Cable, 20'

Strukture selected the top-selling cables in the industry and eliminated as much packaging cost as possible without sacrificing quality. The PVC outer covering is reinforced by a state-of-the-art shrink-wrap sleeve to resist separation at the termination points. Finally, they use the highest quality solder connections, which are protected by a thick ABS inner sleeve, to create a cable you can count on.

Attributes

• Color: Black

Technical Specifications

• Type: Microphone
• Unit Count: Single
• From Connector: XLR Male
• To Connector: XLR Female
• Connector Angle: Straight to Straight
• Cable Length: 20'

[2x] Strukture SC10R 1/4" Instrument Cable, 10'

Struktrure selected the top-selling cables in the industry and eliminated as much packaging cost as possible without sacrificing quality. The PVC outer covering is reinforced by a state-of-the-art shrink-wrap sleeve to resist separation at the termination points. Finally, they use the highest quality solder connections, which are protected by a thick ABS inner sleeve, to create a cable you can count on.

Attributes

• Color: Black

Technical Specifications

• Type: Instrument
• Unit Count: Single
• From Connector: 1/4"
• To Connector: 1/4"
• Connector Angle: Straight to Straight
• Balanced: No
• Cable Length: 10'

[1x] Polish Cloth

Keep your instrument collection clean and free of dust, smudges and other day-to-day blems with this microfiber polishing cloth. For use on guitars, basses, drums and any other instruments that need upkeep.

Attributes

• Type (X): Polish/Cloths
