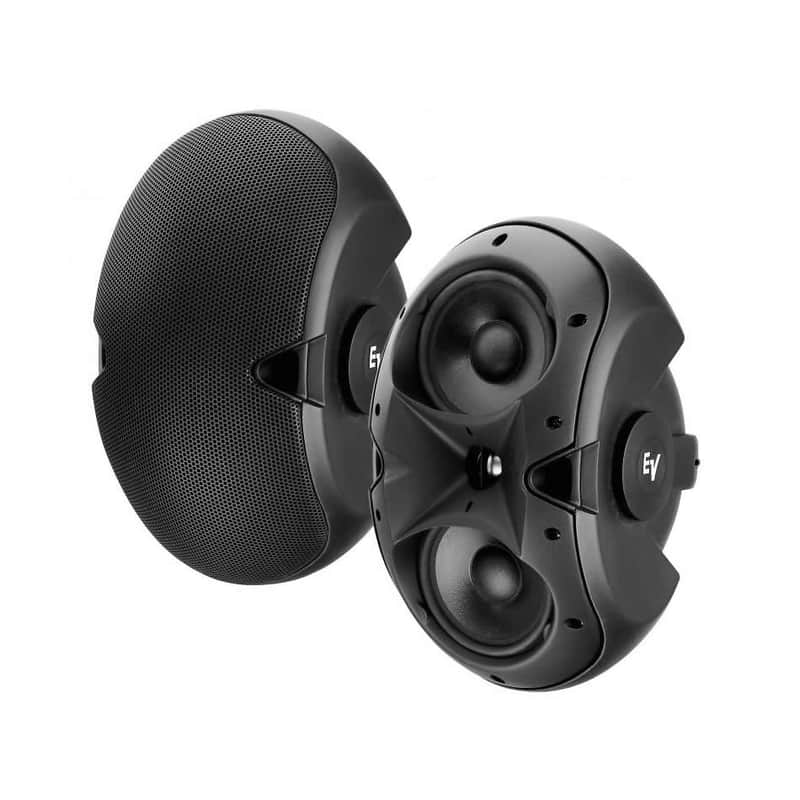

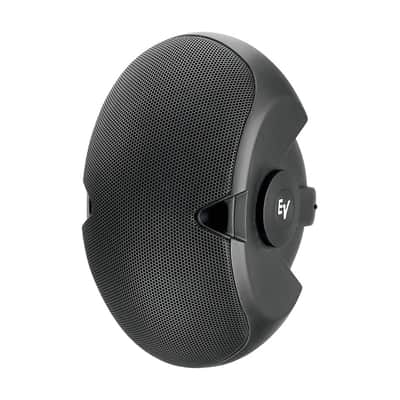

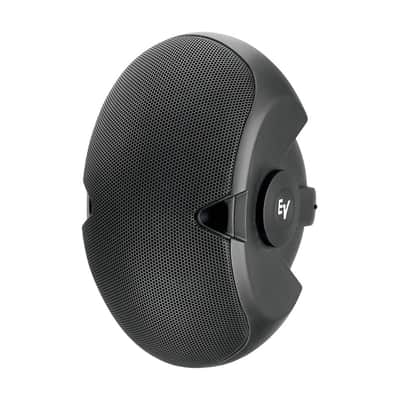

The EVID 3.2 produces sound that defies its small size. It is loaded with dual, 3.5“, low-frequency drivers and a .75“, Ti-direct radiator. Its unobtrusive profile is ideal for background music and paging support.

* Designed for Commercial Sound/Life Safety, House of Worship, and other applications.
* Two-way full range
* Vented LF enclosure
* 0.75” voice coil (titanium diaphragm) with Neodymium magnetic structure
* Full-bandwidth overload protection for HF and LF
* Three-dimensional ellipse (for compact look)
* Magnetically shielded for video applications
* Comes with Strong Arm Mount (SAM™) and a hex key
* Suspension insert for SAM™; safety point on rear side

Chassis Size 3.5" (88.9 mm)
Color Black
Color White
Input Connections Spring Terminal
Speaker Type Fullrange
Speaker Type Mid-High
Speaker Type Two-Way
Transformer Taps (Transformer Version Only) 70 V: 5 W, 100 V:10 W
Frequency Response (-10 dB) 85 - 20000 Hz
Sensitivity 1 W/1 m 87 dB
Max. SPL/1m (calc) 112 dB
Coverage
(Nominal -6 dB) H° 140 °
Coverage
(Nominal -6 dB) V° 100 °
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 6 Ω
Outdoor Yes
Height 9.21" (234 mm)
Width 5" (127 mm)
Depth 6.5" (165 mm)
Weight Net 52.91 oz (1500 g)
