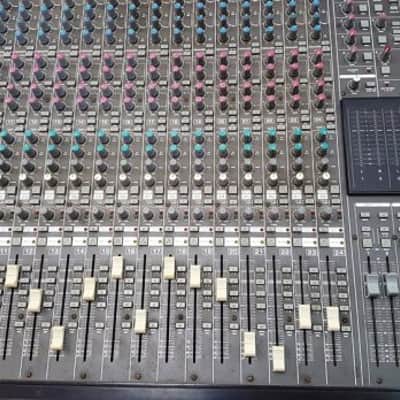

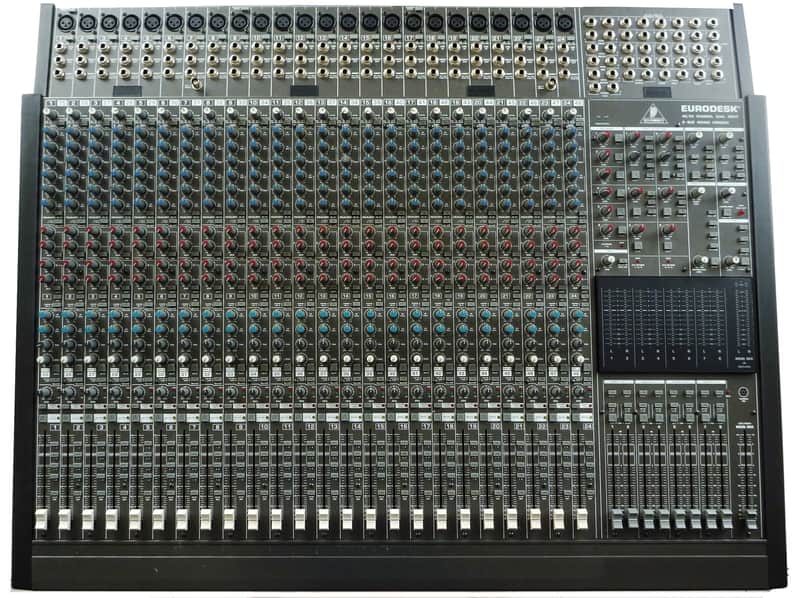

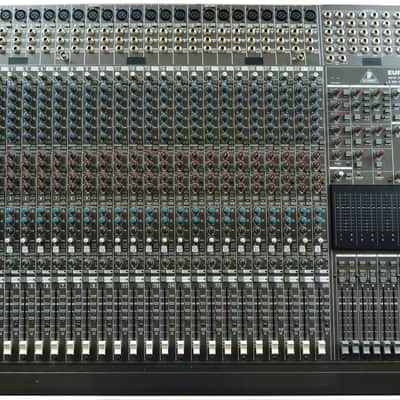

Behringer Eurodesk MX 8000 48/24 Channel 8-BUS Mixing Console With Power Supply

Behringer Eurodesk

MX8OOOA

Professional 48/24 channel inline mixing console

Very clean, mint condition recording/mixing console. Studio use only with new 400 watt power supply and recently serviced. This low noise analogue board was designed to be a head-to-head competitor for the Mackie and served me well without fault for many years, other than recent service to have it cleaned and checked out with a new power supply replacement.

·          Additional 24 input Mix-B channels, all with individual 2-band EQ, level, pan and mute

·          Dedicated 4-band EQ with 2 semi-parametric mid bands offering an extremely wide swept range from 50 Hz to 20 kHz

·          Up to 6 assignable aux sends buses, all switchable pre- / post-fader

·          6 stereo aux returns with multiple routing options

·          8 subgroups simultaneously feed 24 multitrack outputs

·          +15 dB gain available on all aux sends and returns

·          Highest quality discrete balanced mic preamps low-cut 100 Hz 12 dB/oct. and 48 V phantom power

·          Balanced tape in / outs, switchable for -10 dBV or +4 dBu operation

·          Channel, group and mix insert points

·          100 mm high-precision logarithmic, tapered faders, with big console performance

·          Separate solo in place and PFL buses available

·          2 track tape monitoring with multiple routing options

·          2 separate headphone mixes and talkback facility with built-in microphone

·          High-quality sealed rotary pot controls ensuring long lifetime and durability

·          State-of-the-art op-amps and highest quality components for crystal clear audio performance

·          BNC connectors for 12 V gooseneck lights

·          Expander port providing universal 1/4" link facilities to any other console

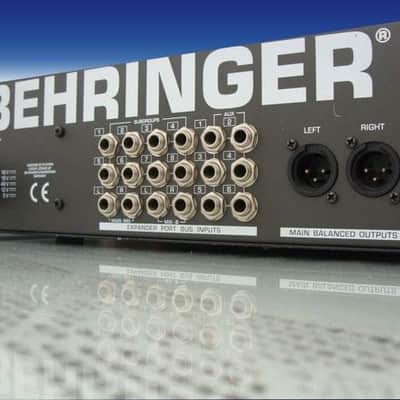

·          400 Watts rugged external 19" power supply with superior transient response

 Manufactured under ISO9000 certified management system

SPECIFICATIONS

Main channel strip

Mic input                                         electronically balanced, discrete input configuration Mic E.I.N. (22 Hz to22 kHz)       -129.0 dBu, 150 Ohms source

-117.3 dBqp, 150 Ohms source

-132.0 dBu, input shorted

-122.0 dBqp, input shorted

Distortion (THD & N)           0.007 % at +4 dBu, 1 kHz, bandwidth 80 kHz Gainrange                                       +10 dB to +50 dB

Max. input                              +12 dBu

Line input                                       electronically balanced Gainrange                                     unity to +40 dB

Max. input                              +22 dBu

Channel fader range                         +10 dB to -85 dB / off

Aux send gain range                         off to unity to +15 dB



Equalization

Hi shelving                                       12 kHz, +/- 15 dB

Hi mid sweep                                   300 Hz to 20 kHz, +/- 15 dB

Lo mid sweep                                   50 Hz to 3 kHz, +/- 15 dB

Lo shelving                                       80 Hz, +/- 15 dB

Lo cut (HPF)                                   100 Hz, 12 dB/oct. (butterworth)



Channel direct out

Max. output                                      +22 dBu

Noise @unity gain                           -94 dBu

Output impedance                           120 Ohms

Tape returns                                     bal./unbal. 1/4" jacks, globally switchable from +4 dBu to -10 dBV



Channel insert

Max. in/out                                       +22 dBu

Channel to channel crosstalk           -95 dB @ 1 kHz



Mix B channel strip

Gain range                                       off to unity to +15 dB

Hi shelving                                       12 kHz, +/- 15 dB

Lo shelving                                       80 Hz, +/- 15 dB



Subgroup section

Noise                                                bus noise @ fader 0 dB:

-102.5 dBr (ref. +4 dBu)

-92.5 dBr (ref. +4 dBu, 24 chs. assigned (input B) & set @ unity gain)

-94.5 dBr (ref. +4 dBu, 16 chs. assigned (input B) & set @ unity gain) Submaster outputmax. out               +22 dBu balanced/unbalanced

Submaster insert max. out               +22 dBu

Submaster insert max. in                 +22 dBu

Fader range                                     +10 dB to -85 dB / off



Main mix section

Noise                                                bus noise @ fader 0 dB:

-101.0 dBr (ref. +4 dBu)

-92.5 dBr (ref. +4 dBu, 24 chs. assigned (input B) & set @ unity gain)

-94.5 dBr (ref. +4 dBu, 16 chs. assigned (input B) & set @ unity gain)

Max. output                                      +28 dBu balanced XLR, +22 dBu unbalanced 1/4" jacks

Aux returns gain range                     off to unity to + 20 dB

Aux sends max. out                         +22 dBu

General

Distortion (THD & N)           0.007 %, @ +4 dBu, 1 kHz, bandwidth 80 kHz

below 0.02 %, 22 Hz to 22 kHz at normal operating levels, any input to any output,bandwidth 80 kHz

Frequency response               20 Hz to 40 kHz, +/- 1 dB any input to any output

10 Hz to 120 kHz, +/- 3 dB

-102.5 dBr (ref. +4 dBu)

-92.5 dBr (ref. +4 dBu, 24 chs. assigned (input B) & set @ unity gain)

-94.5 dBr (ref. +4 dBu, 16 chs. assigned (input B) & set @ unity gain)



Power supply

External power supply           400 Watts, 19" (482.6 mm), 2.5 rack units, app. 8.3 kg



Dimensions/weight

Dimensions (H * W * D)        app. 3.54/5.5" (90/140 mm) * 37" (940 mm) * 29.5" (750 mm)

Weight                                   app. 27.3 kg (without PSU) =  60 lbs.
