Alpine KTA-450 + S2-S69C 4-Channel Amplifier 6x9" Component Speaker + Accessory Bundle

Alpine KTA-450 + S2-S69C 4-Channel Power Pack Amplifier, 6x9" Component Speaker & Accessory Bundle Upgrade your vehicle audio system with this Alpine and Absolute USA performance bundle featuring the compact Alpine KTA-450 4-channel Class-D Power Pack amplifier, Alpine S2-S69C Next-Generation S-Series 6x9-inch component speakers, Absolute TW500 Super Tweeters, BT1700 electrical tape, and a universal mobile phone holder. This package combines compact amplification, Hi-Res Audio Certified speaker performance, enhanced high-frequency output, and useful installation accessories in one convenient bundle. General Features

• Alpine KTA-450 4-Channel Class-D Power Pack Amplifier
• Alpine S2-S69C Next-Generation S-Series 6x9" Component Speaker Set
• Hi-Res Audio Certified Speaker System
• Absolute TW500 Super Tweeters
• Absolute BT1700 Electrical Tape
• Universal Mobile Phone Holder
• Compact Space-Saving Amplifier Design
• Alpine Dynamic Peak Power Technology
• 50 Watts RMS x 4 at 4 Ohms
• 45 Watts RMS x 4 at 2 Ohms
• Up to 100 Watts Dynamic Peak Power x 4
• 6x9" Component Woofers
• 3" Mid-Range Speakers with Integrated 3/4" Tweeters
• In-Line Crossovers
• Frequency Response up to 40kHz
• H.A.M.R. Surround Technology
• Polypropylene, Glass Fiber & Mica Cone Construction
• Designed for Custom Automotive Audio Systems

Alpine KTA-450 4-Channel Power Pack Amplifier The Alpine KTA-450 is a compact 4-channel Class-D amplifier designed to add substantial power to a vehicle audio system without requiring the space of a conventional full-size amplifier. Measuring approximately 7" wide x 3.5" high x 1.25" deep, its compact chassis allows flexible installation in space-limited locations. Alpine Dynamic Peak Power

• Alpine DPP – Dynamic Peak Power Technology
• Provides Additional Output During Dynamic Musical Passages
• Up to 100 Watts x 4 Dynamic Peak Power
• Designed to Deliver Strong Musical Impact from a Compact Amplifier

KTA-450 Power Output

• 50 Watts RMS x 4 at 4 Ohms @ 14.4V
• 45 Watts RMS x 4 at 2 Ohms @ 14.4V
• 100 Watts Dynamic Peak Power x 4 at 4 Ohms
• 100 Watts Dynamic Peak Power x 4 at 2 Ohms

KTA-450 Specifications

• Amplifier Type: 4-Channel Class-D
• THD at 10W / 4 Ohms: Less Than 0.2%
• THD at 10W / 2 Ohms: Less Than 0.1%
• THD at Rated Power / 4 Ohms: Less Than 0.1%
• THD at Rated Power / 2 Ohms: Less Than 0.1%
• Signal-to-Noise Ratio: Greater Than 85dB at 1W / 4 Ohms
• Frequency Response: 15Hz-50kHz, +0/-3dB
• RCA Input Sensitivity: 0.152-2.80V
• Speaker-Level Input Sensitivity: 0.33-6.05V
• Crossover: Variable HPF / LPF
• Crossover Settings: Off / 60Hz / 80Hz / 120Hz
• Dimensions: 7"W x 3.5"H x 1.25"D
• Weight: Approximately 1.3 lb
• PowerStack Compatible

Compact Installation Design

• Compact Power Pack Chassis
• Designed for Space-Limited Installations
• Recessed 22-Pin Harness Connection
• Helps Keep Wiring Organized
• PowerStack Mounting Bracket Included
• Compatible with Supported Alpine PowerStack Installations
• Alpine iLX-W650 Receiver Sold Separately

Alpine S2-S69C Next-Generation S-Series 6x9" Component Speakers The Alpine S2-S69C is a Hi-Res Audio Certified component speaker system designed to deliver detailed highs, clear midrange, and strong bass response. The 6x9-inch woofers use a composite cone made from polypropylene, glass fiber, and mica for lightweight performance, high output, and reduced distortion. S2-S69C Speaker Features

• Next-Generation Alpine S-Series
• 6x9" Component Woofer System
• 3" Mid-Range Speakers
• Integrated 3/4" Tweeters
• Hi-Res Audio Certified
• Frequency Response up to 40kHz
• Up to 85 Watts RMS Power Handling
• Up to 260 Watts Peak Power
• Polypropylene, Glass Fiber & Mica Cone
• H.A.M.R. High-Amplitude Multi-Roll Surround
• In-Line Crossovers
• Designed for OEM-Style Fitment
• Compatible with Alpine KTE-S69G Speaker Grilles
• KTE-S69G Grilles Sold Separately

H.A.M.R. Surround Technology Alpine's High-Amplitude Multi-Roll surround technology allows increased cone movement while helping maintain accurate control at higher output levels.

• Increased Woofer Excursion
• Designed for Stronger Bass Response
• Helps Maintain Accurate Cone Movement
• Designed for High Output with Reduced Distortion

S2-S69C Specifications

• Woofer Size: 6x9"
• Mid-Range Size: 3"
• Tweeter Size: 3/4"
• Speaker Type: Component System
• RMS Power Handling: Up to 85 Watts
• Peak Power Handling: Up to 260 Watts
• Frequency Response: 65Hz-40kHz
• Certification: Hi-Res Audio Certified
• Cone Material: Polypropylene, Glass Fiber & Mica
• Surround Type: H.A.M.R.
• Mid-Range / Tweeter: 3" Mid-Range with Integrated 3/4" Tweeter
• Crossovers: In-Line
• Fitment: OEM-Style
• Compatible Grille: Alpine KTE-S69G, Sold Separately

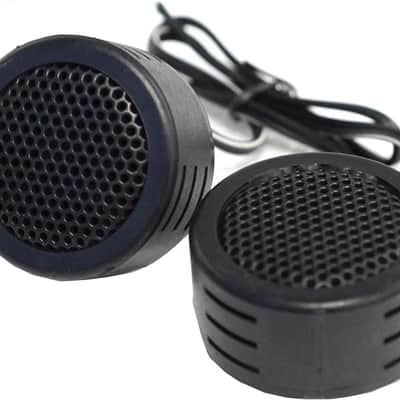

Absolute TW500 Super Tweeters Add extra high-frequency presence to the system with the included Absolute TW500 Super Tweeters.

• One Pair of Super Tweeters
• High-Efficiency High-Frequency Design
• Compact Construction
• Suitable for Factory & Aftermarket Audio Systems
• Designed for Custom Car Audio Installations
• Helps Add Brighter, More Pronounced High Frequencies

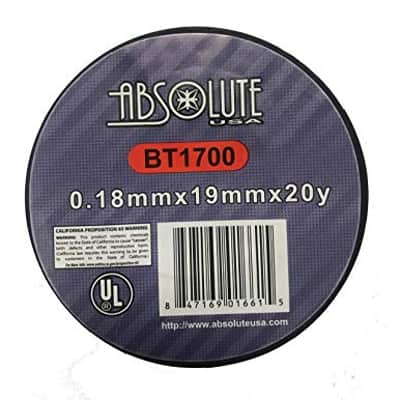

Absolute BT1700 Electrical Tape The included Absolute BT1700 electrical tape is ideal for insulating, securing, and organizing compatible automotive wiring connections during installation.

• Automotive Electrical Tape
• High-Adhesion Design
• Heat-Resistant Construction
• Flexible PVC Material
• Suitable for Car Audio Wiring & Installation

Universal Mobile Phone Holder The included universal phone holder provides a convenient mounting solution for keeping a compatible smartphone accessible while driving.

• Universal Smartphone Compatibility
• Adjustable Viewing Angle
• Secure Grip Design
• Suitable for Navigation & Music Control
• Convenient In-Vehicle Installation

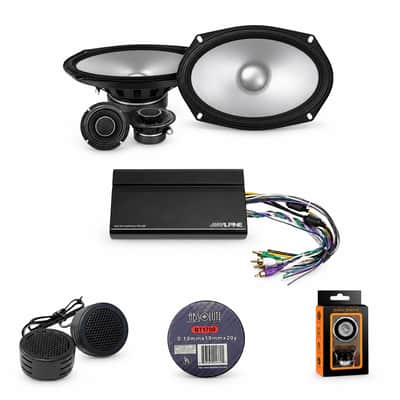

What's in this Package

• (1) Alpine KTA-450 4-Channel Power Pack Amplifier
• (1) Alpine S2-S69C Next-Generation S-Series 6x9" Component Speaker Set
• (1 Pair) Absolute TW500 Super Tweeters
• (1) Absolute BT1700 Electrical Tape
• (1) Universal Mobile Phone Holder

Installation Notes

• Verify speaker size, mounting depth, impedance, and vehicle compatibility before installation.
• The Alpine KTA-450 includes its manufacturer-supplied input/output/power harness and mounting hardware.
• The Alpine S2-S69C includes the matching 3" mid-range / 3/4" tweeter assemblies and in-line crossovers as part of the component system.
• Alpine KTE-S69G speaker grilles are sold separately.
• Additional wiring, speaker adapters, mounting brackets, amplifier integration equipment, or vehicle-specific accessories may be required.
• PowerStack compatibility applies only to supported Alpine receiver installations.
• Professional installation is recommended for proper system integration and performance.
