Alpine iLX-W670+S2-S65C+S2-S69+TW500+BT1700 Digital Multimedia Receiver & 1 Pair Type S 6.5" Component Speakers and 1 Pair Type S 6x9 Coax + Accessory Bundle

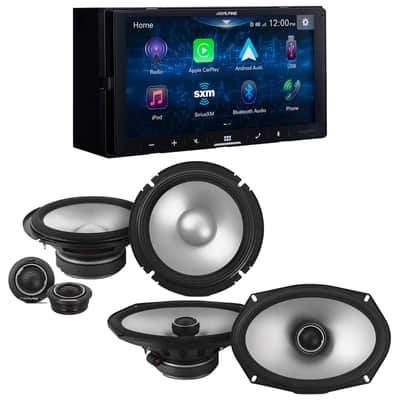

Alpine iLX-W670 7" Wired Apple CarPlay / Android Auto Receiver + S2-S65C 6.5" Component Speakers + S2-S69 6x9" Coaxial Speakers + Absolute Accessory Bundle Upgrade your vehicle with a complete Alpine multimedia and speaker package featuring the iLX-W670 7-inch digital multimedia receiver, one pair of S2-S65C 6.5-inch component speakers, and one pair of S2-S69 6x9-inch coaxial speakers. This bundle combines wired Apple CarPlay and Android Auto, Bluetooth connectivity, advanced sound tuning, Hi-Res Audio Certified speaker performance, and Alpine H.A.M.R. surround technology for a versatile front-and-rear audio upgrade. General Features

• Includes Alpine iLX-W670 7" Digital Multimedia Receiver
• Includes (1 Pair) Alpine S2-S65C 6.5" Component Speakers
• Includes (1 Pair) Alpine S2-S69 6x9" Coaxial Speakers
• Wired Apple CarPlay
• Wired Android Auto
• Bluetooth Hands-Free Calling & Audio Streaming
• SiriusXM-Ready
• 7" Double-DIN Touchscreen
• Customizable Home Screen
• 5-Color Key Illumination
• Sound Boost Audio Controls
• 13-Band Graphic Equalizer
• 6-Channel Time Correction
• Front, Rear & Subwoofer Crossovers
• Three 4V RCA Preamp Outputs
• Camera Input
• USB Input
• PowerStack Capable
• Lighting Link Compatible
• Hi-Res Audio Certified Speakers
• Frequency Response up to 40 kHz
• H.A.M.R. High-Amplitude Multi-Roll Surround Technology
• Polypropylene, Glass Fiber & Mica Speaker Cones
• Includes Absolute TW500 Super Tweeters
• Includes Absolute BT1700 Electrical Tape
• Includes Absolute Universal Mobile Phone Holder

Alpine iLX-W670 7" Digital Multimedia Receiver The Alpine iLX-W670 serves as the control center of this system with a 7-inch Double-DIN touchscreen, wired smartphone integration, Bluetooth connectivity, advanced sound adjustment, and multiple system-expansion options. Smartphone Connectivity

• Wired Apple CarPlay
• Wired Android Auto
• Compatible Smartphone Navigation
• Calling & Messaging Access
• Music & Streaming Applications
• Bluetooth Hands-Free Calling
• Bluetooth Wireless Audio Streaming

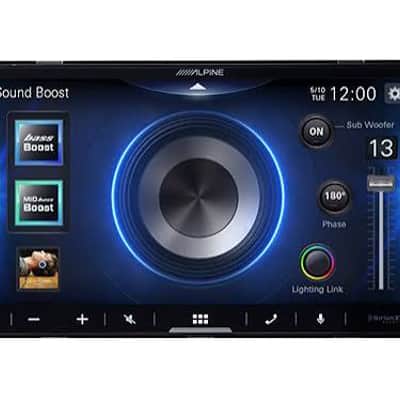

Audio Performance & Tuning Alpine's Sound Boost menu and advanced tuning controls allow the system to be adjusted for speaker placement, vehicle acoustics, and personal listening preferences.

• 13-Band Graphic Equalizer
• 6-Channel Time Correction
• Sound Boost Menu
• Bass Boost Control
• Mid-Bass Boost Control
• Subwoofer Level Control
• Front Crossover
• Rear Crossover
• Subwoofer Crossover
• Built-In Amplifier: 16 Watts RMS x 4
• Maximum Output: 45 Watts x 4

Inputs, Outputs & Expansion

• (1) Camera Input
• (1) USB Input
• Three Sets of 4V RCA Preamp Outputs
• Front RCA Output
• Rear RCA Output
• Subwoofer RCA Output
• SiriusXM-Ready
• PowerStack Capable
• Lighting Link Compatible

Alpine S2-S65C 6.5" Component Speaker System The Alpine S2-S65C component speaker system provides a dedicated 6.5-inch woofer and separate 1-inch tweeters for improved front-stage imaging and detailed high-frequency reproduction. Hi-Res Audio Certification supports extended response up to 40 kHz for clean, detailed sound. S2-S65C Features

• 6.5" Component Speaker System
• 6.5" Woofers
• Separate 1" Tweeters
• 240 Watts Maximum Peak Power
• 80 Watts Maximum RMS Power
• Frequency Response: 70 Hz-40 kHz
• Hi-Res Audio Certified
• Polypropylene, Glass Fiber & Mica Cone Construction
• Alpine H.A.M.R. Surround Technology
• 1" Tweeters with Threaded Removable Housings
• In-Line Crossovers
• Designed for OEM-Style Fitment
• Compatible with Alpine KTE-S65G Grilles
• KTE-S65G Grilles Sold Separately

Hi-Res Audio Performance The S2-S65C is designed to reproduce frequencies extending up to 40 kHz, providing greater high-frequency detail when used with compatible high-resolution audio sources and electronics. H.A.M.R. Surround Technology Alpine's High-Amplitude Multi-Roll surround allows greater controlled cone movement to help improve output and low-frequency performance while maintaining accurate cone control. Separate Component Tweeters The included 1-inch tweeters can be positioned independently from the woofers, providing greater installation flexibility and helping create a more focused front soundstage. Alpine S2-S69 6x9" Coaxial Speakers The Alpine S2-S69 combines a large 6x9-inch woofer with an integrated 1-inch tweeter in a compact coaxial configuration. Designed for strong full-range performance, these speakers provide up to 85 watts RMS power handling with Hi-Res Audio Certified frequency response extending to 40 kHz. S2-S69 Features

• 6x9" 2-Way Coaxial Speaker System
• Integrated 1" Tweeters
• 260 Watts Maximum Peak Power
• 85 Watts Maximum RMS Power
• Frequency Response: 65 Hz-40 kHz
• Hi-Res Audio Certified
• Polypropylene, Glass Fiber & Mica Cone Construction
• H.A.M.R. Surround Technology
• Designed for Strong Mid-Bass & Full-Range Performance
• Compatible with Alpine KTE-S69G Grilles
• KTE-S69G Grilles Sold Separately

Complete Front & Rear Speaker Upgrade The S2-S65C component speakers are ideal for applications where separate woofers and tweeters can be used to create a more detailed front soundstage, while the S2-S69 6x9-inch coaxial speakers provide powerful full-range output for compatible rear or door locations. Speaker System Specifications Feature S2-S65C S2-S69 Speaker Type 6.5" Component 6x9" Coaxial Tweeter Separate 1" Integrated 1" RMS Power 80W 85W Peak Power 240W 260W Frequency Response 70 Hz-40 kHz 65 Hz-40 kHz Hi-Res Audio Certified Yes Yes Cone Material Polypropylene / Glass Fiber / Mica Polypropylene / Glass Fiber / Mica Surround H.A.M.R. H.A.M.R. Optional Grille KTE-S65G KTE-S69G Absolute TW500 Super Tweeters The included Absolute TW500 Super Tweeters are designed to add additional high-frequency output and sound presence to compatible custom automotive audio systems. TW500 Features

• Pair of Super Tweeters
• High-Efficiency High-Frequency Design
• Compact Construction
• Factory & Aftermarket Audio Compatible
• Designed for Custom Car Audio Installations

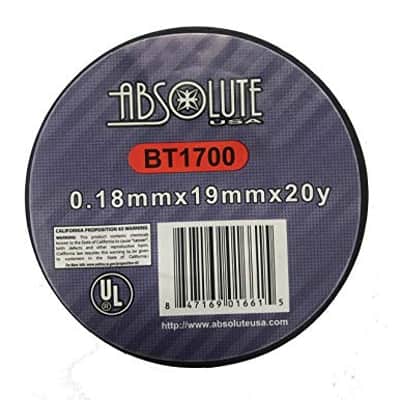

Absolute BT1700 Electrical Tape The included Absolute BT1700 electrical tape provides a convenient installation accessory for insulating, securing, and organizing compatible automotive wiring connections. BT1700 Features

• Automotive Electrical Tape
• High-Adhesion Design
• Heat Resistant
• Flexible PVC Construction
• Ideal for Car Audio Installation Wiring

Absolute Universal Mobile Phone Holder The included universal mobile phone holder provides a convenient mounting solution for keeping a compatible smartphone accessible for navigation, music, and everyday use. Phone Holder Features

• Universal Smartphone Compatibility
• Adjustable Viewing Angle
• Secure Grip Design
• Convenient In-Vehicle Installation

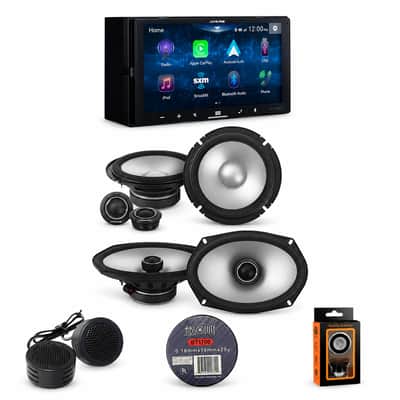

What's in this Package

• (1) Alpine iLX-W670 7" Digital Multimedia Receiver
• (1 Pair) Alpine S2-S65C 6.5" Component Speakers
• (1 Pair) Alpine S2-S69 6x9" Coaxial Speakers
• (1 Pair) Absolute TW500 Super Tweeters
• (1) Absolute BT1700 Electrical Tape
• (1) Absolute Universal Mobile Phone Holder

Installation Notes

• Apple CarPlay and Android Auto operation in this package is wired.
• Speaker fitment varies by vehicle. Verify speaker size, mounting depth, bolt pattern, and available clearance before installation.
• Vehicle-specific speaker adapters or wiring harnesses may be required.
• The S2-S65C component set requires proper placement of the separate tweeters and in-line crossovers.
• The S2-S69 speakers require compatible 6x9-inch mounting locations.
• The iLX-W670 built-in amplifier can operate compatible speakers, but an appropriately matched external amplifier may be used when greater output is desired.
• Vehicle-specific dash kits, radio wiring interfaces, antenna adapters, and steering wheel control interfaces may be required for receiver installation.
• SiriusXM operation requires a compatible tuner and subscription, sold separately.
• Professional installation is recommended.
