Alpine S2-A55V 5-Ch Amplifier + SS-SB10 10" Shallow Loaded Subwoofer + RUX-KNOB.2 Bass Knob + Accessory Bundle

Alpine S2-A55V 5-Channel Hi-Res Amplifier + SS-SB10 10" Shallow Loaded Subwoofer + RUX-KNOB.2 Bass Knob + Absolute Accessory Bundle Build a powerful space-saving Alpine S-Series audio system with the S2-A55V 5-channel Class-D amplifier, SS-SB10 single 10-inch shallow preloaded subwoofer enclosure, and RUX-KNOB.2 remote bass controller. The S2-A55V can power four full-range speakers plus the included 2-ohm SS-SB10 subwoofer from a single amplifier, while the shallow sealed enclosure delivers strong bass in vehicles with limited installation space. General Features

• Includes Alpine S2-A55V 5-Channel Class-D Amplifier
• Includes Alpine SS-SB10 10" Shallow Preloaded Subwoofer Enclosure
• Includes Alpine RUX-KNOB.2 Remote Bass Controls
• Hi-Res Audio Certified Amplifier
• Frequency Response up to 40 kHz
• 40W RMS x 4 + 200W RMS x 1 at 4 Ohms
• 60W RMS x 4 + 300W RMS x 1 at 2 Ohms
• 120W RMS x 2 bridged at 4 Ohms
• SS-SB10 Rated at 300 Watts RMS
• 2-Ohm Preloaded Subwoofer Configuration
• Ultra-Shallow 4.5" Enclosure Height
• Sealed Subwoofer Enclosure
• Gen2 DD-Linear Magnetic Circuit
• Front-Mounted Neodymium Magnet
• Adjustable Foam-Padded Steel Mounting Brackets
• Convenient In-Cabin Bass Adjustment
• Includes Absolute TW500 Super Tweeters
• Includes Absolute BT1700 Electrical Tape
• Includes Absolute Universal Mobile Phone Holder

Alpine S2-A55V S-Series 5-Channel Class-D Amplifier The Alpine S2-A55V provides five channels of efficient Class-D amplification from a single compact chassis, making it ideal for powering four full-range speakers and a dedicated subwoofer. Hi-Res Audio certification, adjustable crossover controls, and flexible system integration make it a strong foundation for a complete aftermarket audio system. S2-A55V Power Specifications

• Amplifier Type: 5-Channel Class-D
• 40 Watts RMS x 4 + 200 Watts RMS x 1 at 4 Ohms
• 60 Watts RMS x 4 + 300 Watts RMS x 1 at 2 Ohms
• 120 Watts RMS x 2 bridged at 4 Ohms
• Hi-Res Audio Certified
• Frequency Response: 20 Hz-40 kHz
• THD+N: Less Than 0.1% at 14.4V
• Signal-to-Noise Ratio: Greater Than 83 dB
• Damping Factor: Greater Than 100

S2-A55V Features

• Alpine S-Series Class-D Amplification
• Five-Channel Full-System Design
• Dedicated Subwoofer Channel
• Built-In Selectable Crossovers
• Adjustable Crossover Controls
• Selectable Remote Turn-On Circuit
• Factory & Aftermarket System Integration
• Two-Sided Terminal Layout
• Remote Bass Control Compatible

Alpine SS-SB10 10" Shallow Preloaded Subwoofer Enclosure The Alpine SS-SB10 is a compact, single 10-inch shallow preloaded subwoofer enclosure designed for installations with limited space. Its sealed cabinet measures only 4.5 inches in height while providing 300 watts RMS power handling and a 2-ohm nominal impedance. SS-SB10 Features

• Single 10" Shallow Preloaded Subwoofer
• Sealed Enclosure Design
• 300 Watts RMS Power Handling
• 2-Ohm Nominal Impedance
• Frequency Response: 35 Hz-200 Hz
• 2" Copper Voice Coil
• Single 2-Ohm Voice Coil Configuration
• 11mm One-Way Linear X-Max
• Front-Mounted Neodymium Magnet
• Alpine Gen2 DD-Linear Magnetic Circuit
• Rugged Polymer Enclosure
• Four Adjustable Foam-Padded Steel Mounting Brackets
• Designed for Space-Conscious Vehicle Installations

SS-SB10 Dimensions

• Width: 18.5"
• Height: 4.5"
• Depth: 12.5"

Shallow Space-Saving Design With its low-profile sealed enclosure, the SS-SB10 delivers strong bass response without the space of a traditional full-depth subwoofer enclosure. Its rugged polymer construction and flexible mounting system make it suitable for a variety of compact vehicle installations. Gen2 DD-Linear Magnetic Circuit Alpine's Gen2 DD-Linear Magnetic Circuit technology provides precise motor control for strong, controlled low-frequency output. The front-mounted neodymium magnet helps reduce overall enclosure depth while maintaining subwoofer performance. Adjustable Mounting System Four adjustable foam-padded steel brackets provide flexible mounting options while helping reduce unwanted vibration during playback. Alpine RUX-KNOB.2 Remote Bass Controller The included Alpine RUX-KNOB.2 provides convenient in-cabin bass-level adjustment for the compatible S2-A55V amplifier, allowing you to adjust subwoofer output without accessing the amplifier itself. RUX-KNOB.2 Features

• Remote Bass Level Controller
• Convenient In-Cabin Bass Adjustment
• Compatible with the Included S2-A55V
• Compact Control Design
• Allows Quick Subwoofer Level Adjustment
• Designed for Compatible Alpine Amplifier Systems

Amplifier & Subwoofer Power Matching The SS-SB10 has a 2-ohm nominal impedance and is rated for 300 watts RMS. The S2-A55V's dedicated subwoofer channel delivers 300 watts RMS x 1 at 2 ohms, making the included amplifier and loaded enclosure a well-matched combination when properly installed and configured. Absolute TW500 Super Tweeters Enhance the system's high-frequency output with the included Absolute TW500 Super Tweeters, designed to add brighter highs and increased sound presence to compatible automotive audio systems. TW500 Features

• Pair of Super Tweeters
• High-Efficiency High-Frequency Design
• Compact Construction
• Factory & Aftermarket Audio Compatible
• Designed for Custom Car Audio Installations

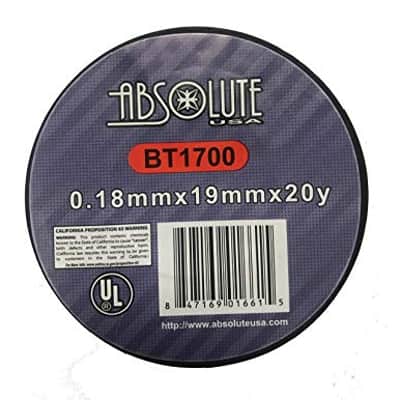

Absolute BT1700 Electrical Tape The included Absolute BT1700 electrical tape helps insulate, secure, and organize compatible automotive wiring connections during installation. BT1700 Features

• Automotive Electrical Tape
• High-Adhesion Design
• Heat Resistant
• Flexible PVC Construction
• Ideal for Car Audio Installation Wiring

Absolute Universal Mobile Phone Holder The included universal mobile phone holder provides a convenient mounting solution for keeping a compatible smartphone accessible for navigation, music, and everyday use. Phone Holder Features

• Universal Smartphone Compatibility
• Adjustable Viewing Angle
• Secure Grip Design
• Convenient In-Vehicle Installation
• Suitable for Navigation & Everyday Smartphone Access

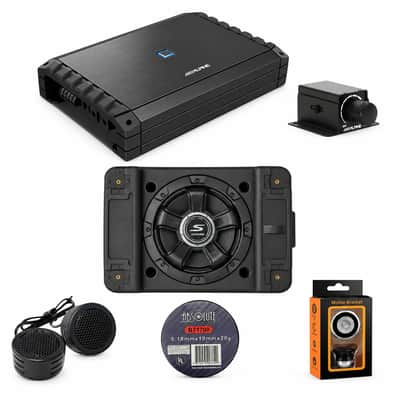

What's in this Package

• (1) Alpine S2-A55V 5-Channel Class-D Amplifier
• (1) Alpine SS-SB10 Single 10" Shallow Preloaded Subwoofer Enclosure
• (1) Alpine RUX-KNOB.2 Remote Bass Controllers
• (1 Pair) Absolute TW500 Super Tweeters
• (1) Absolute BT1700 Electrical Tape
• (1) Absolute Universal Mobile Phone Holder

Installation Notes

• The SS-SB10 is a 2-ohm loaded enclosure rated for 300 watts RMS.
• The S2-A55V subwoofer channel delivers 300 watts RMS x 1 at 2 ohms, matching the SS-SB10's stated RMS power handling.
• The S2-A55V can also provide four channels of amplification for compatible full-range speakers.
• Proper amplifier power wiring, ground wiring, fuse protection, speaker wire, RCA or speaker-level signal connections, and other installation accessories may be required.
• Verify mounting space for the SS-SB10 enclosure before installation.
• Secure the enclosure properly using the supplied mounting system.
• Professional installation and system tuning are recommended.
