Alpine S2-A55V 5-Ch Amp + S2-SB12 12" Loaded Subwoofer + RUX-KNOB.2 + Accessory Bundle

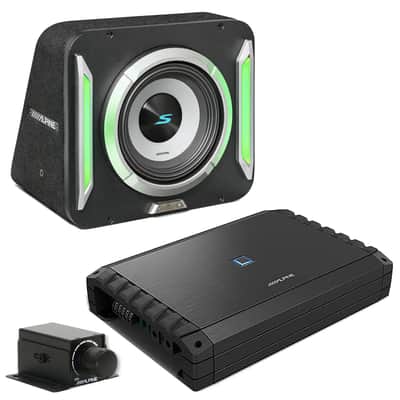

Alpine S2-A55V 5-Channel Hi-Res Amplifier + S2-SB12 12" Halo PrismaLink Loaded Subwoofer + RUX-KNOB.2 + Absolute Accessory Bundle Build a complete Alpine S-Series audio system with the S2-A55V 5-channel Class-D amplifier, S2-SB12 12-inch Halo PrismaLink preloaded subwoofer enclosure, and RUX-KNOB.2 remote bass controller. This package combines full-range speaker amplification, dedicated subwoofer power, Hi-Res Audio performance, deep bass, and customizable RGBW enclosure lighting in one coordinated vehicle audio upgrade. General Features

• Includes Alpine S2-A55V 5-Channel Class-D Amplifier
• Includes Alpine S2-SB12 12" Halo PrismaLink Preloaded Subwoofer Enclosure
• Includes Alpine RUX-KNOB.2 Remote Bass Controllers
• Hi-Res Audio Certified Amplifier up to 40 kHz
• 40W RMS x 4 + 200W RMS x 1 at 4 Ohms
• 60W RMS x 4 + 300W RMS x 1 at 2 Ohms
• 120W RMS x 2 bridged at 4 Ohms
• Preloaded Alpine S2-W12D4 12" Subwoofer
• 600 Watts RMS / 1800 Watts Peak Subwoofer Power Handling
• 2-Ohm Final Loaded Enclosure Impedance
• Sealed Wedge Enclosure
• RGBW PrismaLink Trim-Bar Lighting
• 12 Static Lighting Colors
• 4 Dynamic Lighting Modes
• IR Remote Lighting Control
• Multi-Link Capable with Optional KTX-LK12
• Includes Absolute TW500 Super Tweeters
• Includes Absolute BT1700 Electrical Tape
• Includes Absolute Universal Mobile Phone Holder

Alpine S2-A55V S-Series 5-Channel Class-D Amplifier The Alpine S2-A55V delivers five channels of efficient Class-D amplification from a single chassis, powering up to four full-range speakers plus a dedicated subwoofer. Hi-Res Audio certification and a frequency response extending to 40 kHz help deliver detailed, accurate system performance. S2-A55V Power Specifications

• Amplifier Type: 5-Channel Class-D
• 40 Watts RMS x 4 + 200 Watts RMS x 1 at 4 Ohms
• 60 Watts RMS x 4 + 300 Watts RMS x 1 at 2 Ohms
• 120 Watts RMS x 2 bridged at 4 Ohms
• Hi-Res Audio Certified
• Frequency Response: 20 Hz-40 kHz
• THD+N: Less Than 0.1%
• Signal-to-Noise Ratio: Greater Than 83 dB
• Damping Factor: Greater Than 100

Amplifier Features

• Alpine S-Series Class-D Amplifier Circuit
• Five-Channel Full-System Design
• Dedicated Subwoofer Channel
• Built-In Selectable Crossovers
• Adjustable Crossover Controls
• Selectable Remote Turn-On
• Two-Sided Terminal Layout
• Designed for Factory & Aftermarket Audio Systems
• Remote Bass Control Capability

Alpine S2-SB12 12" Halo PrismaLink Preloaded Subwoofer Enclosure The Alpine S2-SB12 combines a preloaded 12-inch S2-W12D4 S-Series subwoofer with a sealed wedge-style enclosure and integrated PrismaLink RGBW lighting. The result is strong low-frequency performance with a customizable illuminated design that adds both sound and visual impact to the vehicle. S2-SB12 Features

• Preloaded Alpine S2-W12D4 12" Subwoofer
• Sealed Wedge Enclosure
• 600 Watts RMS Power Handling
• 1800 Watts Peak Power Handling
• 2-Ohm Final Impedance
• Dual 4-Ohm Voice Coils Wired for 2-Ohm Load
• Frequency Response: 23 Hz-215 Hz
• Sensitivity: 86 dB
• 15mm One-Way X-Max
• 2.6" Voice Coil
• 64 oz Magnet
• Carbon Fiber / Polypropylene Subwoofer Cone
• Alpine H.A.M.R. Surround Technology
• RGBW PrismaLink Lighting
• Multi-Link Capable

S2-SB12 Enclosure Dimensions

• Width: 16.5"
• Height: 15"
• Depth: 13.25"

PrismaLink RGBW Lighting Integrated RGBW trim-bar lighting gives the S2-SB12 a customizable look that complements the vehicle's interior or audio installation. Lighting Features

• RGBW Trim-Bar Illumination
• 12 Static Colors
• 4 Dynamic Lighting Modes
• Included IR Remote Lighting Control
• Compatible Lighting-Link Functionality with Supported Alpine Systems
• Multi-Link Design for Compatible Multiple-Enclosure Installations

Multi-Link Capability Multiple compatible PrismaLink enclosures can be connected using the optional Alpine KTX-LK12 linking bracket, sold separately, for larger custom installations. Alpine S2-W12D4 Subwoofer Performance The preloaded S2-W12D4 uses a carbon fiber and polypropylene cone with Alpine's High-Amplitude Multi-Roll surround technology to provide strong cone excursion and controlled bass performance.

• 12" S-Series Subwoofer
• 600 Watts RMS
• 1800 Watts Peak
• Dual 4-Ohm Voice Coils
• 2-Ohm Final Load in S2-SB12 Enclosure
• Frequency Response: 23 Hz-215 Hz
• 15mm One-Way Linear Excursion
• H.A.M.R. Surround

Amplifier & Subwoofer Power Matching The S2-SB12 presents a 2-ohm load to the amplifier. At 2 ohms, the S2-A55V's dedicated subwoofer channel delivers 300 watts RMS x 1. The S2-SB12 is rated to handle up to 600 watts RMS, meaning the included amplifier operates below the enclosure's maximum RMS power-handling capability. Alpine RUX-KNOB.2 Remote Bass Controller The included Alpine RUX-KNOB.2 provides convenient in-cabin bass adjustment for compatible Alpine amplifier applications, letting you adjust subwoofer level without accessing the amplifier. RUX-KNOB.2 Features

• Remote Bass Level Controller
• Convenient In-Cabin Adjustment
• Compact Installation Design
• Designed for Compatible Alpine Amplifier Systems
• Allows Quick Bass-Level Changes

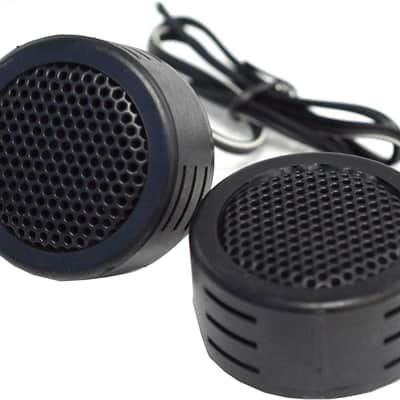

Absolute TW500 Super Tweeters Enhance the system's high-frequency output with the included Absolute TW500 Super Tweeters, designed to add brighter highs and increased sound presence to compatible automotive audio systems. TW500 Features

• Pair of Super Tweeters
• High-Efficiency High-Frequency Design
• Compact Construction
• Factory & Aftermarket Audio Compatible
• Designed for Custom Car Audio Installations

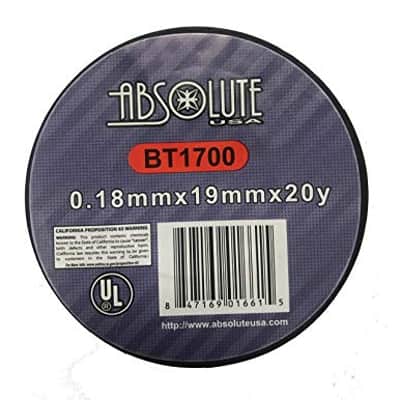

Absolute BT1700 Electrical Tape The included Absolute BT1700 electrical tape helps insulate, secure, and organize compatible automotive wiring connections during installation. BT1700 Features

• Automotive Electrical Tape
• High-Adhesion Design
• Heat Resistant
• Flexible PVC Construction
• Ideal for Car Audio Installation Wiring

Absolute Universal Mobile Phone Holder The included universal mobile phone holder provides a convenient mounting solution for keeping a compatible smartphone accessible for navigation, music, and everyday use. Phone Holder Features

• Universal Smartphone Compatibility
• Adjustable Viewing Angle
• Secure Grip Design
• Convenient In-Vehicle Installation
• Suitable for Navigation & Everyday Smartphone Access

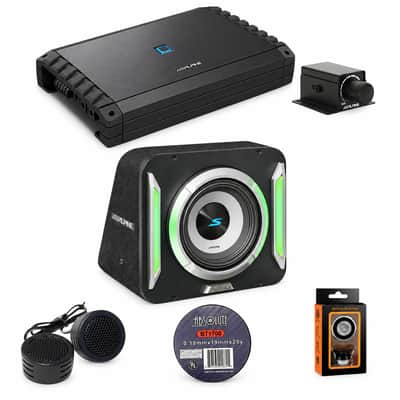

What's in this Package

• (1) Alpine S2-A55V 5-Channel Class-D Amplifier
• (1) Alpine S2-SB12 12" Halo PrismaLink Preloaded Subwoofer Enclosure
• (1) Alpine RUX-KNOB.2 Remote Bass Controllers
• (1 Pair) Absolute TW500 Super Tweeters
• (1) Absolute BT1700 Electrical Tape
• (1) Absolute Universal Mobile Phone Holder

Optional Accessories

• Alpine KTX-LK12 PrismaLink Enclosure Linking Bracket – Sold Separately

Installation Notes

• The S2-SB12 has a 2-ohm final impedance and is rated for 600 watts RMS.
• The S2-A55V provides 300 watts RMS x 1 at 2 ohms from its dedicated subwoofer channel.
• The S2-SB12's 600-watt RMS rating reflects its power-handling capability; the included S2-A55V does not deliver 600 watts to the enclosure.
• The remaining four S2-A55V channels can power properly matched full-range speakers.
• Verify RUX-KNOB.2 compatibility with the intended amplifier control configuration before installation.
• PrismaLink lighting requires proper electrical connection and configuration.
• A properly sized amplifier wiring kit, fuse protection, ground wiring, speaker wire, signal cables, and other installation accessories may be required.
• Verify enclosure dimensions and available vehicle space before installation.
• Professional installation and system tuning are recommended.
