Alpine KAC-CMD-CTR Power Sports Commander + KTA-30FW 4-Ch Amp + Accessory Bundle

Alpine KAC-CMD-CTR Power Sports Commander + KTA-30FW 4-Channel Weather-Resistant Amplifier + Absolute Accessory Bundle Build a powerful powersports or marine audio system with the Alpine KAC-CMD-CTR Power Sports Commander and Alpine KTA-30FW 4-channel Tough Power Pack amplifier. Designed for UTVs, ATVs, side-by-sides, boats, motorcycles, and other open-air vehicles, this package combines Bluetooth 5.2 connectivity, a bright 3-inch color display, advanced audio tuning, IP66 weather resistance, and 75 watts RMS x 4 of Class-D amplification in a compact, installation-friendly system. General Features

• Includes Alpine KAC-CMD-CTR Power Sports Commander
• Includes Alpine KTA-30FW 4-Channel Class-D Amplifier
• Designed for Powersports & Marine Audio Applications
• Suitable for UTVs, ATVs, Side-by-Sides, Boats & Motorcycles
• IP66 Weather-Resistant Controller
• IP66 Weather-Resistant Amplifier
• Bluetooth 5.2
• Bluetooth Hands-Free Calling
• Bluetooth Wireless Audio Streaming
• 3" Full-Color Display
• 320 x 240 Screen Resolution
• Built-In 17W RMS x 4 Controller Amplifier
• KTA-30FW Output: 75W RMS x 4
• Up to 150W x 4 Dynamic Peak Power
• 7-Band Parametric Equalizer
• Variable High-Pass & Low-Pass Filters
• Dedicated Subwoofer Control
• Three 4V RCA Preamp Outputs
• USB, AUX & Camera Inputs
• Compact Gauge-Hole Controller Installation
• Compact Tough Power Pack Amplifier Design
• Includes Absolute TW500 Super Tweeters
• Includes Absolute BT1700 Electrical Tape
• Includes Absolute Universal Mobile Phone Holder

Alpine KAC-CMD-CTR Power Sports Commander The Alpine KAC-CMD-CTR provides a compact multimedia control solution for powersports and marine audio systems. Its 3-inch full-color display, glove-friendly rotary knob, Bluetooth 5.2 connectivity, USB and AUX inputs, built-in amplification, and advanced sound controls make it an excellent source unit for outdoor audio installations. 3" Full-Color Display

• 3" Square Full-Color Screen
• 320 x 240 Pixel Resolution
• Non-Touchscreen Interface
• Bright Sunlight-Readable Display
• 5-Level Dimmable Illumination
• Large Rotary Control Knob
• Glove-Friendly Function Buttons
• Designed for Outdoor Visibility

Bluetooth 5.2 Connectivity

• Bluetooth Version 5.2
• Wireless Audio Streaming
• Hands-Free Calling
• Compatible with iPhone
• Compatible with Android through Bluetooth Streaming
• Convenient Wireless Music Control

Audio Sources & Connectivity

• USB Input
• AUX Input
• Camera Input
• Bluetooth Audio Streaming
• Supports Multiple Digital Audio Formats

Supported Audio Formats

• AAC
• FLAC
• MP2
• MP3
• M4A
• OGG
• WAV
• WMA

Built-In Amplifier

• Built-In 4-Channel Amplifier
• 17 Watts RMS x 4 Channels
• Designed to Power Compatible Speakers Directly
• Expandable with External Amplifiers

Advanced Audio Tuning The KAC-CMD-CTR provides flexible sound adjustment through a built-in 7-band parametric EQ, high-pass and low-pass filters, and dedicated subwoofer level control.

• 7-Band Parametric EQ
• Adjustable High-Pass Filter
• Adjustable Low-Pass Filter
• Subwoofer Level Control
• Front, Rear & Subwoofer System Expansion

Three 4V RCA Preamp Outputs

• Front 4V RCA Preamp Output
• Rear 4V RCA Preamp Output
• Subwoofer 4V RCA Preamp Output
• Designed for External Amplifier Integration

IP66 Weather-Resistant Construction The KAC-CMD-CTR is engineered for demanding outdoor applications with IP66-rated protection designed to resist dust and water exposure.

• IP66 Weather Rating
• Designed for Powersports Use
• Suitable for Marine Applications
• Built for Dusty & Wet Environments
• Operating Temperature: -20°C to 60°C

Compact 3" Gauge-Hole Installation The Power Sports Commander fits a standard 3-inch round gauge opening with its rear U-bracket, making it ideal for installations with limited dashboard space. Alpine KTA-30FW Tough Power Pack 4-Channel Amplifier The Alpine KTA-30FW adds powerful four-channel Class-D amplification in a compact, weather-resistant chassis. Designed for marine and powersports applications, it delivers 75 watts RMS x 4 channels, plus Dynamic Peak Power technology for higher output during demanding musical passages. KTA-30FW Power Features

• 4-Channel Class-D Amplifier
• 75 Watts RMS x 4 Channels
• Up to 150 Watts x 4 Dynamic Peak Power
• Dynamic Peak Power Technology
• Designed for Full-Range Speaker Systems
• Compact Tough Power Pack Design

Flexible System Integration

• Selectable Speaker-Level / RCA Inputs
• Selectable 2-Channel / 4-Channel Input
• Variable Input Gain
• Adjustable Crossovers
• High-Pass, Low-Pass, or Off Crossover Modes
• Crossover Frequency: 50 Hz-400 Hz
• Crossover Slope: 12 dB/Octave
• High-Level Input Range: 0.5V-10V
• Low-Level Input Range: 0.2V-4V

Weather-Resistant Amplifier Design The KTA-30FW features an IP66-rated chassis and waterproof connection system designed for environments where conventional amplifiers may be exposed to water spray, dust, or open-air conditions.

• IP66 Weather Resistance
• Rugged Outdoor Construction
• Waterproof Connector Design
• Suitable for Boats
• Suitable for UTVs & Side-by-Sides
• Suitable for Motorcycles
• Suitable for Open-Top Vehicles

KTA-30FW Specifications

• Amplifier Type: Class-D
• Channels: 4
• RMS Power: 75W x 4
• Dynamic Peak Power: Up to 150W x 4
• Operating Voltage: 14.4V
• Signal-to-Noise Ratio: 82 dB
• Selectable Speaker / RCA Inputs
• Variable Input Gain
• 2-Channel / 4-Channel Input Selection
• Adjustable HP / LP Crossovers
• Crossover Range: 50 Hz-400 Hz
• Crossover Slope: 12 dB/Octave
• Weather Rating: IP66

Compact Amplifier Dimensions

• Width: 9-3/16"
• Height: 1-5/8"
• Depth: 3-3/4"

Complete Powersports & Marine Audio Platform The KAC-CMD-CTR acts as the system's source and control center, while the KTA-30FW provides significantly greater power for compatible full-range speakers. Three 4V RCA outputs also make it easy to expand the system later with additional amplification or a dedicated subwoofer amplifier. Absolute TW500 Super Tweeters Enhance the system's high-frequency output with the included Absolute TW500 Super Tweeters, designed to add brighter highs and increased sound presence to compatible audio systems. TW500 Features

• Pair of Super Tweeters
• High-Efficiency High-Frequency Design
• Compact Construction
• Compatible with Custom Automotive & Powersports Audio Systems

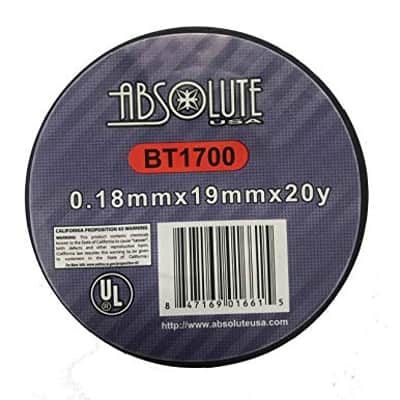

Absolute BT1700 Electrical Tape The included Absolute BT1700 electrical tape provides a convenient installation accessory for insulating, securing, and organizing compatible wiring connections. BT1700 Features

• Automotive Electrical Tape
• High-Adhesion Design
• Heat Resistant
• Flexible PVC Construction
• Ideal for Audio Installation Wiring

Absolute Universal Mobile Phone Holder Keep a compatible smartphone conveniently accessible for navigation, music, and everyday use with the included universal mobile phone holder. Phone Holder Features

• Universal Smartphone Compatibility
• Adjustable Viewing Angle
• Secure Grip Design
• Convenient In-Vehicle Installation

Perfect For

• UTVs
• ATVs
• Side-by-Sides
• Boats
• Marine Audio Systems
• Motorcycles
• Open-Top Vehicles
• Powersports Audio Systems
• Custom Outdoor Audio Installations

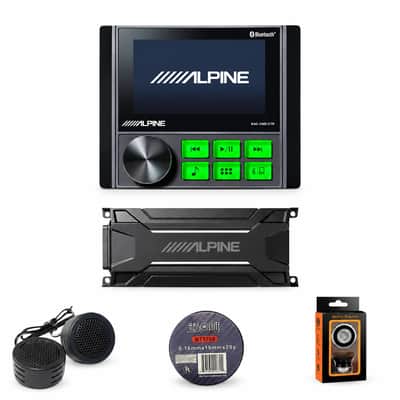

What's in this Package

• (1) Alpine KAC-CMD-CTR Power Sports Commander
• (1) Alpine KTA-30FW 4-Channel Weather-Resistant Tough Power Pack Amplifier
• (1 Pair) Absolute TW500 Super Tweeters
• (1) Absolute BT1700 Electrical Tape
• (1) Absolute Universal Mobile Phone Holder

Installation Notes

• The KAC-CMD-CTR includes a built-in 17W RMS x 4 amplifier, while the included KTA-30FW provides up to 75W RMS x 4 for compatible speakers.
• Use the KTA-30FW with speakers whose impedance and power handling match the amplifier.
• Proper power wiring, ground wiring, fuse protection, speaker wire, and signal connections are required.
• Additional installation accessories may be required depending on the vehicle or vessel.
• Camera operation requires a compatible camera, sold separately unless otherwise included.
• Use weather-resistant installation practices for exposed powersports and marine applications.
• Professional installation is recommended.
