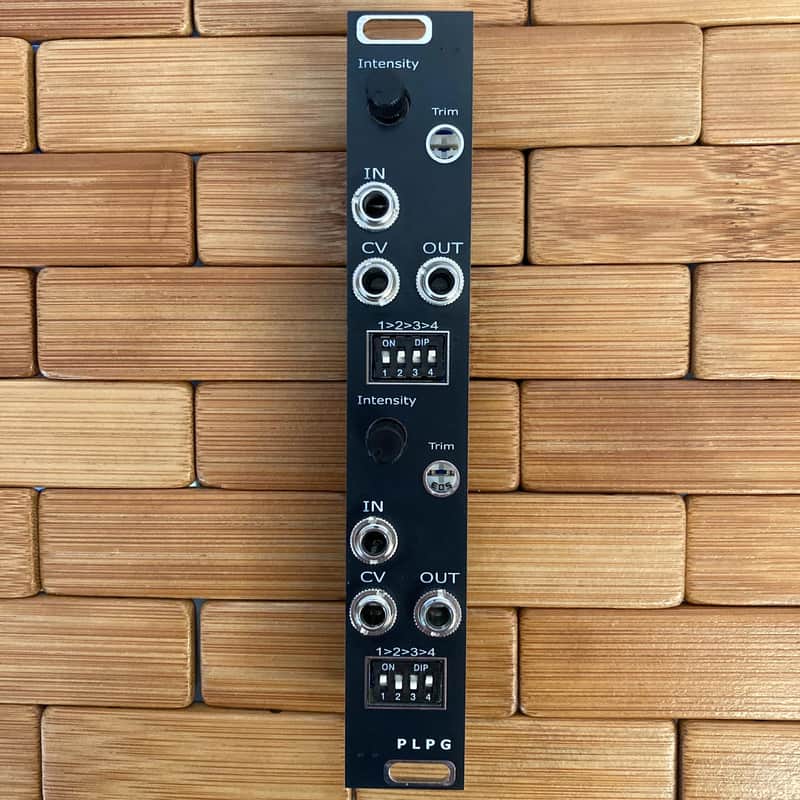

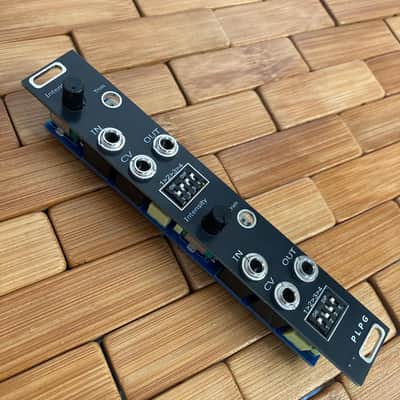

LinguaeDevices: Dual Passive Lowpass Gate - 4hp Eurorack Module

This module is passive, requiring no power.

Ins/outs:

-Audio input.

-CV input.

-Audio output.

~~~~Circuit Function~~~~

-The audio input sees a light dependent resistor.

-This LDR is optically coupled to a green LED - which is driven by the CV input.

As the current into the LED increases, LDR resistance drops, the filter cutoff ascends, and signal attenuation is reduced. - Amplitude and filter cutoff are coupled to one another. Creating a more organic decay quality.

- Intensity control, adjusts current into the LED - The same is true for the trim control, which is meant to set a baseline.

-There is a 4x4 Capacitor bank, with selections via a dip switch, for each section. This allows the user to select between 15 different capacitance values for the low pass filter - as well, when all switches are null, the circuit acts purely as an optical attenuator.

Capacitor values are staggered, to ensure a lack of redundancy through the various combinations - and a range that extends by more than an order of magnitude.

***For the CV input - The LED is protected from reverse bias, with a schottky.

CV input accepts 0v-10v.

~~~~

Included with order:

- Power Connectors

- M3 Mounting Screws.
