de Lisle Amp-Speaker Selector 4×4 Pro Amplifier Cabinet Switcher w/ FX Loop and Attenuator Loop

Reasonable Offers Are Always Welcome!!

 I will ship this de Lisle Amp-Speaker 4x4 Pro to you for FREE, as long as you're in the US. This item will be mailed by USPS Priority mail, fully insured, very well packed!! Tracking info will be messaged to you and updated on Reverb as soon as it’s out my door and on its way to yours!!

This unit was only used in my pet and smoke free home and was never abused!!  It is in excellent condition and works great.  These sell for $999 plus shipping!  I am priced to sell fast, I do take “reasonable” offers, but I also like to see how this does for the first week or two on Reverb at almost a 50% discount!

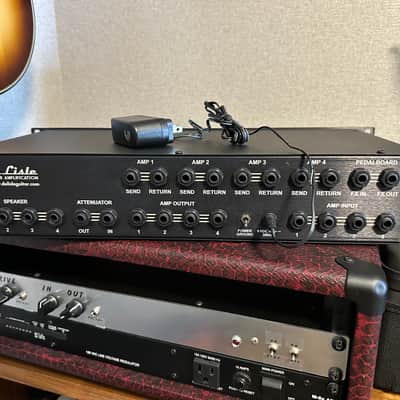

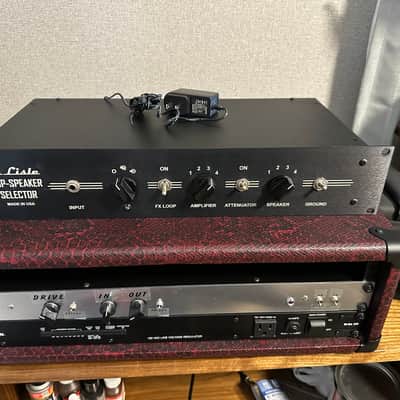

The first two pictures (with the white background) are generic pictures of the unit.

I DO NOT HAVE THE ORIGINAL BOX OR MANUAL. THE UNIT WILL BE BUBBLE WRAPPED AND SECURELY SHIPPED!! THE MANUAL CAN BE DOWNLOADE/VIEWED AT:

delisleguitar.com/manuals/DELISLE-SELECTOR-MANUAL-4X4-PRO.pdf

From the de Lisle website:

The de Lisle Amp-Speaker 4x4 Pro was designed to improve workflow in the studio by eliminating the need to re-cable amps, fx and cabs. This version expands on our previous designs by incorporating simultaneous input switching, fx loop switching and an attenuator loop.

Turning the front panel Amplifier dial will do the following:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load
• Route the Pedalboard In / Out to the active amp's FX send and return jacks
• Place unused amp FX loops in bypass

When activated, the attenuator follows the selected amp and cabinet, so you can easily connect your Ox, Fryette, etc. to any combination of amplifier and cabinet. Should you prefer to go straight from amp to cabinet, just place the Attenuator switch in the down position to bypass the attenuator loop. Similarly, the active amp's FX loop can be bypassed by placing the FX Loop switch in the down position.

The 4x4 Pro runs off a 2.1mm/5.5mm center negative 12V supply, which is boosted internally for increased signal headroom. Amplifiers are transformer isolated to prevent ground loops.

Patent Pending.

Specs and Features

• Input Impedance: 1 Meg
• Output Impedance: 500 Ohm
• Input Sensitivity: +20 Vp-p
• Switching Time: 4-8ms
• Contact Resistance: 0.075 Ohm
• Power Consumption: 2.14W Max
• Guitar / Pedalboard Input (1)
• Amplifier Input (4)
• FX Send (4)
• FX Return (4)
• Amplifier Output (4)
• Speaker Input (4)
• Attenuator Input (1)
• Attenuator Output(1)
• Attenuator Bypass Switch
• FX Bypass Switch
• FX Input
• FX Output
• Signal Ground Switch
• Power Ground Switch
• Transformer Isolation
• Internally Isolated DC Power Supply
• Silver Relay Contacts with Gold Overlay
• Protection Loads for Unused Amplifiers
• Auto Muting of Unused Amplifiers
• Auto Bypass of Unused Amplifier FX Loops
• Premium 2U Rack Chassis with Laser Etched Panels
• 12VDC 700mA Power Supply Included (200mA Minimum Required)
• Hand-Wired
• 150W Maximum Power Per Amplifier
• Lifetime Warranty
• Manual: delisleguitar.com/manuals/DELISLE-SELECTOR-MANUAL-4X4-PRO.pdf

Any questions or want more pictures please don't hesitate to ask! Thanks for looking at this de Lisle Amp-Speaker 4x4 Pro, if you decide to purchase it, you'll absolutely dig it!!

And again, I will ship this de Lisle Amp-Speaker 4x4 Pro to you for FREE, as long as you're in the US. This item will be mailed by USPS Priority mail, fully insured, very well packed!! Tracking info will be messaged to you and updated on Reverb as soon as it’s out my door and on its way to yours!!

Lastly, if you take a look at my address, you will see that it says "FPO AP". If you are not familiar with that type of address, it's simply an address that the military provides to service members that are stationed overseas.

I am currently in Japan, but when I ship I utilize the USPS Office that is on the military base. Normal transit times for packages from my location to you would be about 10-15 days (that is when the USPS is doing their job correctly!), Recently more towards 15-20 days to arrive.. I just want to be very clear up front!

Looking forward to giving you an awesome Reverb experience!
