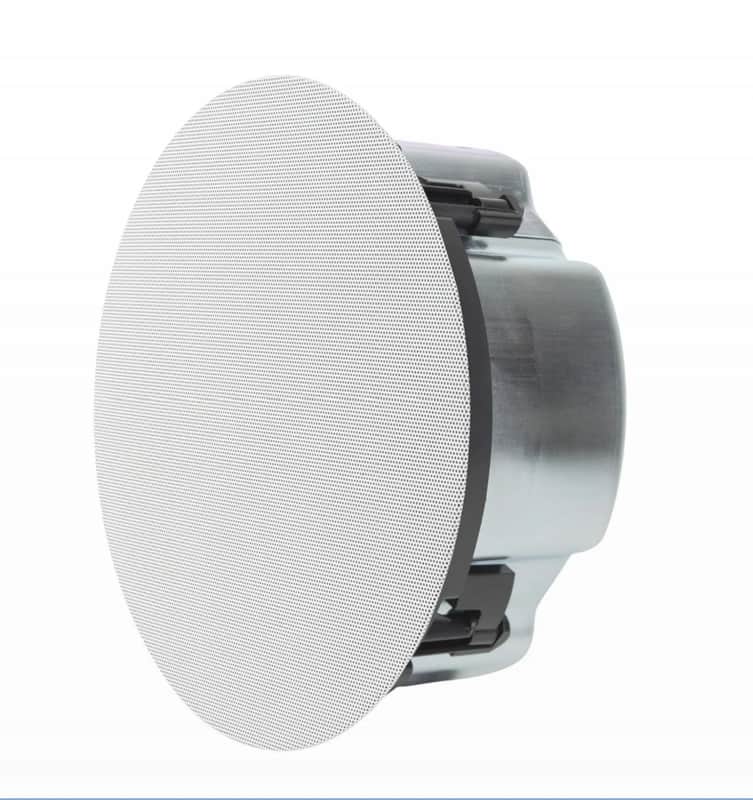

Sonance PS-C63RTLP 6.5" Low Profile Ceiling Speaker

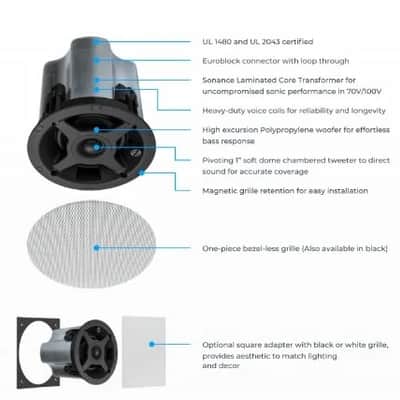

The Sonance PS-C63RTLP in-ceiling speaker has a shallow 4.37" design for tight spaces, a bezel-less magnetic grille, optional square adapter, high-excursion 6.5" woofer, and pivoting tweeter for precise sound. Its sealed metal enclosure includes knock-outs, a removable Euroblock connector, and seismic attachment. It is UL 1480 and UL 2043 certified.

• Class-leading sensitivity & sonic performance

• Exceptional off-axis response

• Heavy duty voice coil for longevity and reliability

• Full-fidelity transformer for uncompromised tonality

• Consistent voicing across product range

• Bezel-less design for clean and minimalistic aesthetic

• Optional black grilles in round or square

• Magnetic grille retention for fast installation and removal

• Finger-adjustable selector tap

• One-step simplified painting process

Specifications

SKU

45182 (White)

HF Driver

1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled

LF Driver

6.5" (165mm) Polypropylene Cone, Butyl Rubber Surround

Frequency Response (+/- 10db)

49Hz-25kHz

Frequency Response (+/- 3db)

65Hz - 20kHz

Power Handling (RMS)

120W program, 60W pink noise

Sensitivity

91dB (2.83V/1m)

Rated Maximum SPL

108dB @ 1 meter (3.3 feet), 116dB peak

Nominal Impedance (Ohms)

8 ohms

Transformer Taps

70 V / 100 V: 60W, 30W and 15W 70 V: 7.5W

Dimensions (Diameter x D)

11.06" x 4.37" (280.92mm x 111.0mm)

Cut-Out Dimensions (Diameter)

10.125" (257.18mm)

Knockout

One, Side mounted 0.75" (19mm)

Weight

10 lbs. (4.54kg)

Grille

One Piece Paintable Grille with Magnetic Retention

Input Connector

Four pin, Euroblock with loop output connections

Certifications

UL 1480; UL 2043; NFPA 90A; NFPA 70

Suspension Points

One, on top surface

Maximum SPL (Peak)

116dB peak
