Universal Audio Apollo 16 MKII QUAD Thunderbolt 2 Audio Interface 2010s - Black
This seller has not set a shipping cost for Australia. Please contact them to ask about shipping.
Predicted to Sell Soon
Only 1 available and 1 other person has this in their cart

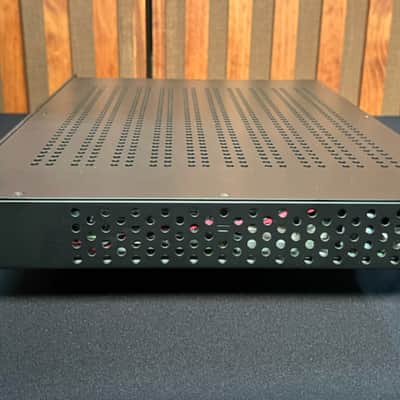

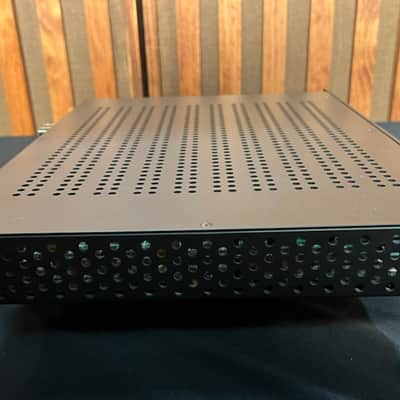

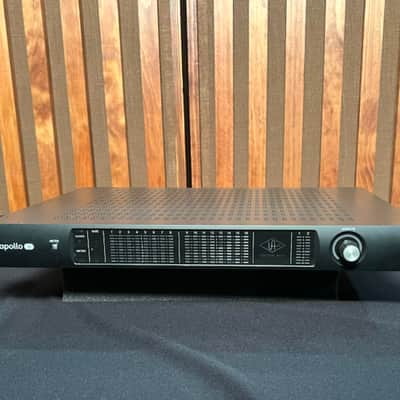

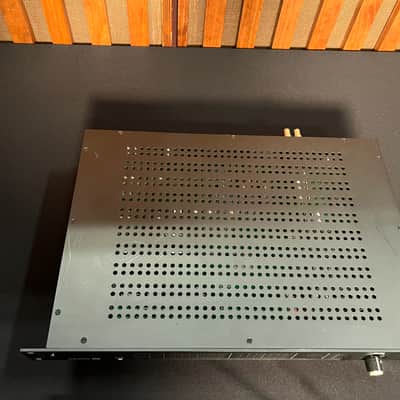

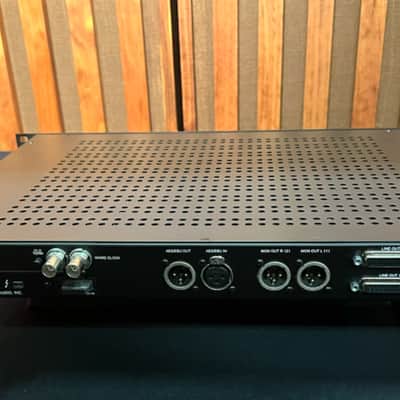

16 in and 16 out on dsubs on Thunderbolt 2. This is one of the most popular interfaces in the recording world. A Univeral Audio legend. We used this in a professional smoke free studio and got great results. It was working perfectly and tested every day it was in the rack until the day it was pulled and boxed. There is some minimal rack wear but nothing bad - it's all in the pictures. sn. 68
Manufacturer Specifications:
Key Features
- Next-generation Apollo A/D and D/A conversion for professional music production
- 16 x 16 analog I/O via DB-25 connectors — ideal for pairing with mixing
- Onboard UAD-2 QUAD Core DSP allows Realtime UAD Processing
- 18 x 20 Thunderbolt 2 audio interface with powerful Console 2.0 software control
- Cascade up to 4 Apollo interfaces and 6 UAD devices total over Thunderbolt
- Includes “Realtime Analog Classics Plus” UAD plug-in bundle
- World class UA analog design, superior components, and premium build quality
Audio Interface
- Sample rates up to 192 kHz at 24-bit word length
- 16 x 18 simultaneous analog input/output channels:
- 16 channels of analog-to-digital conversion via line inputs on dual DB25 connectors
- 18 channels of digital-to-analog conversion:
- 16 line outputs via dual DB25 connectors
- Stereo monitor outputs via dual XLR connectors
- Adjustable reference levels for all analog I/O (+4 dBu or -10 dBV)
- Two channels of AES/EBU digital I/O with optional sample rate conversion on input
- Front panel pre-fader metering of analog signal input or output levels
- Two Thunderbolt 2 ports for daisy-chaining other Thunderbolt devices
Monitoring
- Independently-addressable stereo monitor outputs (in addition to 16 line outputs)
- Digitally-controlled analog monitor outputs maintains highest fidelity
- Front panel control of monitor levels and muting
- Front panel pre-fader metering of monitor bus levels
- Digital AES/EBU outputs can mirror the analog monitor outputs
UAD-2 QUAD Inside
- Four SHARC® DSP processors
- Realtime UAD Processing on all of Apollo 16’s analog and AES/EBU inputs
- Same features and functionality as other UAD-2 products when used with DAW
- Can be combined with other UAD-2 devices for increased mixing DSP
- Complete UAD Powered Plug-Ins library is available online
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | 7 days ago |
|---|---|
| Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
| Sample Rate |
|
| Bus-Powered |
|
| Digital Input Format |
|
| Electronics |
|
| Digital Output Format |
|
| Compatibility |
|
| Bit Depth |
|
| Computer Connectivity |
|
| Format |
|
| Simultaneous I/O |
|
| Number of Channels |
|
| Number of Headphone Outputs |
|
| Number of MIDI Outputs |
|
| Number of MIDI Inputs |
|
| Number of Digital Outputs |
|
| Number of Digital Inputs |
|
| Number of Analog Outputs |
|
| Number of Analog Inputs |
|
| Number of Mic Preamps |
|
