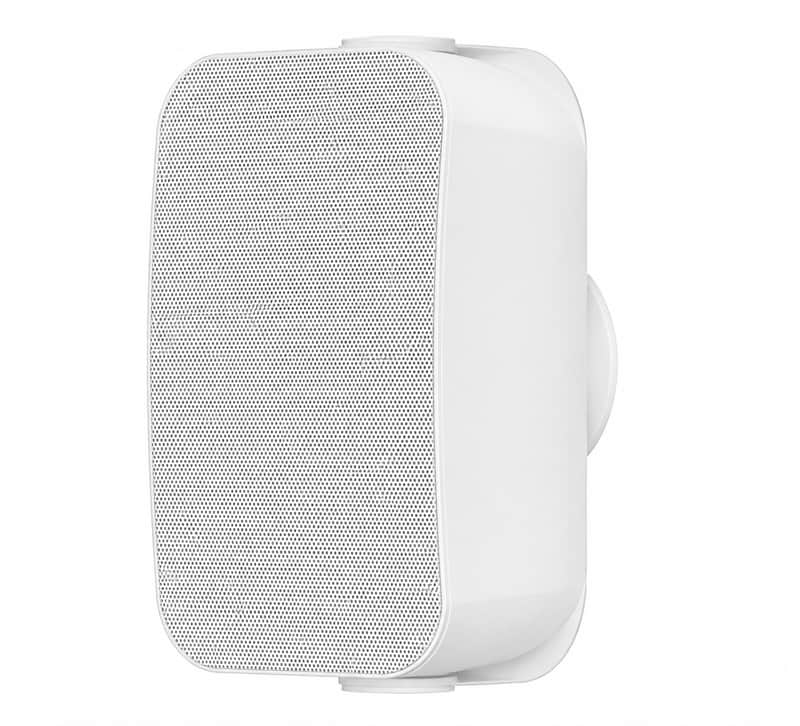

Sonance PS-S85T White Professional Surface Mount Speaker

The PS-S85T is a high-output surface-mount loudspeaker built for commercial environments. Its UL94V-0 polypropylene enclosure and IPX4 ingress protection support both indoor and outdoor deployment, while the 8" aluminum woofer and neodymium compression driver deliver 93dB sensitivity and selectable dispersion patterns.

Key Features

• Field-selectable 120° or 80° dispersion coverage

• Horn and collar assembly ships in-box; field-adjustable

• 1.4" compression driver engineered for high-SPL commercial environments

• Extended low-frequency response

• Integrated 70V/100V transformer, 120W max tap

• Part of a complete High Output form factor family

  Specifications

  SKU

  40236 (Black - RAL 7021), 40235 (White - RAL 9003)

  HF Driver

  1.4" (36mm) aluminum dome compression driver, 36mm Voice Coil Size, 1" (25mm) Exit Size, Neodymiu...

  LF Driver

  8" (203mm) aluminum cone, Santoprene surround, 60.55mm Voice Coil Size, Ferrite Magnet

  Frequency Response (+/- 10db)

  36.6Hz - 25kHz

  Frequency Response (+/- 3db)

  41.4Hz - 20kHz

  Power Handling (RMS)

  150 watts (600 watts peak), 100 hours

  Sensitivity

  93dB SPL

  Enclosure

  Polypropylene plastic (UL94V-0)

  Rated Maximum SPL

  114dB, 120dB peak

  Nominal Impedance (Ohms)

  8 ohms

  Transformer Taps

  70 V / 100 V: 120W, 60W and 30W 70 V: 15W

  Coverage Pattern 1kHz to 10kHz

  120 or 80 Degree Axis Symmetric

  Dimensions (WxHxD)

  11.57" x 19.47" x 10.25" (293.88mm x 494.54mm x 260.35mm)

  Weight

  29.3 lbs. (13.29kg)

  Grille

  Steel

  Input Connector

  Four pin, Euroblock with loop output connections

  Certifications

  UL 1480A;CSA-C22.2 No.205;NFPA70;NFPA 90A

  Suspension Points

  Top, Bottom and Back

  Maximum SPL (Peak)

  120dB peak

  Architectural Specifications

  The loudspeaker shall be of the two-way type comprising a single surface mount enclosure containi...
