SMSL M500 Mk1 Es9038 Dac - Headphone Amplifier - Black

Tested fully working Smsl M500 Mk1 usb dac and headphone amplifier with remote control. See below for specs.

From Smsl

Features:

Supports MQA decoding;

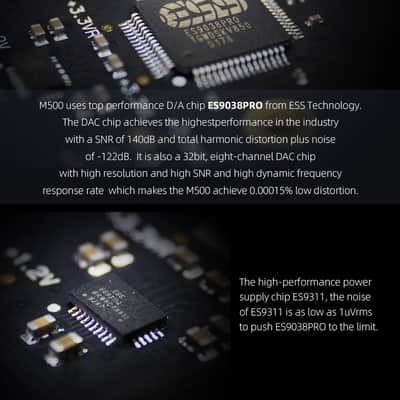

The top performance D/A chip ES9038PRO from ESS Technology;

The high-performance power supply chip ES9311, the noise of ES9311 is as low as
1uVrms, to push ES9038PRO to the limit;

XMOS XU-216, true 32bit audio processing, supports DoP and Native DSD, and reaches
32bit/768kHz and DSD512;

Ultra-low phase noise and optimized clock processing circuit are used to achieve
ultra-low clock jitter;

All inputs support DSD streaming, including coaxial and optical (DoP64);

Independent headphone volume design, does not interfere with the preamp volume;

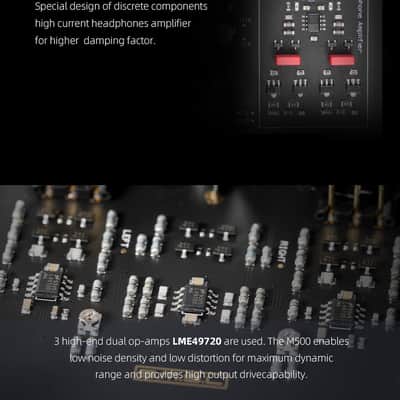

Special design of discrete components high current headphones amplifier for higher
damping factor;

Use tempered glass display panel for higher light transmission and longer service life;

Built-in shielded, low noise power supply processing, while improving power efficiency,
lower power consumption;

High quality gold-plated input and output jacks;

3 high-end dual op-amps OPA1612 and a lot of audio grade components are used;

2.19 inch LG TFT LCD display;

JAS Hi-Res certification;

Equipped with remote control and full-function remote control.

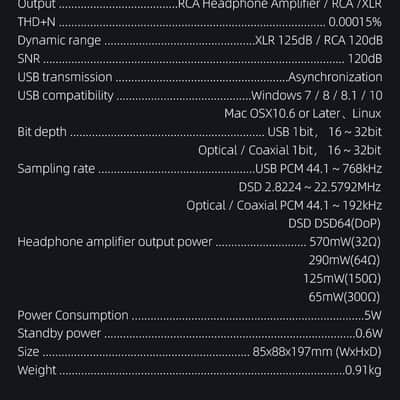

Specifications:

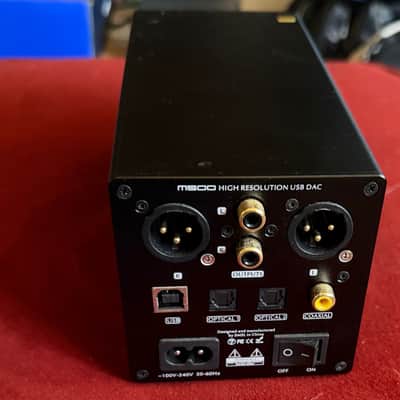

Input： USB / Opticalx2 / Coaxial
Output ：RCA Headphone Amplifier/ RCA /XLR
THD+N ：0.00015%
Dynamic range ： XLR 125dB
RCA 120dB
SNR ：120dB
USB transmission ：Asynchronization
USB compatibility：Windows 7 / 8 / 8.1 / 10, Mac OSX10.6 or Later、Linux
Bit depth ：USB 1bit， 16 ~ 32bit
Optical / Coaxial 1bit， 16 ~ 32bit
Sampling rate ：USB PCM 44.1 ~ 768kHz
DSD 2.8224 ~ 22.5792MHz
Optical / Coaxial PCM 44.1 ~ 192kHz
DSD DSD64(DoP)
Headphone amplifier output power：570mW(32Ω)
290mW(64Ω)
125mW(150Ω)
65mW(300Ω)
Power Consumption ：5W
Standby power ： <0.5W
Size ： 85x88x197mm (WxHxD)
Weight ：0.91kg
