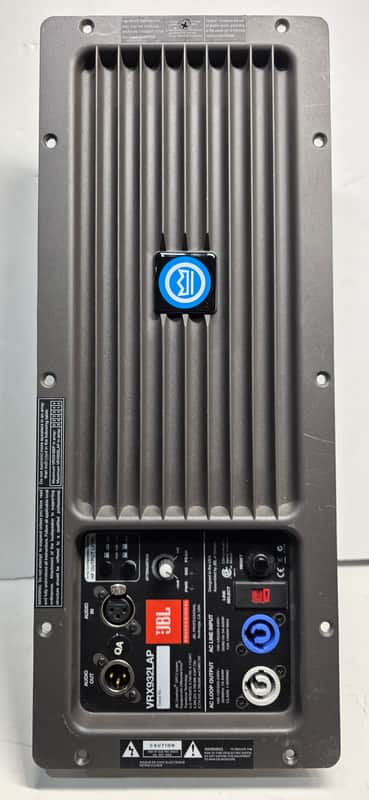

JBL VRX932LAP amp module Part # 363679-004X Clean Condition 100%

JBL   VRX932LAP   Power Amp Module
Fully Working 100%. Super clean, no issues.

Use in original cabinet or in custom built cabinets.
Dimensions:

Cut Out:

17" Wide

6" High

Outside Frame:

18.25" Wide

7.25" High

Specs:

Bandpass Nominal Impedance: LF: 2 x 2 ohms

HF: 4 ohms

DPC-2 Internal Amplification

Output (at nominal load): 1750 Watts Peak, 875 Watts Continuous

DPC-2 Output as (Continuous IEC shaped pink noise into rated load impedance): LF: 750 Watts, HF: 125 Watts

Audio Input Connector: XLR with loop through

User Controls: Input Attenuator (0-16 dB)

ACS (Array Configuration Selector),

HF level adjustment (+3 dB, 0 dB, -3dB)

Signal Processing: DSP based, resident in Input Module

System Management: DSP based limiters for mechanical and thermal protection.

AC Power Operating Range: 90-132 VAC or 216-264 VAC, 50/60Hz

AC Line Voltage: User selectable: 120V/240V (-15%, +10%)

AC Input Connector: Neutrik PowerCon (NAC 3MPA)

AC Loop Through Connector: Neutrik PowerCon (NAC 3MPB)

AC Current Requirements: 6A per system at 120V, 3A per system at 240V
