ROLAND TM6 pro trigger module for drums perfect tm6 complete

Very clean

Works perfectly

Tested

After market power supply but compatible

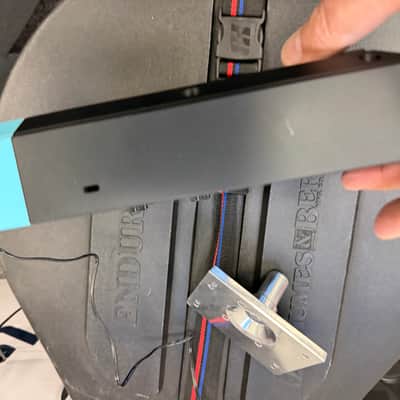

Comes with the mounting plate

Will pack safely and ship timely

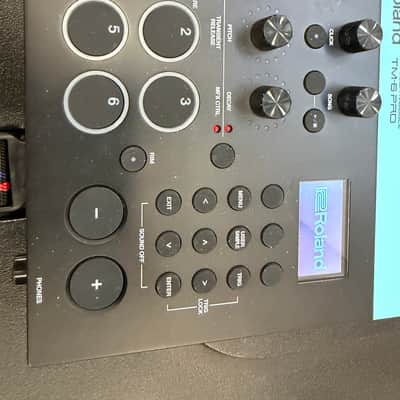

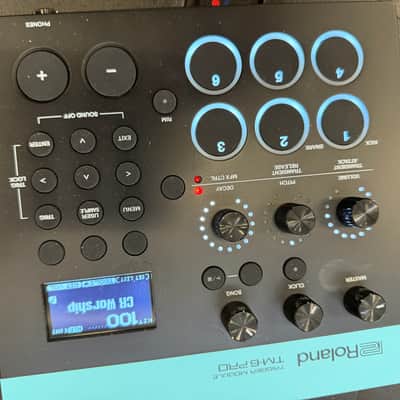

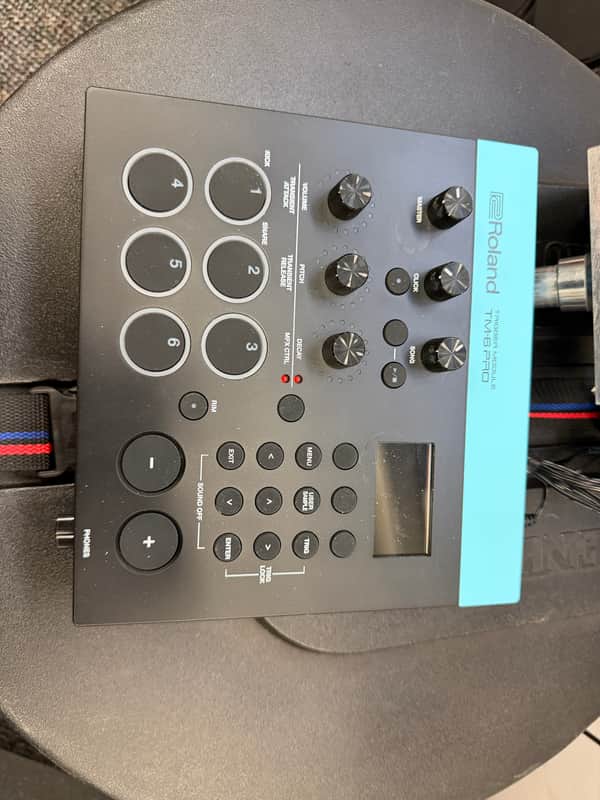

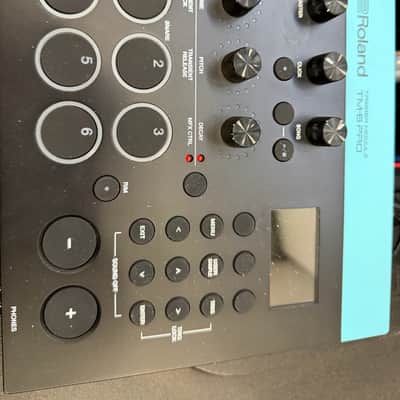

Up for sale is a Roland TM-6 Pro Drum Trigger Module in excellent cosmetic and 100% fully functional condition. It has been lightly used in a smoke-free home studio and kept in great shape.

The screen is clear, all knobs, buttons, and trigger inputs operate perfectly with no issues. The unit has been updated to the latest firmware and factory reset, so it’s completely ready to plug and play right out of the box.

What’s Included:

• Roland TM-6 Pro Module

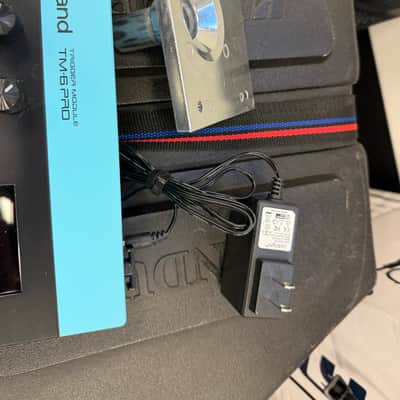

• Power Adapter

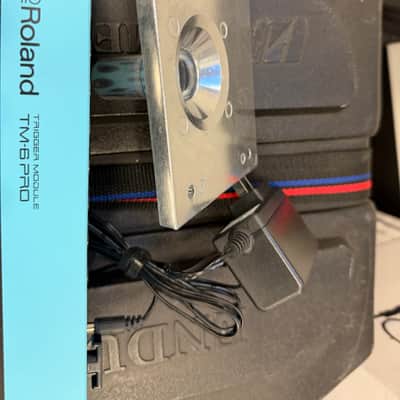

• Mounting Plate & Screws

Here are the technical specifications for the Roland TM-6 Pro, formatted and ready to append to your listing or reference:

### **Technical Specifications: Roland TM-6 Pro**

#### **Kits & Sounds**

* **Drum Kits:** 80 preset kits

* **Preloaded Sounds:** 500 sampled sounds + 268 V-Drums sounds

* **User Sample Import:** Up to 1,000 samples via SD card

* **User Sample Format:** WAV (44.1 kHz, 16/24-bit)

* **Total Sample Time:** 48 minutes (mono) / 24 minutes (stereo) total user memory

#### **Inputs & Outputs**

* **Trigger Inputs:** 6 \times 1/4\text{"} TRS dual-trigger inputs (supports up to 12 inputs using Y-splitter cables)

* **Control Inputs:**

* 1 \times 1/4\text{"} Hi-Hat Control jack (FD-8 compatible)

* 1 \times 1/4\text{"} Footswitch jack

* **Main Audio Outputs:** 2 \times 1/4\text{"} TS (Master Out L/Mono, R)

* **Direct Outputs:** 4 \times 1/4\text{"} TS (Assignable Direct Out 1–4)

* **Headphones:** 1 \times 1/4\text{"} Stereo jack

* **MIDI:** MIDI OUT (5-pin DIN)

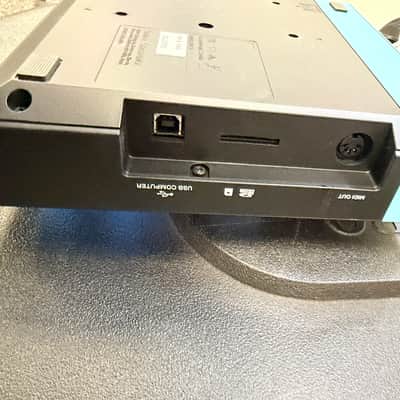

* **USB Port:** USB Type-B (Audio/MIDI interface with 8-in / 8-out USB Audio capability)

#### **Storage & Effects**

* **External Storage:** SD/SDHC card slot (supports up to 32 GB)

* **Effects Engine:** Independent EQ, Transient Control, Compressor, and Multi-Effects (MFX) per trigger input, plus Master EQ and Master Compressor

* **Backing Track / Click:** Independent volume knobs for Song, Click, and Headphones

#### **Dimensions & Power**

* **Dimensions:** 9\text{" (W)} \times 9\text{-}3/16\text{" (D)} \times 2\text{-}5/8\text{" (H)} (228 \text{ mm} \times 233 \text{ mm} \times 66 \text{ mm})

* **Weight:** 2 lbs 4 oz (1.0 kg)

* **Power Supply:** AC Adapter (Roland PSB-5U, DC 9V)
