Custom Aluminum 4u 84HP Powered Eurorack Case Intellijel Format 1u

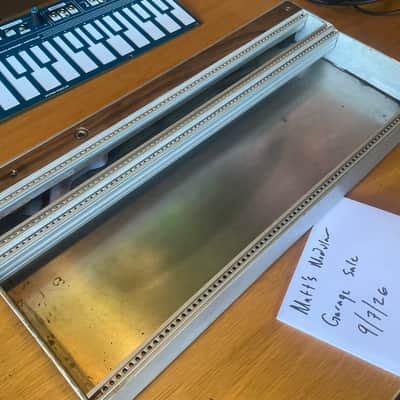

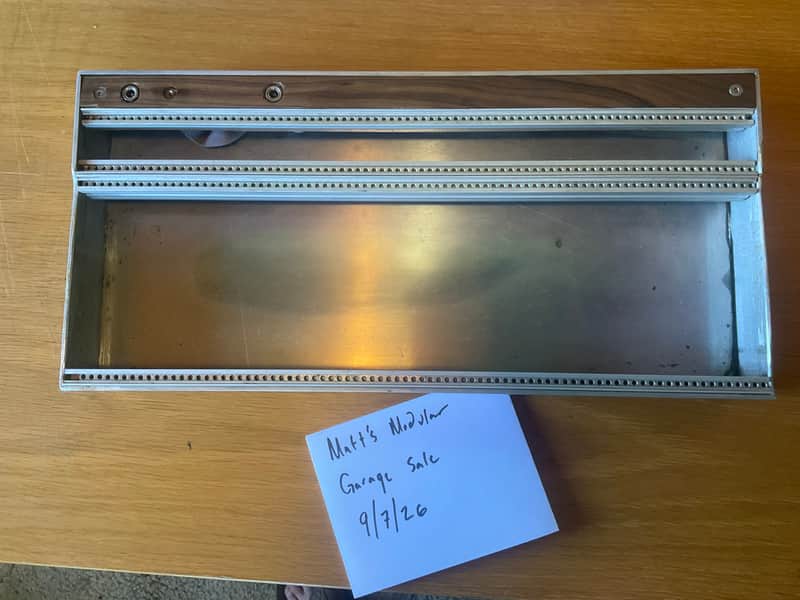

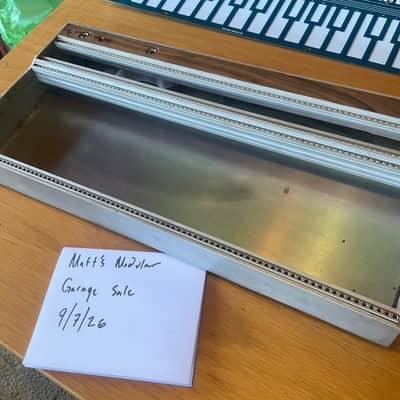

Used Excellent Condition Custom Aluminum Eurorack Modular Synth Case.

4u 84HP (3u +Intellijel Format 1u row). Walnut inlay across the top of case hides the power system.

Power is 4ms Row Power 30 w/ 4ms Bus Stick and Includes Meanwell power brick.

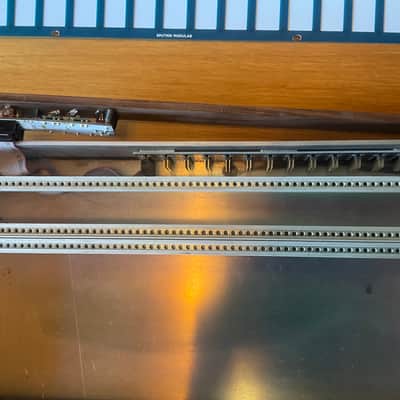

The Bus Stick offers 13 power headers (this could be increased w/ flying bus cables or additional daisy chained 4ms bus sticks). Threaded rails for 3mm screws.

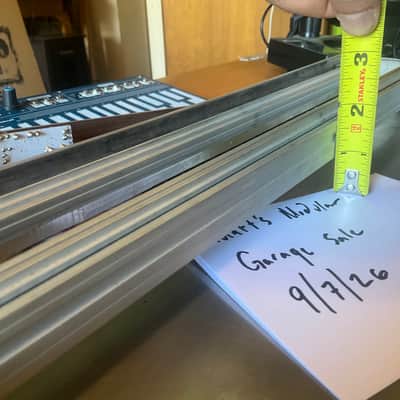

Case depth pictured with tape measure 1-11/16", previous owner was able to: "fit my Monome Crow module (listed depth = 41mm)".

Case will ship via USPS priority mail flat rate w/tracking and estimated ship time of 3 days w/in the continental US.

4ms Row Power 30 Specs from their website:

Basic Features:

• Two power jacks for daisy-chaining multiple ROW POWERS: a common laptop-style power brick could power 3-5 rows (typical)
• On/off switch cuts power without interrupting the daisy-chain
• ROW POWER 30 provides more than enough power for a 84HP or 104HP row of modules.
• Ultra-clean: Each rail is separately regulated with high-grade components
• Runs cool: ROW POWER is efficient so it won't heat up your system. Electronics like to chill!
• Skiff-friendly: only 27mm (1.1") with power connectors installed.
• CV/Gate headers for expansion
• PCB supports blade tabs for power entry, to be used in custom installations (e.g. if the 4HP panel is not used)

Electrical and Mechanical Specifications:

• Module Size:
• • 4 HP Eurorack format module
• Power Output:
• • +12V @ 1.5A, -12V @ 0.75A, +5V @ 0.5A
• Powered by laptop-style DC power supply: 2.1mm barrel, positive center, 15V-20V.
• A 90W power brick typically powers about 416HP (4 rows of 104HP).
