Moog - 959 X-Y Controller - Vintage - Rare

In excellent condition.

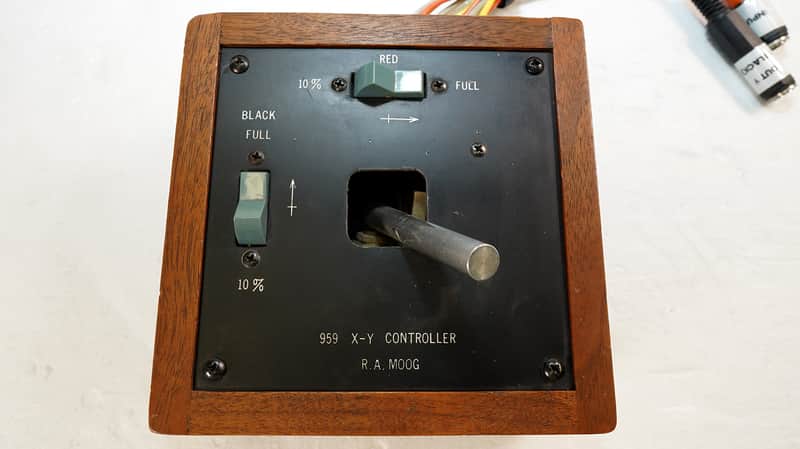

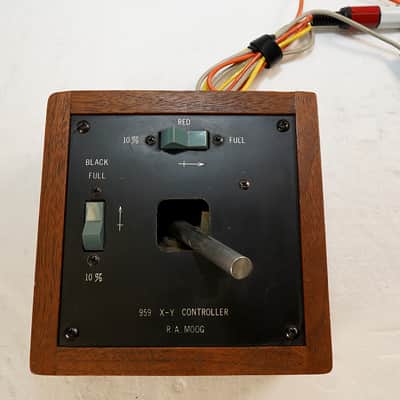

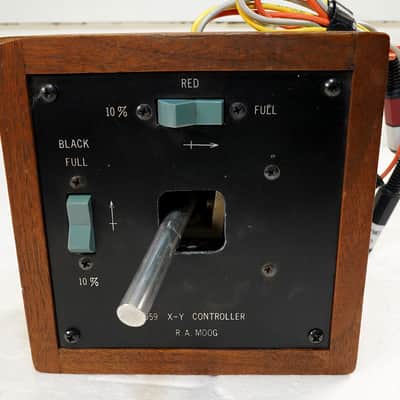

The Moog 959 X/Y Controller is a vintage analog joystick accessory built for Moog modular and portable synthesizer systems (such as the Minimoog). [1, 2, 3]Core Specifications

• Component Design: Consists of two audio-taper Allen-Bradley (AB) Type J 10k-ohm potentiometers coupled with voltage-limiting resistors.
• Mechanical Layout: The shafts of the two individual potentiometers are linked mechanically using a single L-bracket configuration.
• Travel Range: Approximately 15° of physical rotation/travel outward from the center position in each direction.
• Center Voltage: Outputs zero volts when the joystick is in the neutral/centered resting position.
• Range Switching: Includes built-in switches enabling users to toggle between a full control voltage (CV) range or a narrowed 10% range.
• Connectivity: Utilizes a 6-pin Cinch connector designed to interface directly with compatible vintage gear like the Minimoog.
• Power Requirements: Requires an external power source depending on the system implementation
