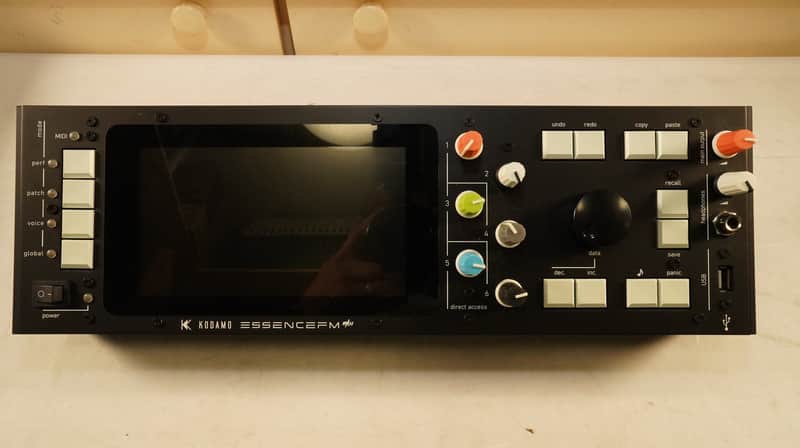

Kodamo Essence FM MKI Digital FM Synthesizer Module

in mint condition. Includes original box.

The Kodamo EssenceFM MK1 is a powerful 6-operator digital FM synthesizer module featuring a 7-inch color multitouch display, up to 300 voices of polyphony (via firmware updates), and 16-part multitimbrality. [1, 2, 3]Sound Engine & Synthesis

• Synthesis Type: 6-operator FM with in-house developed algorithms.
• Polyphony: Up to 300 voices (6-op FM mode).
• Multitimbrality: 16-part.
• Waveforms: 24 interpolated, band-limited/editable waveforms per voice with free drawing and wave import support.
• Envelopes: 6-point graphical envelopes with loop points, linear/exponential modes (14 per voice: 6x volume, 6x pitch, 1x filter, 1x pan).
• Filter: Resonant low-pass filter (1 per voice). [1, 2, 3]

Modulation & Control

• Modulation Matrix: 8-entry matrix with extensive sources and destinations.
• Microtuning: Custom scales support up to 32 notes per octave with Scala file import.
• Compatibility: DX7 SysEx import from USB drive or SysEx dumps. [1, 2]

Connections & Hardware

• Audio Outputs: 8 fully isolated 1/4" balanced audio outputs.
• Headphones: 1x 1/4" headphone output with separate volume control.
• MIDI: In, Out, Thru via 5-pin DIN, USB device, USB host, and RTP-Ethernet.
• Storage/USB: USB drive support for standalone MIDI file playback (.mid with GM support), direct digital .wav audio rendering (16/24-bit), and patch backup load/save.
• Display: 7-inch IPS color touchscreen with multitouch support.
• Dimensions & Weight: 133 x 482.6 x 58 mm; 1,750
