Ivy Pedals Filter IV v2 - NEW - SUNSET Red/Orange/Yellow 2026

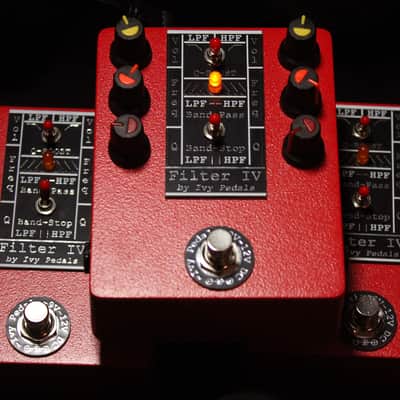

Ivy Pedals is back with a new Filter IV v2 / Version 2 analog multi-mode filter batch in the SUNSET colorway. This new version, v2, is the same Filter IV, but with a brand new control, the Q-Boost, which makes this pedal much more effective at low/very low frequencies, and can induce oscillation and noise at very high Frequency settings. I built a trio of these SUNSET Red/Orange/Yellow/Black Filter IV effects pedals in late August '26, and this is the third batch.

The Filter IV v2 is a versatile audio tool capable of a variety of filter types, shapes, and sounds. Featuring two analog filters (low-pass filter and high-pass filter, indeed the HPF-2 and LPF-2 circuits), each with independent level/frequency/resonance settings; all of your static filter needs and wants are met in one pedal.

Ivy Pedals Filter IV is capable of seven basic filter types: Low-Pass, High-Pass, Band-Pass, Band-Stop (Notch), Low-Shelf, High-Shelf, and Band-Shelf. These filters can be achieved by using the right settings for the center switch, frequency, and volume controls...

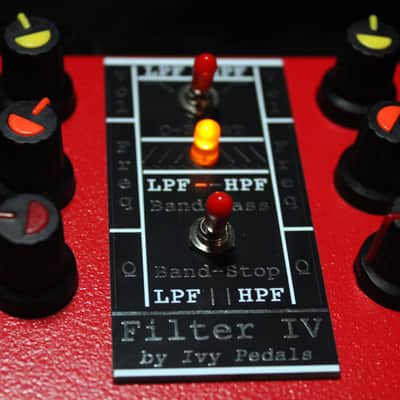

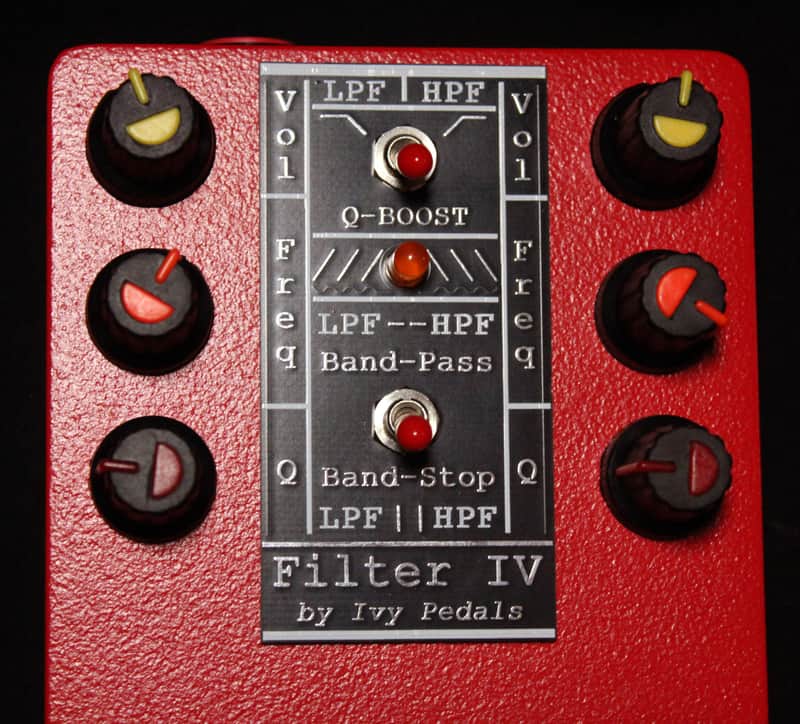

Controls:

SERIES/PARALLEL SWITCH - this switch puts the filters in series or parallel. In Series, you have a band-pass, and in parallel, you are mixing the filters together, which allows for shelving filters, using a single filter, a notch filter, and more.

Q-BOOST - increases Q by ~300% - DOWN=Off / MIDDLE=Both On / UP=HPF-ONLY [LPF-only mode can be accessed using the switch on the LPF Q control]

(1 for each for both the HPF and LPF)

Volume - Sets the level of the filter output. Mix level when in parallel.

Frequency - Sets the cutoff frequency of the filter, the point at which the filter starts. LPF is 'off' at 10 and HPF is 'off' at 0.

Q (Resonance) - Sets the 'quality factor' of the filter, adding a sharp peak near the cutoff frequency. Default to ~2, 10 is razor sharp and 0 is ultra-flat. LPF only Q-Boost can be accessed using the switch on the lower/left end LPF Q knob.

This pedal features true bypass switching and runs on a 9v-12v center negative DC power supply. Designed for use with guitar, bass, synthesizers, and more. Input on right, output on left!

MORE INFO:

The LPF cutoff on this specific unit ranges from ~260Hz - 23kHz

The HPF cutoff on this specific unit ranges from ~26Hz - 26kHz

These pedals are designed so that, while the HPF may restrict certain (5+ string) bass guitar frequencies, the LPF will pass that frequency range.

HOW TO MAKE THE FILTERS

(Set Q to 2 as default, adjust as desired, does not change filter type)

Band Pass = Switch up, volumes on, HPF freq. lower than LPF freq.

Band Stop (Notch) = Switch down, volumes on, HPF freq. higher than LPF freq.

Band Shelf (EQ) = Switch down, volumes on, HPF freq. lower than LPF freq.

Low-Pass = Switch down, HPF volume to zero/off

Low-Shelf = Switch Down, volumes on, HPF freq. at 0

High-Pass = Switch down, LPF volume to zero/off

High-Shelf = Switch Down, volumes on, LPF freq. at 10

FEEL FREE TO ASK ANY QUESTIONS - THIS IS A COMPLEX AND WEIRD EFFECTS PEDAL SO ASK ME ANYTHING
