[Included Accessories]

Power cable

Damper pedal

Case

[Features]

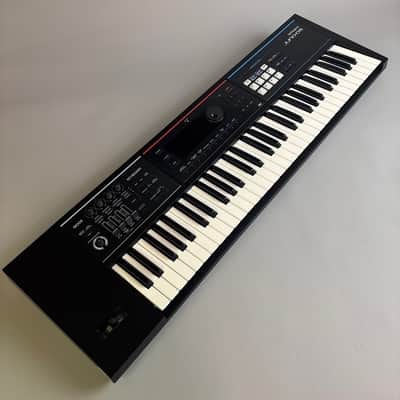

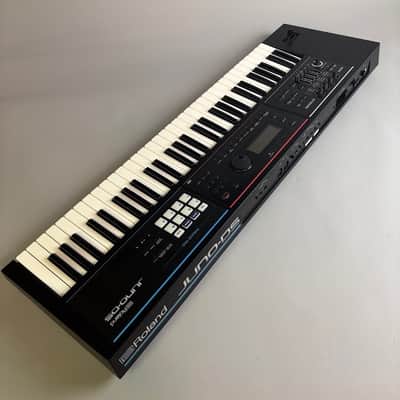

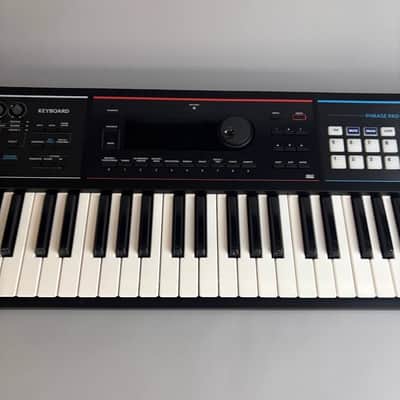

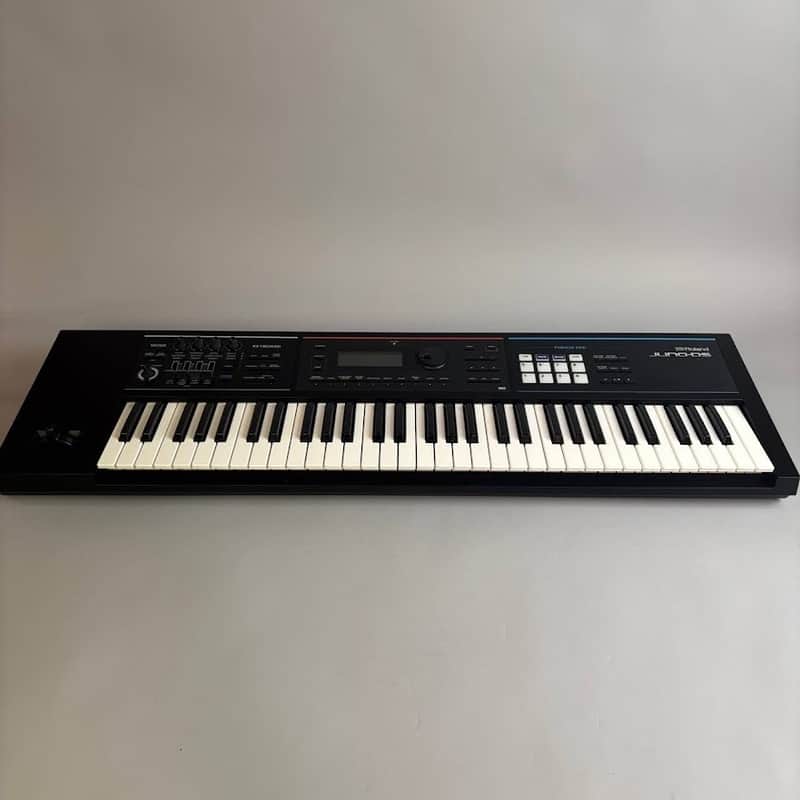

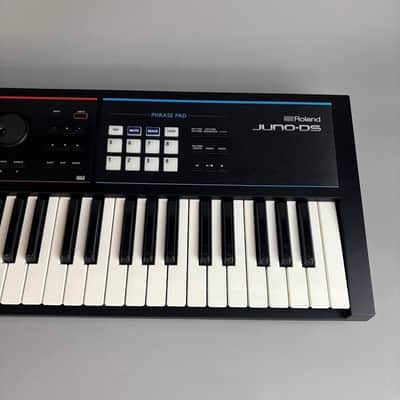

The JUNO-DS concept is defined by three keywords: "Easy," "Lightweight," and "Great Sound." Its lightweight, compact design, simple control panel, and battery-powered operation offer exceptional portability, allowing you to play anywhere. It supports keyboardists in any situation with a wide range of pro-quality sounds, phrase pads for playing back backing tracks, and a built-in sequencer to assist with composition and arranging. The lineup offers three models to suit different needs: 61-key and 76-key versions with synth-action keys, and an 88-key version with piano-touch keys.

[Main Specifications]

Keyboard: 61 keys (velocity-sensitive)

■ Sound Generator

Maximum Polyphony: 128 voices

Parts: 16 parts

Preset Memory: Patches: 1,200+, Drum Kits: 30+, Performances: 64 (*Includes GM2 sounds)

User Memory: Patches: 256, Drum Kits: 8, Performances: 128, Favorites: 100

Wave Expansion Slot: 1 slot (*The wave expansion slot is a rewritable internal waveform memory. You can download data from the "Axial" sound library site and write it to the internal wave memory (slot) via a USB flash drive.) Sample Import: File format: WAV (44.1 kHz, 16-bit)

Effects (Multi-effects): 3 systems, 80 types; Chorus: 3 types; Reverb: 5 types; Mic Input Reverb: 8 types

■ Audio File Player Section

Playable formats: Audio files: WAV, AIFF, MP3

■ Other

Rhythm Patterns: Presets: 30 groups x 8

Arpeggio: Presets: 128

Controllers: Pitch bend/modulation lever, Control knobs x 4, LEVEL sliders x 4, Multi-color pads x 8

Display: Graphic LCD 256 x 80 dots

External Memory: USB Memory (supports USB 2.0 Hi-Speed ​​flash memory)

Connectors: PEDAL HOLD jack, PEDAL CONTROL jack, MIC INPUT jack (1/4-inch phone type), EXT INPUT jack (stereo miniature phone type), OUTPUT jacks (L/MONO, R) (1/4-inch phone type), PHONES jack (stereo 1/4-inch phone type), MIDI connectors (IN, OUT), USB MEMORY port, USB COMPUTER port (supports USB MIDI/AUDIO), DC IN jack

Power Supply: DC 9V: AC adaptor or rechargeable Ni-MH batteries (AA size, sold separately) x 8

Current Draw: 600 mA; *Battery life during continuous use (varies depending on usage conditions): Rechargeable Ni-MH batteries: approx. 5 hours (using 1,900 mAh capacity), (approx. 4 hours when USB memory is connected); *Manganese or alkaline batteries cannot be used.

【Condition】

Fully functional

【Warranty】

3 months

*Warranty valid only in Japan
