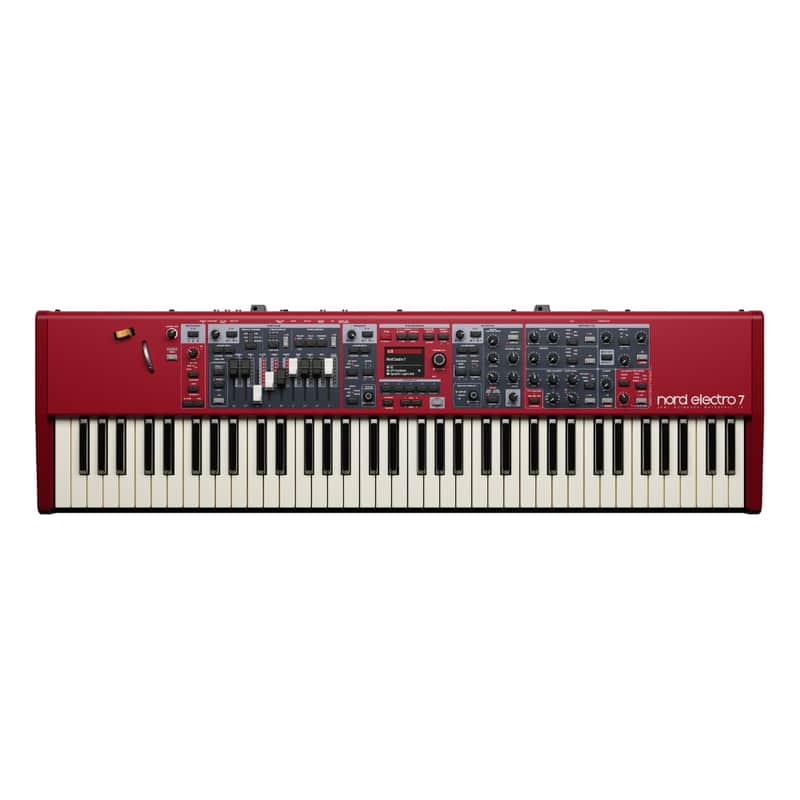

Nord Electro 7

The Nord Electro 7 elevates the Electro series with a powerful new Synth Section, dedicated per-section effects and a refined panel design with a high-resolution color display. Combining our latest piano features with the Organ and Rotary Speaker from the acclaimed Nord Organ 3, the Nord Electro 7 offers exceptional versatility in a lightweight, stage-ready instrument.

Highlight Features

General

• New panel design and new large color display

• Physical drawbars on all models

• Pitch Stick and Modulation Wheel on 73 and HP models

• HP model - new 73-key Kawai Triple Sensor Hammer Action keybed

• Expression Pedal Assign, enabling pedal control of Synth Filter and effect parameters

Organ Section

• B3, B3 Bass, Vox, Farfisa, Soft B3 and Pipe organs from Nord Organ 3

• Rotary Speaker emulation from the Nord Organ 3

• 3 mic positions for Rotary Speaker

• Physical drawbars with LEDs on all models

Piano Section

• Compatible with the Nord Piano Library

• Push Encoder for selecting Category and Sounds

• Dynamic Compression, Unison, Timbre

Effects Section

• Dedicated effects per section

• Rate and Amount for modulation effects

• New Spring reverb

• New amps (Brit and Suitcase)

• Global Reverb with per layer Send

Synth Section

• Samples, Analog waveforms and FM synthesis

• Push Encoder for selecting Category and Sound

• Vibrato with adjustable rate, amount and delay

• Mono, Legato and Glide

• Unison

• Low-pass filter with Resonance control

• FM Partial and FM Amount

• Dual envelope for Amp and Filter/FM

• Compatible with the Nord Sample Library

Organ Section

• B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe model with full polyphony

• B3 Percussion Controls with Poly option

• Vibrato/Chorus with B3 Deep mode

• Adjustable percussion level and percussion decay

• 3 Tonewheel modes: select the level of "vintage" desired

• 2 Organ manual Presets and Live Drawbars

• Physical drawbars with LED indicators

• Mount for Half-Moon Switch on Electro 7 61/73

Piano Section

• Categories: Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord and Misc/Mallet

• Pianos can be added, replaced and organized using the Nord Sound Manager

• String Resonance

• Timbre settings - individually tailored for acoustic, electric and clavinet sounds

• 3 KB Touch settings

• Dynamic Compression for even sound level without altering the tonal character

• Unison with 3 amount options

• 120 Voices polyphony for Piano Library sounds

Synth Section

• Sample, Analog and FM synthesis

• Samples can be added, replaced and organized using the Nord Sound Manager

• Preset library for Analog and FM sound

• Amp and Filter/FM ADR/ASR envelopes

• Velocity and Amount controls for Filter/FM envelope

• Low Pass Filter with Cutoff and Resonance controls for Analog and Sample sounds

• Amount and Partial controls for FM

• Mono, Legato and Glide options

• Unison with 3 amount options

• 3 Dynamics/amp velocity options

• Vibrato with adjustable rate, amount and delay

• Synth Vibrato button for real-time control

• 30+ voice polyphony

Rotary Speaker

• Rotary Speaker emulation from Nord Organ 3

• Close, Wide and XY Mic Position options

• Bass Wide (stereo) option

• Dedicated tube Drive control

• Fix Angle option for Stop position (user adjustable)

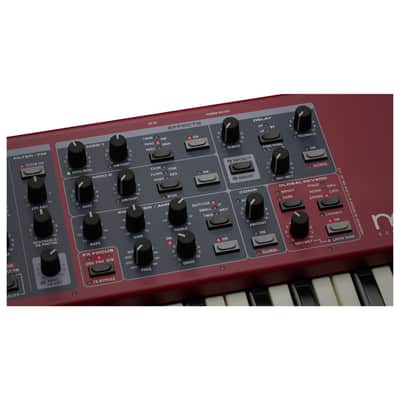

Effect Section

• Dedicated effects for Organ, Piano and Synth

• FX Focus with FX Bypass option

• Expression Pedal can be assigned to most effect parameters

Mod 1

• Pan1 (Soft), Pan2 (Hard), Tremolo, Wah and Ring Modulator

• Dedicated Rate and Amount Controls

Mod 2

• Phaser, Flanger, Chorus, Vibe and Ensemble

• Wide option for stereo width

• Dedicated Rate and Amount Controls

Equalizer/Amp Simulations

• Twin, Small, Suitcase, JC and Brit amp models

• Drive

• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation

Delay

• Tempo with Tap function

• Feedback and Dry/Wet controls

• Low Pass, High Pass and Band Pass feedback filter options

• Ping Pong with 3 amount options

• Analog mode

• Global mode

Compressor

• Amount control and Global option

Global Reverb

• Spring, Room, Stage, Hall and Cathedral reverb types

• Spring Reverb placed before Rotary Speaker

• Chorale option for all reverb types

• Bright/Dark options

• Dry/Wet control with Layer Send mode for individual control of reverb level per section

Connections

• 2 Audio outputs L & R - 1/4", 6.35 mm jacks, unbalanced

• 1 Monitor input - 1/8", 3.5 mm stereo jack

• 1 Headphone output - 1/4", 6.35 mm stereo jack

• 1 Expression pedal input - 1/4", 6.35 mm TRS stereo jack

• Sustain Pedal - 1/4", 6.35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals

• Rotary Control/Foot Switch - 1/4", 6.35 mm jack. Use a momentary pedal or a switch type pedal.

• MIDI In - 5 pin DIN connectors

• MIDI Out - 5 pin DIN connectors

• USB - type B connector for USB MIDI, Software Update and Sound Transfer

• Power Cord with IEC C14 connector

Included Accessories

• User Manual

• Power cord
