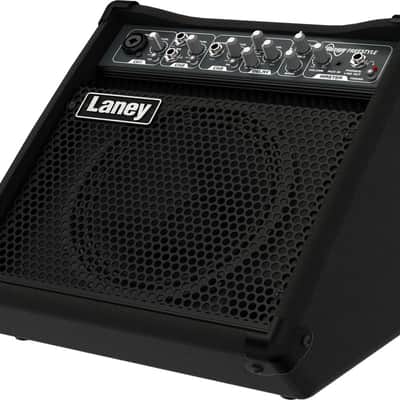

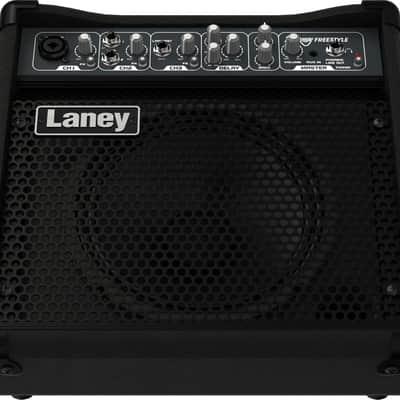

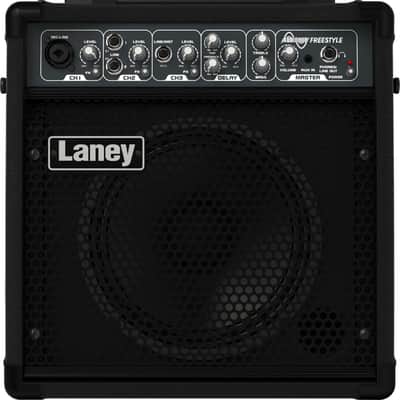

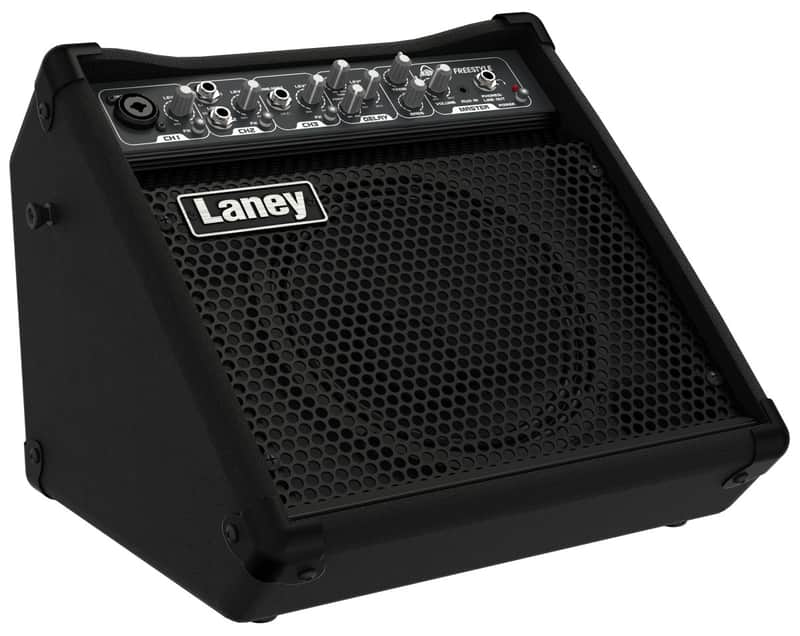

Laney Audiohub 3 Channel Speaker AH-FREESTYLE

The AH-FREESTYLE is a compact, portable amplification solution designed for acoustic performers, presenters, and small-ensemble applications. Its kickback combo design and lightweight 7 kg frame make it genuinely mobile, while the 5 W RMS output delivers sufficient volume for intimate venues and rehearsal spaces without dominating the room.

Connectivity & Signal Routing

Three independent channels accommodate diverse input types: a combi XLR/1/4" jack input (Channel 1), dual 1/4" jacks (Channel 2), a single 1/4" jack (Channel 3), and a 1/8" auxiliary input for backing tracks or playback devices. Each channel has dedicated gain control, and the 2-band EQ provides basic tone shaping across the master output.

Effects & Audio Processing

A delay effect with adjustable time, feedback, and level controls is assignable to each channel independently, enabling creative layering and texture-building. The 1/4" headphones/line output allows silent monitoring or direct connection to larger PA systems when needed.

Key Features

• Power rating: 5 W RMS
• Power supply: 12 V DC PSU supplied, or 6 x AA batteries
• Speaker: 1 x 8" coaxial driver
• Cabinet design: Kickback combo with kick-proof metal grill
• 3 channels with independent gain controls
• 2-band master EQ
• Delay effect with time, feedback, and level controls per channel
• Inputs: XLR/1/4" combi (Ch. 1), dual 1/4" jacks (Ch. 2), 1/4" jack (Ch. 3), 1/8" aux
• 1/4" headphones/line output
• Dimensions: 314 x 360 x 278 mm (12.3 x 14.1 x 10.9")
• Weight: 7 kg (15.4 lbs)
• Portable and AC/battery powered for venue flexibility

The AH-FREESTYLE combines straightforward multi-channel mixing with lightweight portability, making it an efficient choice for acoustic acts and small-scale sound reinforcement.
