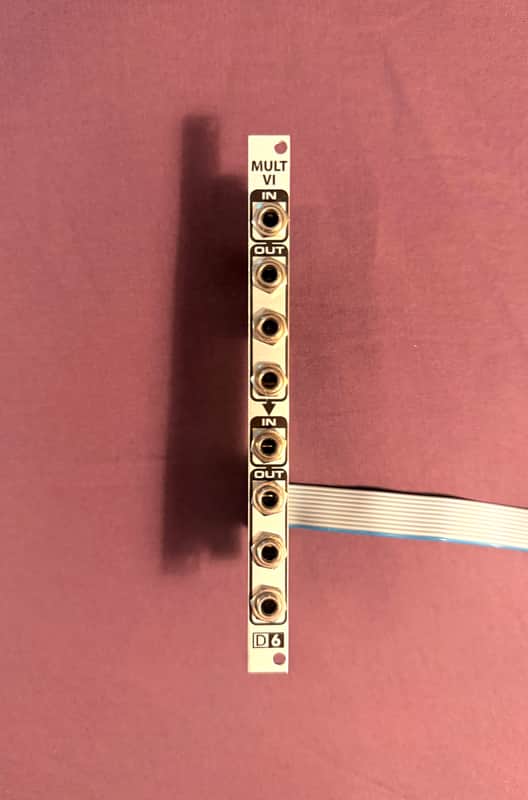

Division 6 MULTIPLICITY MULT VI 2015 - Aluminum

The Division 6 Multiplicity VI is a compact 2HP (or 3HP "Phat") Eurorack buffered multiple module that splits audio or control voltage signals up to six ways without any signal degradation or voltage drop. [1, 2, 3]Key Features

• Zero Signal Loss: Every output jack actively regenerates the input signal, preventing the tuning or voltage drops common in passive multiples. [1, 2]
• Cascaded Channels: Channels are chained together dynamically. Patching a signal into Input 1 routes it to all six outputs. Adding a cable to Input 2 breaks the chain, routing Signal 1 to the first three outputs and Signal 2 to the remaining three. [1]
• Rear Cascade Jacks: Includes rear-mounted cascade connections so multiple modules can link internally without using front panel patch cables (standard version). [1, 2]
• Power Specifications: Runs on standard +/- 12 VDC with reverse-polarity protection and a low power draw of 16mA / 16mA. [1]
