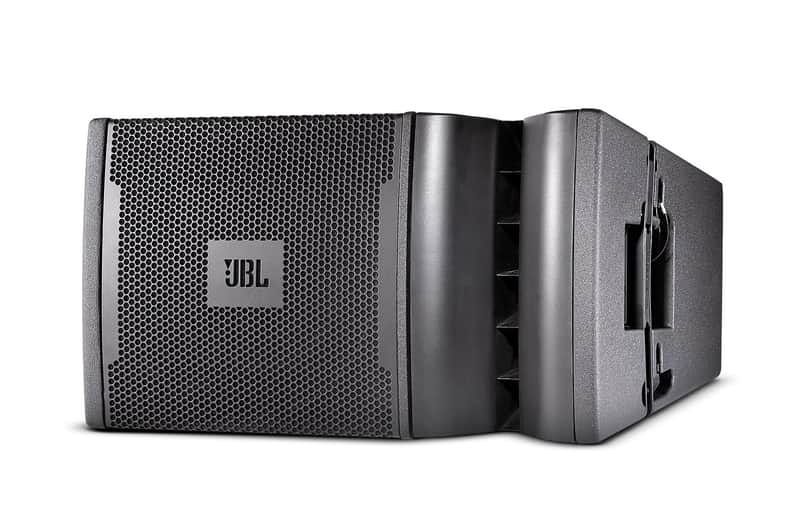

JBL VRX932LAP 12 in. Two-Way Powered Line Array Loudspeaker System

The VRX932LAP is a compact, self-powered line array speaker that delivers transparent, articulate output across demanding live and installed sound applications. Built around a 12-inch dual voice coil woofer and three 2408J annular ring diaphragm HF drivers, this system produces tight, controlled bass paired with pristine high-frequency definition that cuts through dense mixes without fatigue. The integrated 1750-watt peak amplification and DSP-based protection circuitry eliminate external processing complexity, making it an efficient choice for touring, festival, and permanent venue deployments.

Audio Performance & Coverage

Maximum peak output reaches 136 dB SPL at 1 meter, with a usable frequency response of 75 Hz – 20 kHz (±3 dB) and extended range to 57 Hz at –10 dB. The 15° vertical coverage pattern and array configuration selector with "array shading" capability allow precise tuning of vertical dispersion when units are flown or stacked, optimizing acoustic coverage for specific venue geometries and eliminating hot spots.

Power, Connectivity & Build

The system operates on 90–132 VAC or 216–264 VAC, 50/60 Hz with modest power draw (6A at 120V, 3A at 240V), and features Neutrik PowerCon (NAC 3MPA) AC input and XLR audio connectors with loop-through for easy daisy-chaining in larger arrays. Constructed from 25/15 mm birch plywood and weighing 52 lb (24 kg) with compact dimensions of 349 × 597 × 444 mm, the enclosure delivers durability and portability suitable for frequent transport and field deployment.

Key Features

• Frequency Response: 75 Hz – 20 kHz (±3 dB); Extended Range: 57 Hz – 20 kHz (–10 dB)
• Maximum Peak Output: 136 dB SPL at 1 meter
• Internal DPC-2 Amplification: 1750 Watts Peak, 875 Watts Continuous
• 3 × 2408J Annular Ring Diaphragm High-Frequency Drivers
• 12-inch (305 mm) Dual Voice Coil Low-Frequency Driver
• 15° Vertical Coverage with Array Configuration Selector and Array Shading
• Resident DSP with Mechanical and Thermal Protection Limiters
• Neutrik PowerCon (NAC 3MPA) AC Input; XLR Audio with Loop Through
• AC Operating Range: 90–132 VAC or 216–264 VAC, 50/60 Hz
• Birch Plywood Enclosure Construction (25/15 mm)
• Compact Dimensions: 349 × 597 × 444 mm; Net Weight: 52 lb (24 kg)
• Low Power Draw: 6A at 120V, 3A at 240V

The VRX932LAP combines high-output capability, integrated amplification, and intelligent array control in a package light enough to deploy flexibly yet rugged enough for repeated touring cycles.
