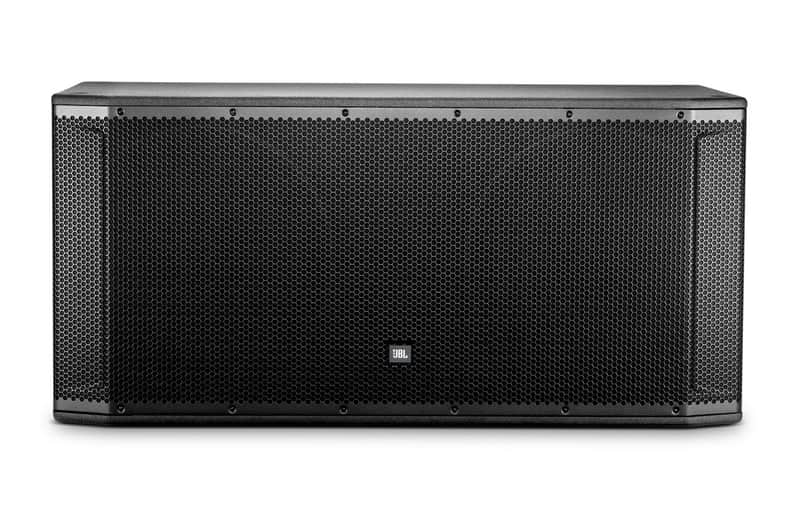

JBL SRX828SP 18" Dual Self-Powered Subwoofer System

The SRX828SP delivers authoritative low-end control with ergonomically designed handles that make repeated setup and repositioning straightforward and fatigue-free. Dual 2279F drivers with 3" voice coils and lower mass ferrite magnets ensure reduced weight without compromising power handling, distortion performance, or extended frequency response. This is a workhorse subwoofer engineered for touring rigs, rental inventories, and permanent installations where reliability and sonic precision matter.

Amplification & Power Performance

Crown DriveCore amplification supplies a commanding 2000W peak power rating (1000W per channel), with 1500W continuous output (750W per channel)—the highest power rating in its class. The 103dB signal-to-noise ratio delivers 141dB maximum SPL with exceptional headroom and minimal distortion across the entire operating bandwidth.

DSP Control & System Integration

A 400MHz Sharc DSP engine provides 20 parametric EQs, 2 seconds of delay, signal generators, input mixing, and amplifier monitoring alongside 50 user presets for rapid deployment across different venues. Full HiQnet network integration via Ethercon connectivity simplifies multi-unit configuration and remote control through Audio Architect, HiQnet Motion Control iOS app, and standalone Android/iOS applications.

Key Features

• Dual 2279F LF drivers with 3" voice coils and lower mass ferrite magnets
• 2000W peak power (1000W × 2), 1500W continuous (750W × 2)
• Crown DriveCore Class D amplification with 103dB signal-to-noise ratio
• 141dB maximum SPL output
• Frequency range (-10dB): 35Hz–120kHz; (-3dB): 29Hz–150kHz
• 80Hz crossover frequency
• 400MHz Sharc DSP with 20 PEQs, 2-second delay, signal generators, input mixing, amplifier monitoring, and 50 user presets
• Integrated LCD screen for fast setup and configuration
• HiQnet Ethercon connectivity for network-based control and configuration
• Neutrik 1/4–XLR input and Neutrik XLR output
• 18mm plywood enclosure with Obsidian Duraflex finish and 14-gauge perforated steel grille
• 8 ergonomic handles, M10 suspension points, indexed feet, and pole/tripod mount options
• AC power input 100V–240V 50/60Hz; consumption 2.2A (1/8 power), 5.6A (1/3 power) at 120V

The SRX828SP combines touring-grade durability, precision DSP control, and uncompromising low-frequency performance into a system that integrates seamlessly into large-scale sound installations and mobile rigs.
