JVC TT-71 Quartz Lock Direct Drive Motor Unit 1977-1984 Silver

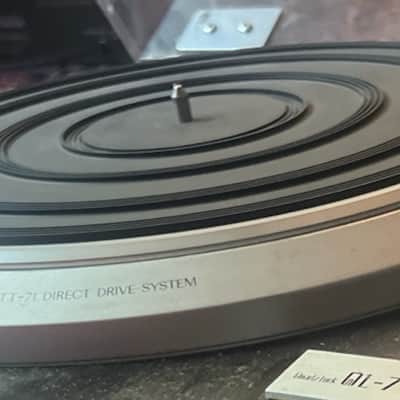

For sale is a JVC TT-71 Quartz Lock Direct Drive turntable motor unit, the precision standalone drive unit used in the JVC QL-7 and suitable for installation in an appropriate original or custom plinth.

This is the desirable 120V / 60Hz U.S. version—not a Japanese-market 100V unit—so no step-down transformer is required for normal use in the United States.

The TT-71 is in very good cosmetic condition for its age and is operating properly. Both 33⅓ and 45 RPM have been tested, the quartz-lock system operates properly, and speed remains stable. A video demonstrating operation will be attached.

IMPORTANT — MOTOR UNIT ONLY

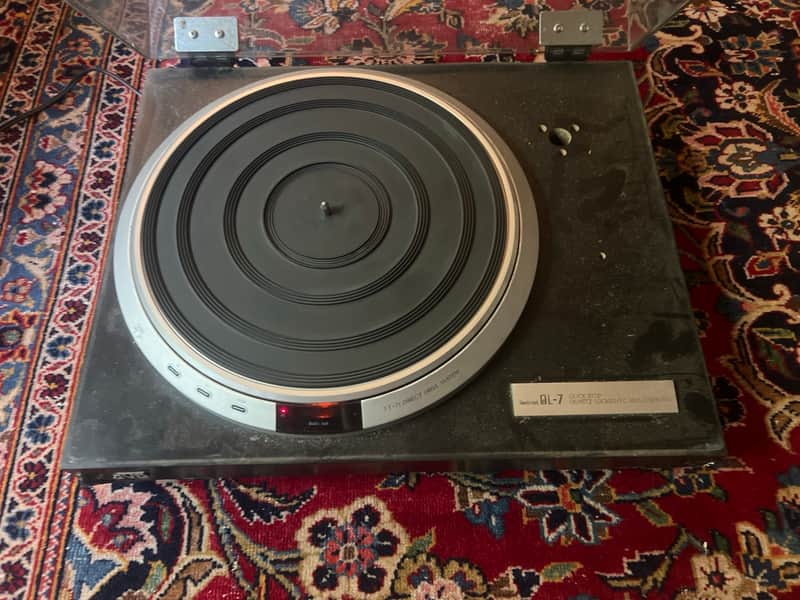

This listing is for the JVC TT-71 motor unit only. It is shown installed in its original JVC QL-7 plinth because I am keeping the motor safely mounted and protected until it is sold. The QL-7 plinth and dust cover shown in the photographs are NOT included and will be listed separately. No tonearm or cartridge is included. The TT-71 will be carefully removed from the plinth for shipment after the sale.

SPECIFICATIONS

• FG-detection quartz-lock DC servo direct drive

• Speeds: 33⅓ and 45 RPM

• Wow and flutter: 0.025% WRMS

• Rotating-part wow and flutter: 0.013%

• Signal-to-noise ratio: 73 dB (DIN-B)

• Rotational speed deviation: 0.002% or less

• Drift: 0.0001% per hour

• Temperature drift: 0.00003%/°C

• Starting time: 1.4 seconds or less at 33⅓ RPM

• Quick-stop time: within 1.6 seconds at 33⅓ RPM

• Mounting opening: 281 mm diameter

• Dimensions: approximately 350 × 120 × 350 mm

• Weight: approximately 6.2 kg / 13.7 lb

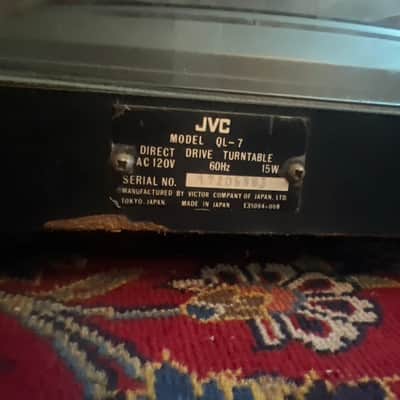

• Power: AC 120V, 60Hz — U.S. version

Please review the photographs and operation video carefully. The photographs show the actual TT-71 being offered. The unit will be carefully packed for shipment.

Again, this sale is for the TT-71 motor unit only. The plinth, dust cover, tonearm, and cartridge are not included.

PACKING AND SHIPPING

The $75 flat shipping charge includes new packing materials and insured shipping within the Continental U.S. Local pickup is also available.
